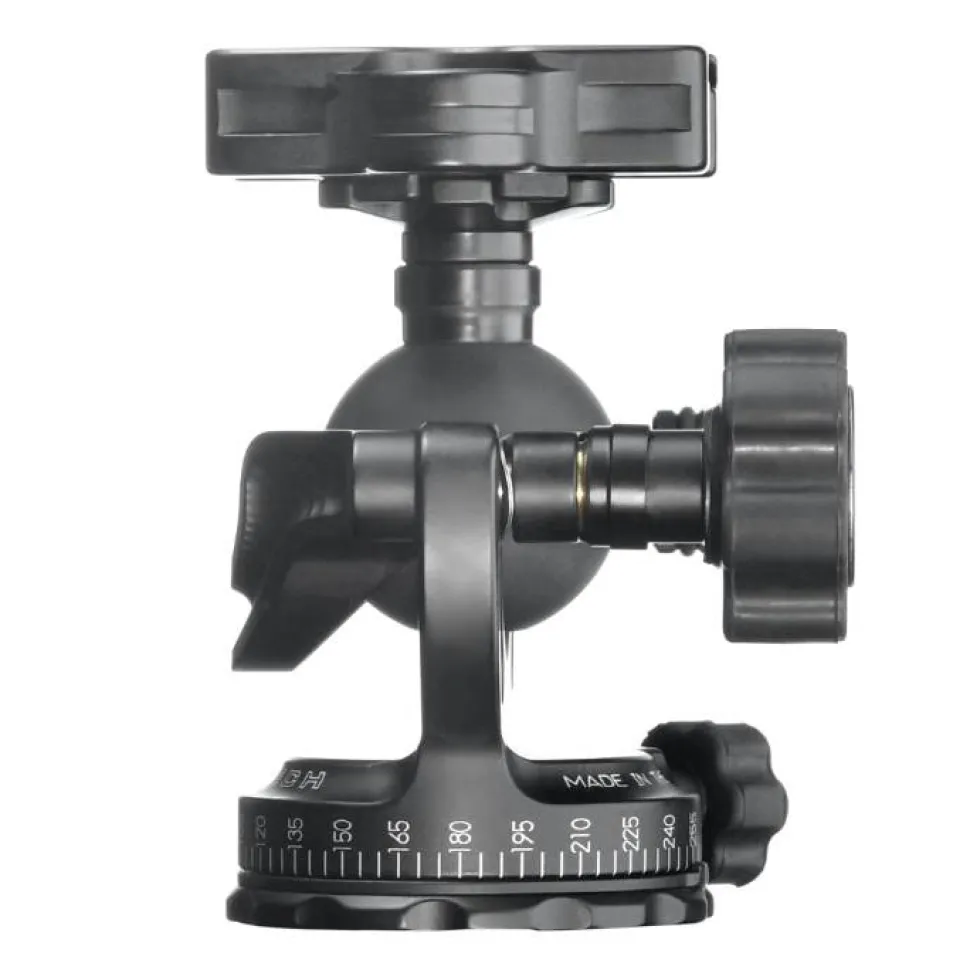

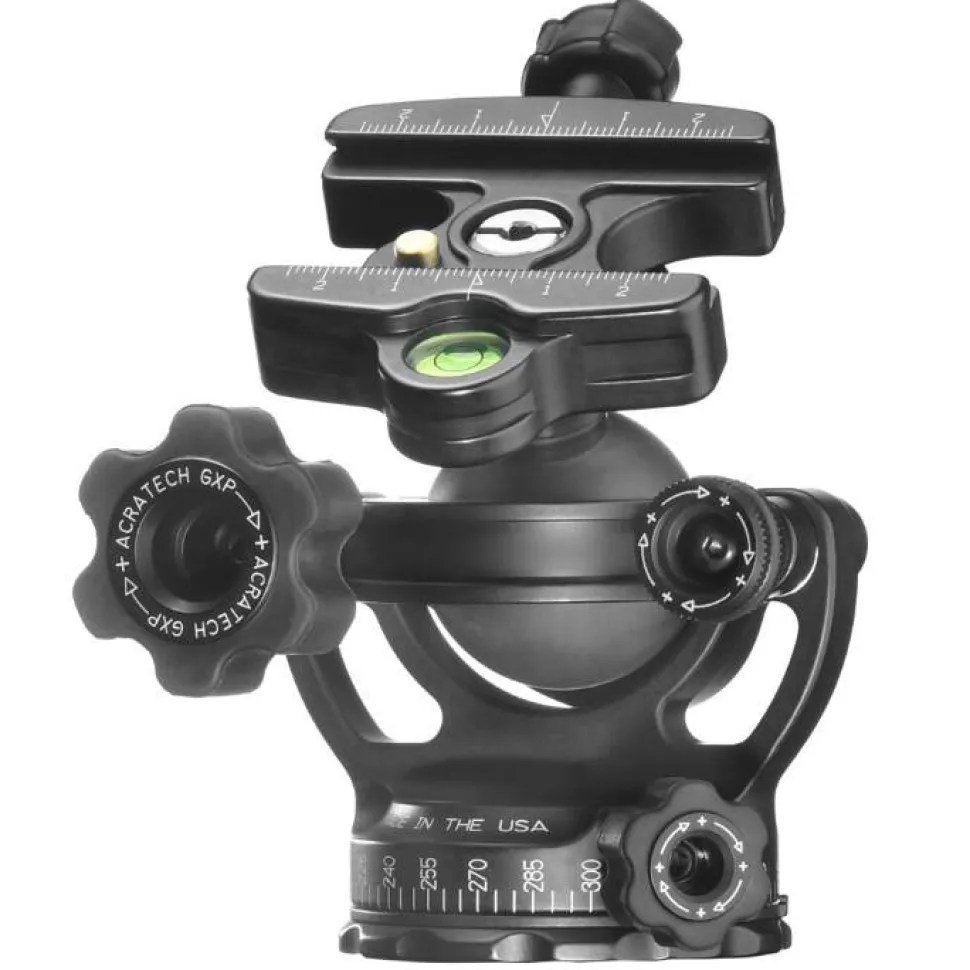

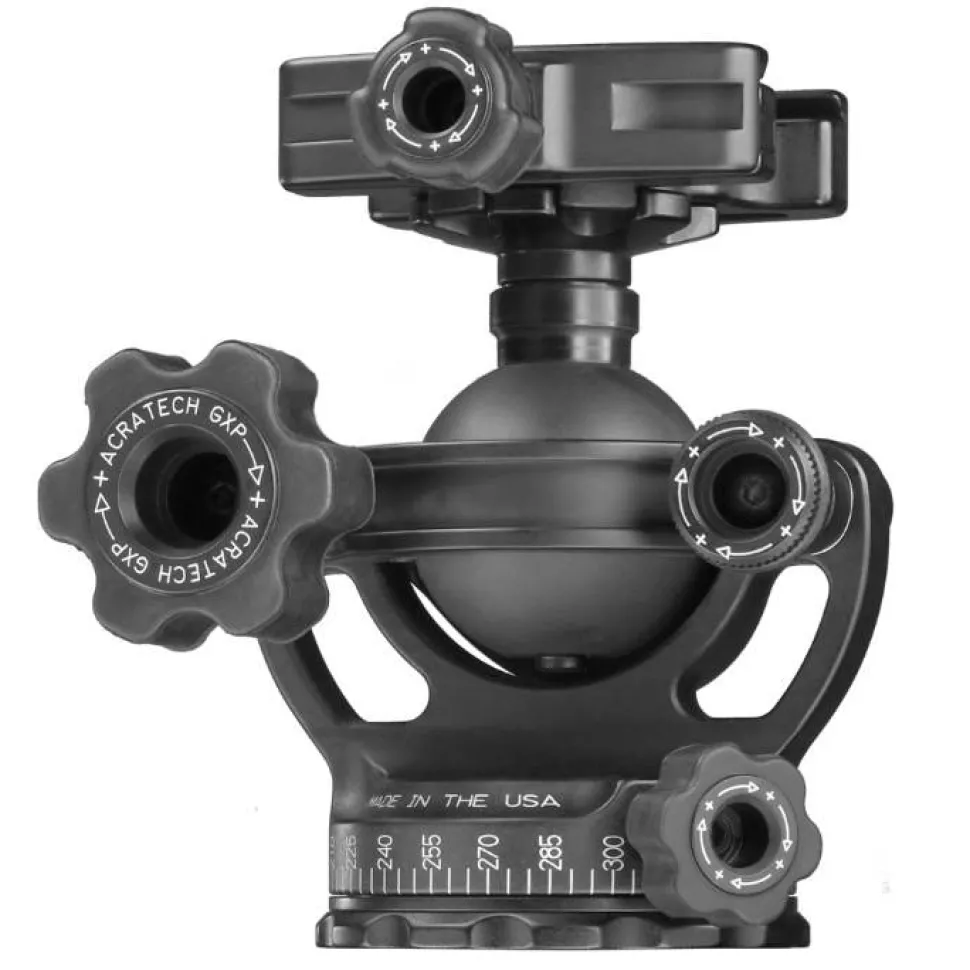

Acratech GXP Ballhead + Standard Clamp 1205

The Acratech GP Ballhead has long been recognised as a leader in its class.



The GXP has a wide range of significant new features and it continues the tradition of Acratech’s world-class quality.

New Features of the GXP:

•     Innovative form-follows-function design.
•     Solidly supports an impressive 50.lbs. (double the capacity of the GP)
•     The GXP only weighs 1.lb bearing a 50:1 load ratio.
•     Large, easy to tighten, high torque lock knob is easy to tighten even with heavy winter gloves on.
•     New extra fine tension adjustment.
•     The unique, panoramic adjustable zero pointer makes it easy to return to your starting point when you are shooting a sequence of images.
•     The quick release clamp has deep side notches for more clearance with other manufacturers stop screws.
•     The level on the quick release clamp is clearly visible even with your camera attached to the clamp.
•     The quick release clamp jaws are more pointed to be more compatible with some manufactures quick release plates with less pointed dovetails.
•     The locking lever clamp has a safety zone so the first 25% of the levers motion will not allow your camera to release.

Features of the GXP that carry on the GP tradition:

•     The patented gimbal feature makes it quick and easy to track follow moving objects with ease.
•     With GPX in panoramic mode you can use the ball to level the panning surface and you can do accurate stitched panoramic images without a levelling base.
•     Open structure dirt and moisture falls through instead of getting trapped inside like a conventional ball-head.
•     Precision CNC machined from aircraft quality aluminium and stainless steel.
•     Made in the USA in Acratech’s Pomona, California facility.
•     10 Year warranty.
•     Fits all Arca-Swiss compatible quick release plates.
•     Fits all standard tripods (1/4-20 and 3/8-16 threads)
•     Beautiful satin black anodised finish
•     Solid precision feel
•     The knobs are secured so they cannot vibrate loose and fall off.
•     Oil-less and greaseless ball will not attract or hold dirt and debris.

Specifications:

•     Max Weight Load: 50lbs (22.6kg)
•     Ball Diameter: 1.5” (38mm)
•     Tripod Thread: 3/8-16 (includes 1/4-20 reducer bushing)
•     Height: 4.2” (106mm)
•     Length: 3.62” (92mm)
•     Width: 3.17” (81mm)
•     Base Diameter: 2.375” (60mm)
•     Weight: 1 lbs. (.45kg)
