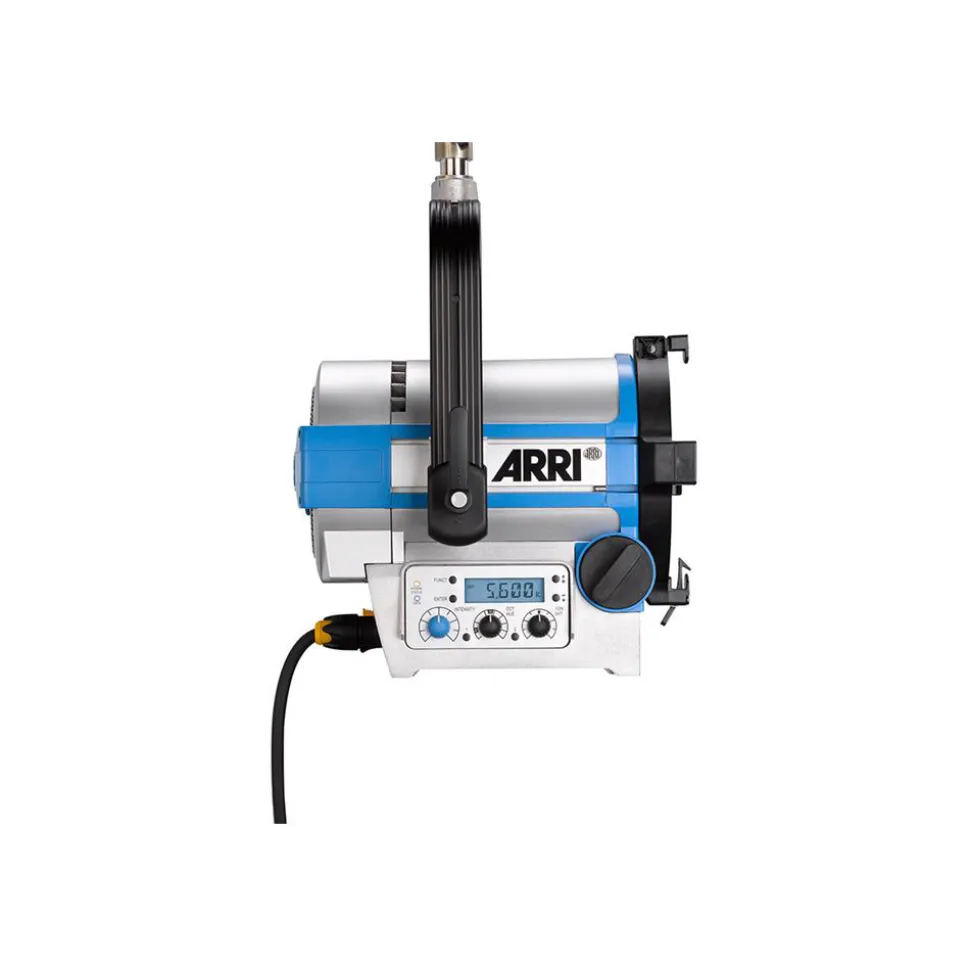

ARRI L5-C 5 LED Fresnel Light (Stand Mount)

The L-Series is the first LED fixture to truly incorporate the Fresnel characteristics of continuous focusability from spot to flood and a smooth, homogenous light field. The L-Series takes full advantage of LED technology and allows for complete control over the color and intensity of light. Light emitted from the L7 is specifically calibrated for optimal reproduction on broadcast and digital cinema camera s, ensuring pleasing skin tones and vividly rendered colors. Constructed to be robust and ergonomic, the L7 meets the quality and design standard for which ARRI is known.

At the heart of the L-Series are a few core concepts: tuneability, color fidelity, high build quality and ease of use. Three simple knobs permit the brightness, color temperature and green/magenta point to be fine-tuned, while a focus knob on the side of each fixture allows for smooth adjustment of the beam spread, just like conventional sources.

Color temperature, tint and hue can be continuously adjusted from 2,800 K to 10,000K, between full plus or minus green and RGBW colors.

The L5 addition to the L-Series perfectly complements the L7, allowing for more mobile lighting and a wider range of power classes for television studios. Its compact size and low weight allow the L5 to be rigged in tight places and hung from low ceilings. The L5 is also ideal for cramped location shoots and interview setups. Low heat allows safer and more comfortable shooting conditions. This versatility and superb light quality make the L5 a highly anticipated addition to the award-winning L-Series family.

New features available on the L5 include a powerCON power connector and an on-board battery input that permits industry-standard batteries to power the L5 without any sacrifice in terms of features or light output. The resulting increase in portability opens up whole new application areas, giving productions with the L5 the tremendous freedom to move and work fast.

The L5 is approximately 45 % brighter than a 300 W tungsten Fresnel, but only consumes 115 watts. When compared to the L7, the L5 is half the weight and size.

STAND-MOUNT
versions include the following base configuration: 16 mm / 28 mm Combo Pin (Baby 5/8″ / Junior 1-1/8″ Combo Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.

Optical System: Focusable Fresnel
Lens Diameter: 127 mm / 5″
Beam Angle: 14° to 50° (Half Peak Angle)
Mounting: 16 mm / 28 mm Combo Pin (Baby 5/8″ / Junior 1-1/8″ Combo Pin)
Tilt Angle: +/- 90°
Power Supply Range: 90 to 250 V AC, 50/60 Hz
Power Consumption: 115 W Nominal
Battery Connector: 4-Pin XLR Connector (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range: 23 to 36 V DC
White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light: Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition: CRI Average >94, TLCI Average >90
Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming: 0 to 100 % continuous
Control: 5-Pin DMX In and Through, On-Board Controller, Mini-USB
Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM Commands
Mini-USB Interface: DMX Setup, Fixture Status and Firmware Upgrade Through PC Software
Housing Color: Blue/Silver, Black
Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
Protection Class / IP Rating: I / IP20
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Lifetime: +/- 5 %
