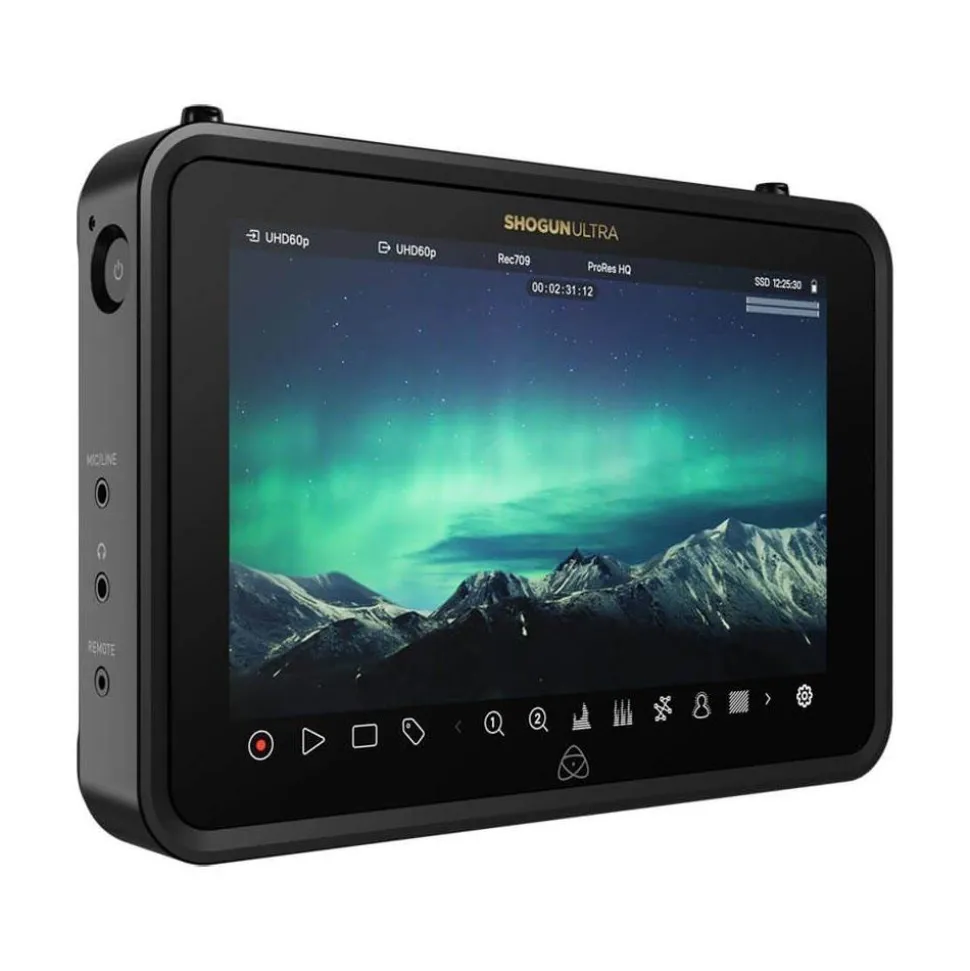

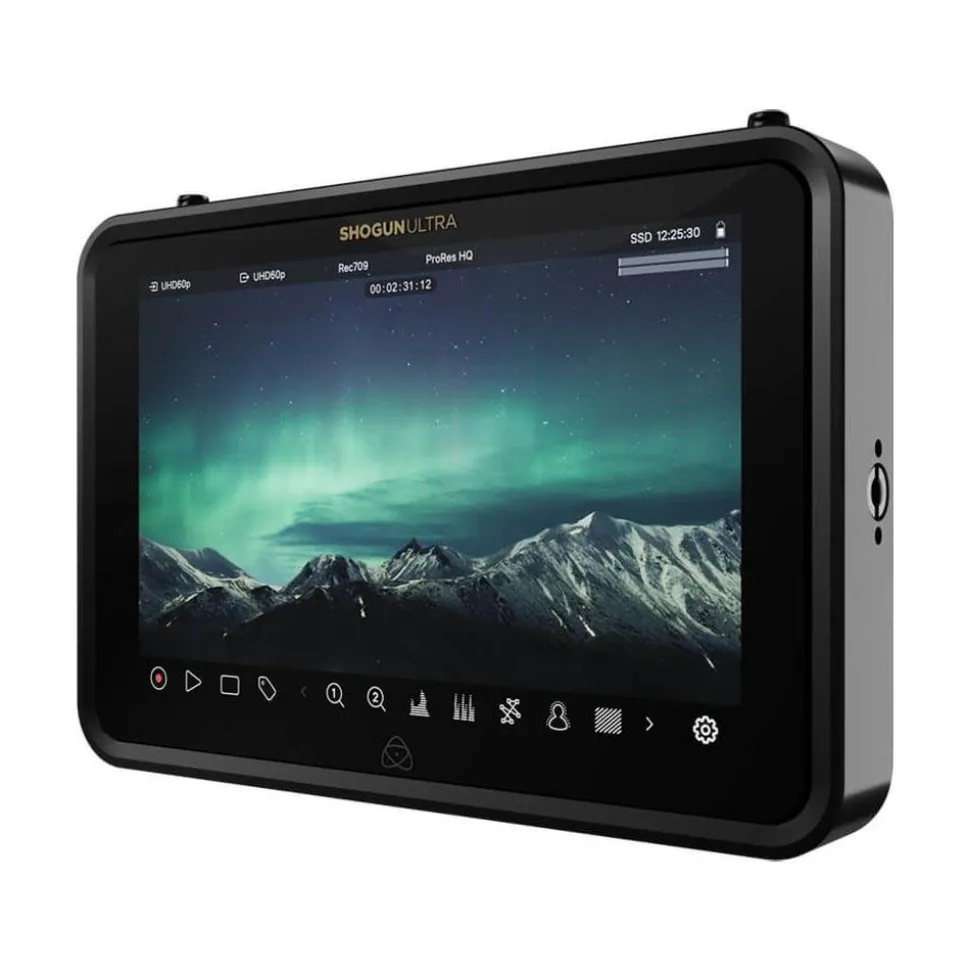

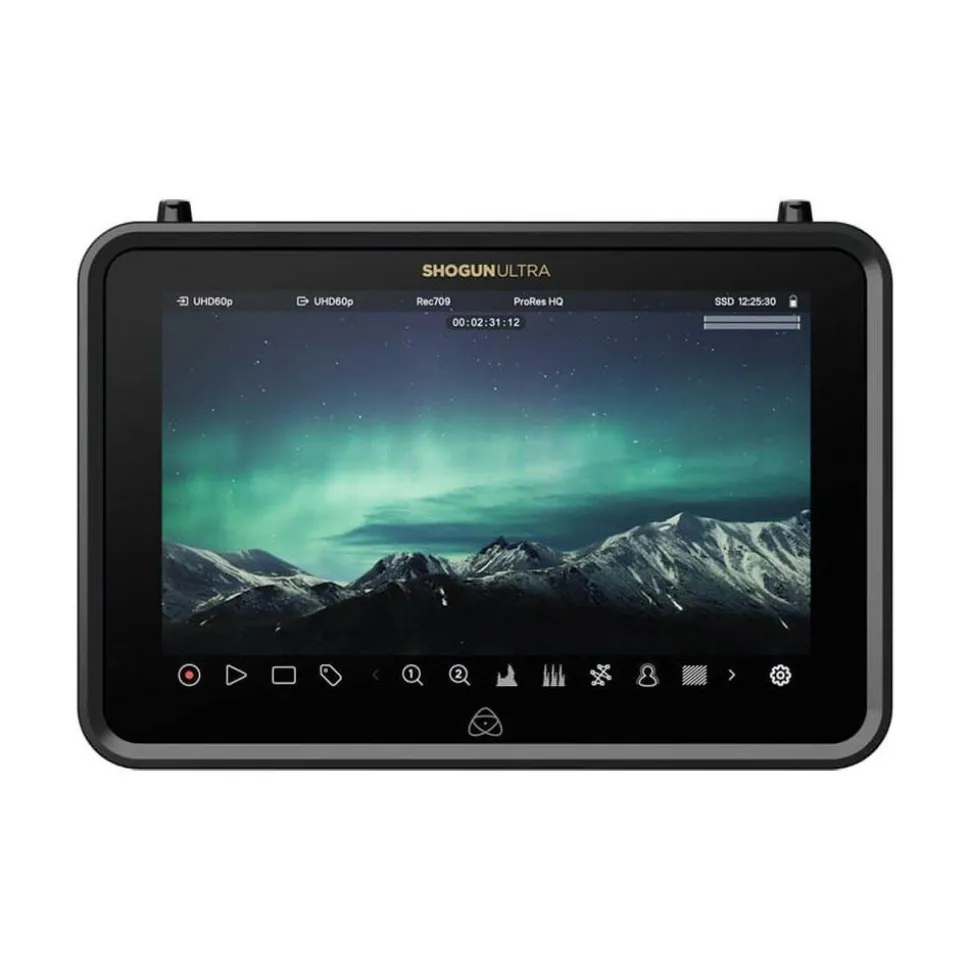

Atomos Shogun Ultra 7-inch Monitor Recorder

• Ultra bright daylight viewable 2000-nit screen in a portable monitor recorder packed full of cloud and local features
• Streamline your workflow by recording ProRes RAW up to 4K 60p whilst simultaneously recording HD 60p to H.265
• Includes multiple free codecs with Apple ProRes, ProRes RAW, H.265, DNx (QuickTime) and DNx (MXF) later in 2023
• The ultimate Shogun with 12G-SDI input/output and SDI RAW up to 4Kp120 for most mirrorless and pro cinema cameras
• Shogun Ultra allows you to automatically match filenames, timecode and record triggers from ARRI, Canon, RED and Sony

Key Features

• 7-inch monitor-recorder with integrated networking for cloud workflows
• Ideal for HDMI and SDI
• Enhanced camera-to-cloud connectivity
• New 4K camera to cloud mode
• Cross-convert between HDMI and SDI
• Ultra-fast and stable WiFI 6E
• 2000-nits screen for daylight viewing
• 12G-SDI input/output
• SDI RAW at up to 4Kp120
• Record ProRes RAW up to 4K 60p whilst simultaneously recording HD 60p to H.265
• Supports live streaming to Facebook Live, Twitch, YouTube and more

Atomos Shogun Ultra 7-inch Monitor Recorder Summary

Designed to meet the needs of creators using HDMI or SDI cameras and cloud workflows, the Atomos Shogun Ultra7-inch Monitor Recorder is much more than simply a super-bright 7-inch screen. This compact  from market leaders  is a complete toolbox in one with all the connectivity ever needed and support for local and cloud workflows.

It provides the ability to record in more codecs and frame rates than ever before, which include 8K ProRes RAW, ProRes, DNxHD and H.265, as well as Dual 4Kp60 ProRes RAW and proxy recording for Cloud.

You can share the screen over the internet, live stream and enjoy fast and stable Wi-Fi 6E and GigE connectivity. The SDI out provides comprehensive SDIHDMI cross-conversion, and Atomos Shogun Ultra also supports multiple power options, with an NP battery slot and separate 2.1mm locking jack DC input.

You can even control Shogun Ultra remotely over Bluetooth with AtomRemote App, which is also one of the easiest and most affordable ways to stream, transfer and edit in the cloud. If you don’t need all of the features the standard  could be the perfect device, with 6K ProRes RAW, ProRes, DNxHD and H.265.

Atomos Shogun Ultra 7-inch Monitor Recorder in More Detail

SHOWTIME

Shogun Ultra is your gateway to amazingly fast and productive cloud workflows. So much more than a super-bright monitor recorder, it takes you to new heights of productivity and collaborative creativity. Work faster, work better.

ALL THE CONNECTIVITY YOU’LL EVER NEED

Solid Internet
Network connectivity with Wi-Fi 6E and GigE.
Wireless Sync
Long-range robust wireless sync and control with AirGlu RF.
Third-party Sync
Third-party sync and app control with Bluetooth AirGlu BT.
USB-C Port
For future updates.
More Power Options
Multiple power options with NP battery slot and separate 2.1mm locking jack DC input.
SDI Out
Separate SDI Out for comprehensive SDIHDMI cross-conversion.

SUPER BRIGHT SCREEN

Shogun Ultra’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.

CHOOSE YOUR WORKFLOW

Shogun Ultra has two faces: Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G-SDI. Turn on its wireless and network capabilities, and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish directly to social media within minutes of shooting the action.

ENHANCE YOUR CAMERA

Shogun Ultra can capture RAW inputs up to 8K at 30fps, 6K at 60fps and 4K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats. With a super bright 2000nit 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun Ultra has a new operating system and user interface.

THE ULTIMATE SHOGUN

In addition to network and SDI connectivity, you get access to super-efficient cloud workflows, and you can cross-convert between HDMI and SDI. Take advantage of the new, ultra-fast and reliable WiFI 6E for more stable connections. Shogun Ultra, which can be remote-controlled over Bluetooth with AtomRemote App, is the most practical and affordable way to stream, transfer and edit in the cloud.

2000 nits of brilliance
12G-SDI input/output
SDI RAW up to 4Kp120

CAPTURE SIMULTANEOUSLY UP TO 4K 60P PRORES RAW AND HD 60P H.265

Record full-quality files in ProRes RAW up to 4K 60p while at the same time recording HD 60p to H.265. It’s the best of both worlds. Boost your productivity by storing your definitive copy in ProRes RAW ready for your post-production workflow, and use your H.265 copy for your camera to cloud activities.

PUBLISH FROM THE CLOUD

Record higher-quality media for instant publishing. The new 4K camera to cloud mode lets you record and upload much higher quality H.265 video with higher framerates.* H.265 files are half the size of H.264 media. They’re small enough for camera-to-cloud workflows but more than good enough for immediate use on social media, sports reporting or news gathering. It’s the fastest way to get your video in front of your viewers (requires Atomos Cloud Studio (ACS) subscription). Also a super useful mode to record proxies at up to 4K 60p to match a original in-camera (OCF) file.
*Classic or Premium Atomos Cloud Studio subscription required.

MULTIPLE CODECS

The new Shogun line includes these codecs free of charge, so you can choose the ideal codec for your projects.

Apple ProRes
Apple ProRes RAW
H.265
DNx (QuickTime)
DNx (MXF)* coming later in 2023

Apple ProRes is pre-activated to use out of the box, so you can start shooting immediately. To activate H.265 and DNx, visit my.atomos.com to register your Shogun and follow the simple online instructions.

To activate Apple ProRes RAW, you need to go to my.atomos.com. There is a small additional step to get an activation token to access the codec for free. Simply plug in your compatible RAW camera to complete the process. You only need to do it once to unlock this super-flexible and unique codec without time restrictions.

NDI HD AND 4K TX

4K TX is a paid option.

NDI is a way to send video over ordinary networks (including Wi-Fi and mobile) in high quality but with remarkably low bandwidth requirements. It’s increasingly used in live production, and now your Shogun Ultra can take part in an NDI environment. The NDI TX option turns your Shogun Ultra into an NDI source, visible to all other authorized devices on the network.

ORIGINAL CAMERA FILENAMES OVER SDI

Automatically match filenames, timecode and record triggers from ARRI, Canon, RED and Sony cameras. Previously, camera to cloud relied on matching filenames with hero and proxy files made by AtomOS. Now, thanks to cooperation with ARRI, Canon, RED ?and Sony, Atomos C2C files are matched back to the original in-camera (OCF) filenames. This gives a joined-up process when conforming C2C or SSD proxy files ?in the edit with camera files. On camera or on Atomos: it’s your choice.

ANY CAMERA, ANY FORMAT. ANYWHERE.

Pair Shogun Ultra equally well using SDI or HDMI with smaller cameras as part of a minimal setup or with full-size camera rigs on large-scale productions. Shogun Ultra is made from precision materials with a solid aluminium frame, crafted for maximum durability. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Shogun Ultra includes anti-rotational ? – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.

STREAM FROM ANYWHERE

Shogun Ultra supports live streaming to a range of online services including acebook Live, Twitch, YouTube, and custom RTMP/S. With Wi-Fi 6E, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, Shogun CONNECT helps filmmakers, streamers, and video content producers reach their audience from anywhere.

Key Features

Support for more camera models with 12G-SDI
SDI input to HDMI output conversion
Wi-Fi 6E and 1GbE Ethernet
Stream to Facebook, Twitch, YouTube, and custom RTMP/S services
Share media with camera to cloud (C2C) and Atomos Edit
Live stream an HDMI or SDI source into Atomos Live Production or RemoteView
Synchronize cameras, audio recorders, and applications with AirGlu™
Support for AtomRemote app
Add major features without adding significantly to the overall footprint

A COMPLETE MONITORING TOOLBOX

Shogun Ultra includes comprehensive monitoring tools to help you get the perfect composition and exposure in every shot. Easy-to-use but powerful tools include waveform, focus peaking, multiple false colour tools, zoom controls, custom LUTs, and frame guides. Shogun’s new AtomOS 11 software is simple to update with new features and releases – as well as support for new cameras.

Waveform
Evaluate the brightness of your image, regardless of the colour
Aspect Ratios
Easily switch between aspect ratio guides for instant and accurate framing
Anamorphic De-squeeze
Compensate for non-spherical anamorphic lenses to show a visually corrected wide-screen image
False colour
New with AtomOS 11: ARRI False Colour and EL ZONE System
Custom Frame Guides
Frame shots with confidence, for social media or cinematic productions

A HIGHLY SECURE MOUNT

From individuals to large-scale cinema productions, Shogun Ultra has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun Ultra to remain in place at all times.

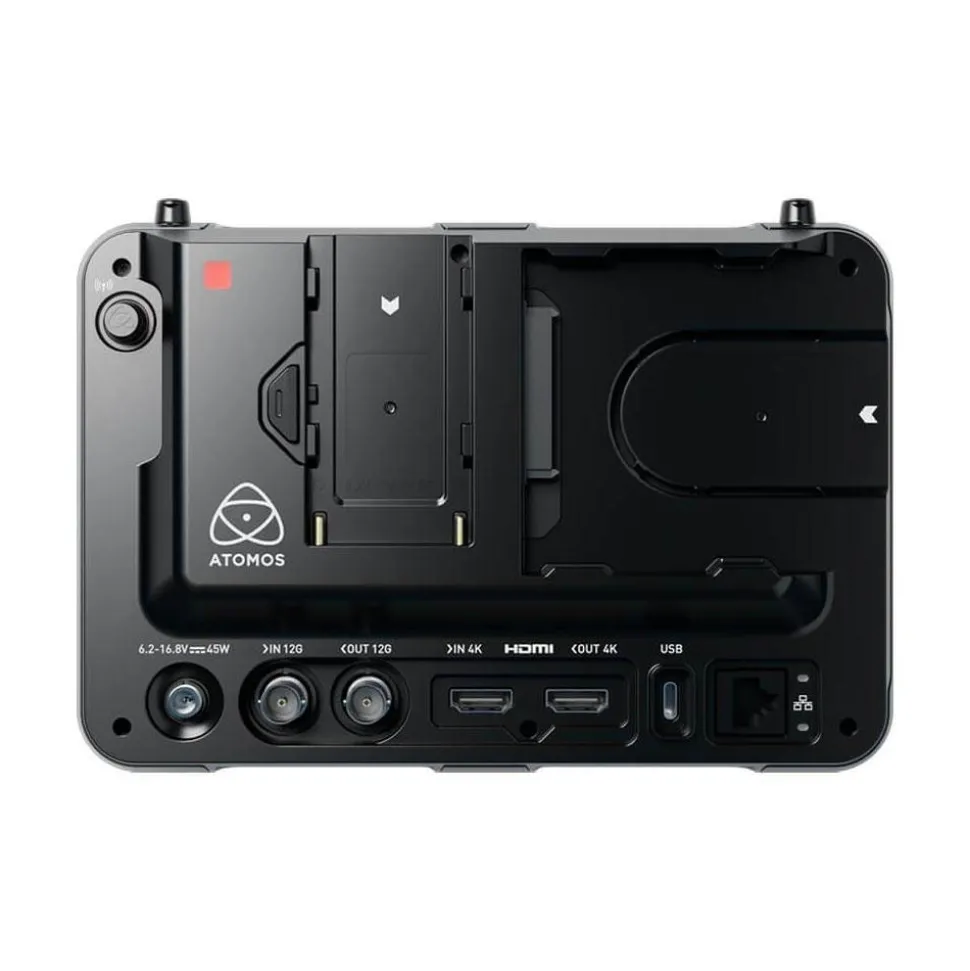

CONNECTIVITY. WE’VE GOT YOU COVERED.

Shogun’s comprehensive range of inputs and outputs lets you capture the highest quality video from the widest range of cameras, and connects you to the cloud, for new, ultra-speedy and productive workflows.

Media Slot
Compatible with Master Caddy II & III media and AtomX SSDmini
Tally Light
The red Tally Light on the rear of the unit indicates active recording. Can be turned off in the menu options.
HDMI 2.0 In/Out
HDMI Input supports inputs up to 4Kp60 video and 6Kp30 RAW. HDMI Output can loop-out up to 4Kp60 video in Rec. & Playback mode.
RJ45 Ethernet Port
1Gb Ethernet for a high-speed & robust hardwired network connection.
DC Power Connector
Connect the USB-C PD to DC Adapter Cable for mains power
12G-SDI In/Out
Connectors are 12G-SDI compliant and backwards compatible.
Battery Slot
Attach NP-F/L-Series type batteries to supply power in the field.
RF Antenna
Connect the supplied RF antenna for wireless AirGlu functionality.
USB-C
For expanded functionality in the future.
WiFi Antennas
Connect the supplied WiFi antennas in this position.
Battery Release
Press and slide away from unit to remove.

GET MORE FROM YOUR VIDEO

The AtomRemote app for iOS and macOS has an array of controls for Shogun Ultra. It lets you configure and control your Shogun from up to 15 meters away via Bluetooth LE while you define camera connections, select Gamma/EOTF and adjust Gamut settings. AtomRemote can control playback, select monitoring modes, apply custom 3D LUTs, and view image analysis tools, including exposure and focus. Output controls include options for 4K to HD, LUT preview and HDR output.

Resolution Frame Rate
4K DCI 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p – HFR 100 / 120 via RAW over HDMI & SDI on selected cameras
4K UHD 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p
FHD 1920 x 1080
Progressive 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60 / 100 / 120p
FHD 1920 x 1080
PsF Converted to P and looped out PsF
FHD 1920 x 1080
Interlaced 50i / 60i
1280 x 720p 50 / 59.94 / 60p

PERFECTLY SYNCHRONISED

Atomos AirGlu™ is included with the Shogun Ultra and adds wireless timecode, sync, and control technology. AirGlu locks multiple Atomos devices or compatible cameras, audio recorders and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information to the server unit. Any AirGlu device can act as the server unit, which means you’ll no longer need a huge budget or get involved in time-consuming post-production workflows to produce perfectly synchronized, multi-camera video. AirGlu BT is the Bluetooth timecode sync protocol adopted by many camera and audio manufacturers, and AirGlu RF is the long-range sync and control protocol between Atomos connect products.

VERSATILITY AND POWER

With flexible options for industry standard formats and RAW codecs, Shogun Ultra records visually lossless “hero” files that are ready for editing and proxy/sharable files that look great but are quick to upload.

Shogun is designed to be versatile and meet the requirements of your workflow. Atomos understands the value in being able to select the format, quality, resolution, frame rate, or file size that best suits the needs of your production.

Apple ProRes RAW
Up to 12-Bit RAW via HDMI & SDI.
Apple ProRes
Edit-ready codec from Apple, with scalable levels of compression.
Avid DNxHD/HR
Edit-ready codec from Avid, with scalable levels of compression.
HEVC (H.265)*
A highly efficient compressed codec that allows you to create high-quality, low bit-rate and smaller-sized files for sharing.
You can also create 4K HDR 10-bit deliverables or use the option to bake in custom LUTs to achieve specialist looks during production.
*HEVC (H.265) dual recording is only enabled in Camera to Cloud mode. To use H.265 dual or single recording outside of this mode, a separate H.265 license is required. For more information, visit my.atomos.com

RECORD WITHOUT LIMITATIONS

The ability to record up to 8K using advanced edit-ready formats including ProRes RAW, ProRes, and DNxHD/HR requires fast, robust, and expansive storage. Shogun Ultra supports removable SSD drives, which provide the space and sustained performance to meet these needs.

AtomX SSDmini drives are more compact than standard SATA SSDs and offer an affordable alternative to an SD card of similar capacity or performance. They support up to 4TB storage, sequential read speeds of up to 550MB/s and write speeds up to 500MB/s. The AtomX SSDmini drives are able to record up to 150 minutes of 4K ProRes. Measuring 8cm long, 7.5cm wide and weighing as little as 88g, the custom-built drive neatly fits into the Shogun without impacting the overall footprint of the device.

8K RAW
High definition recording
4TB
Lots of storage
Data Speed
Read and write speed up to 550Mb/s

MORE FLEXIBILITY

There is an optional SSDmini adaptor that allows CFAST II cards to be used, enabling you to recycle older media cards or align with your camera media. Alongside SSDmini we also qualify a range of 2.5-inch SSDs that can be used in conjunction with the MasterCaddy III adaptor in the Shogun Ultra box.

With Shogun Utra the only limitation to how much you can record is the size of the SSD. A core principle of Atomos devices is to provide much more flexibility in terms of recording codec, resolution, and frame rate than is normally available with internal recording. SSD media also provides more GB per $ than camera media cards. This provides extended recorded times for long form productions or recording events.

What’s in the Box

• Atomos Shogun Ultra 7-inch Monitor Recorder
