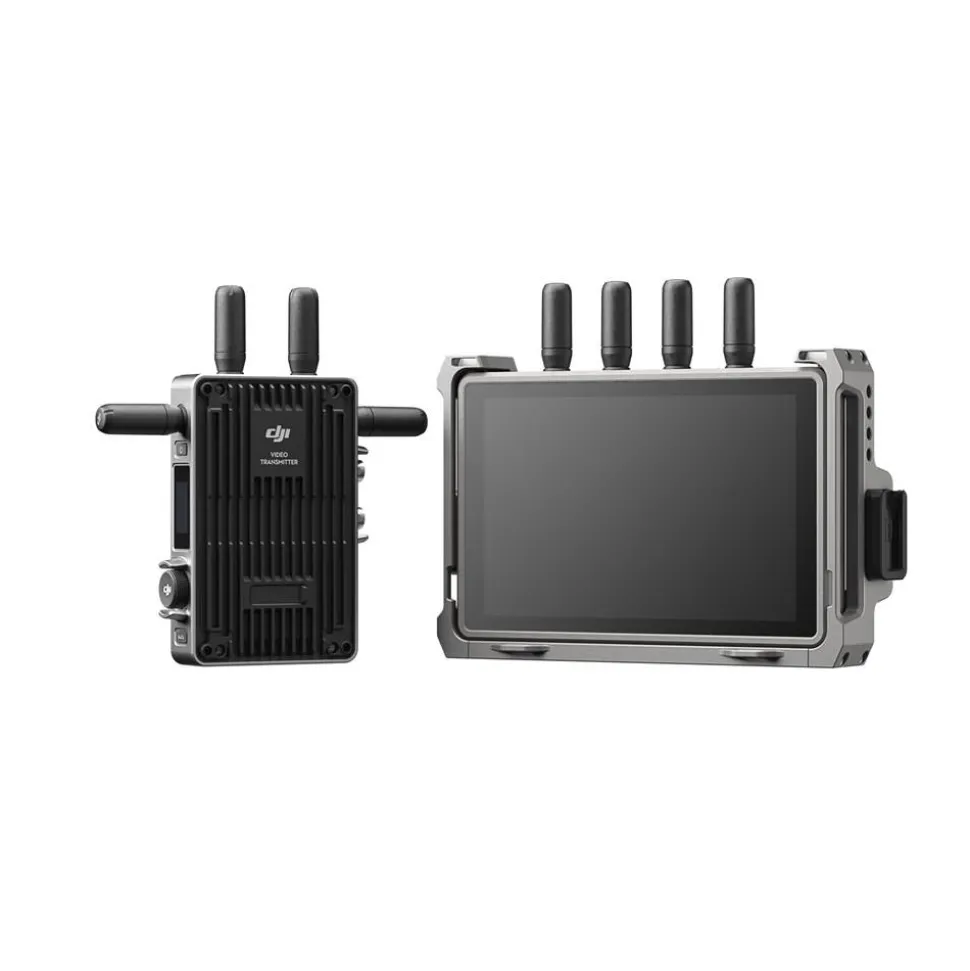

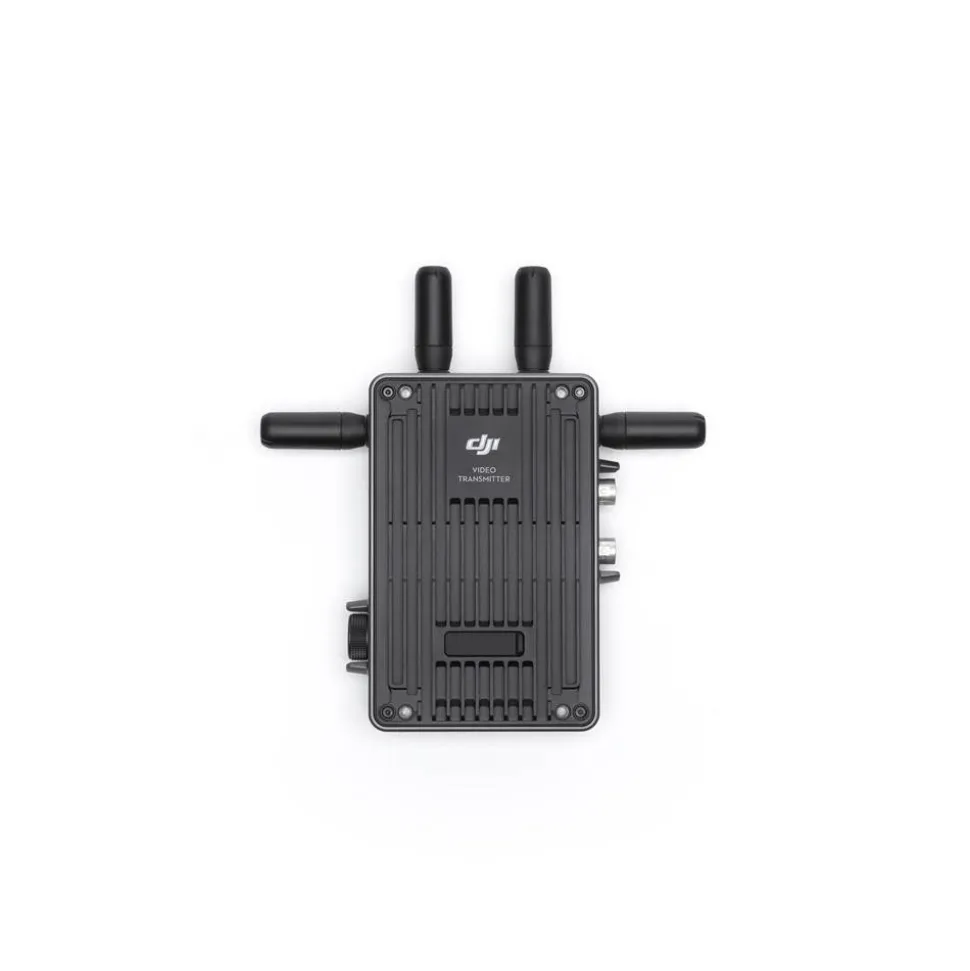

DJI Video Transmitter

• Next-generation video accessory which combines a video receiver, monitor, controller and recorder
• Up to 6km HD live feed using O3 Pro video transmission technology, which can be encrypted with secure pairing and AES 256-bit
• Interference-free Auto Frequency Hopping with DFS bands on top of 2.4 GHz and 5.8 GHz frequency bands
• The video transmitter and receiver provide end-to-end ultra-low transmission latency with cinema cameras like ALEXA Mini LF
• Compatible with Ronin 4D Hand Grips and the entire DJI ecosystem including the High-Bright Remote Monitor

DJI Video Transmitter Summary

With the introduction of the DJI Video Transmitter we are seeing a new era in long-distance HD live feed for video production. With O3 Pro video transmission technology the Video Transmitter can output a 1080p/60fps feed to multiple remote monitors simultaneously, combining a video receiver, monitor, controller and recorder in one. You’ll experience end-to-end ultra-low transmission latency thanks to employing the same chip solution as Ronin 4D. Up to 23 channel options provide seamless auto frequency hopping using a built-in frequency sweeper to avoid device interference and you can add  for even greater transmission.

Naturally the DJI Video Transmitter works seamlessly with  acting as a standalone motion controller for capturing more complex movements. You can also remotely control  menus from anywhere on set.

Key Features

• New era of video receiver, monitor, controller and recorder all-in-one
• Up to 6km HD Live Feed at 1080p/60fps
• End-to-End Ultra-Low Latency
• Supports triple-band automatic frequency hopping
• Supports one transmitter with multiple receivers for video and audio feeds in two transmission modes
• Ideal for multi-team environments sending signals to 20 or more monitors simultaneously
• Secure pairing and AES 256-bit encryption
• Built-in image processing
• Compatible with DJI ecosystem including the High-Bright Remote Monitor

DJI Video Transmitter in More Detail

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 50Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimised to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.

Seamless Auto Frequency Hopping

O3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

With a built-in frequency sweeper, users can even manually select the optimal channel to avoid interference between devices.

One Transmitter with Multiple Receivers

The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely.

For crews operating with multiple members and teams, such as lighting, art department, and props, Broadcast mode can be enabled on top of Control mode to allow an unlimited number of receivers (transmission performance differs from Control mode). This brings shooting efficiency and awareness to an entirely new level.

In dynamic, multi-team environments such as reality television sets, DJI’s unique transmission protocol can make better use of wireless channels. With DFS bands and seamless automatic frequency hopping technology, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more monitors simultaneously. This results in a smooth, coordinated experience that’s difficult to achieve with traditional transmission setups.

Encrypted Transmission

DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorised access to your information. Together with DJI’s self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.

Integrated Design

DJI Transmission integrates a high-bright monitor which comes with the , with a built-in receiver, providing optimum portability and efficient setup to help you get started fast in any setting.

The remote monitor comes with a built-in image processing chip that is the same as the one used on Ronin 4D. This allows it to offer many features in addition to monitoring for integrated and efficient receiving, monitoring, control, and recording.

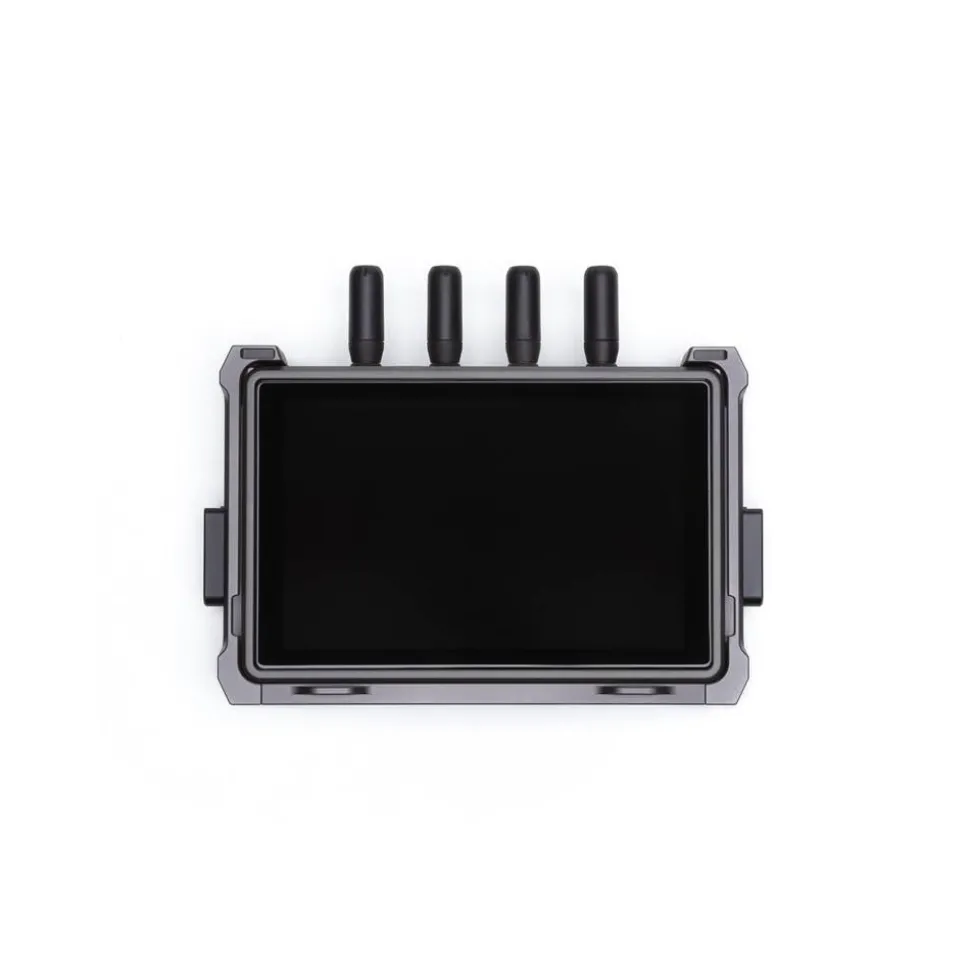

Wide-Gamut Touchscreen

The High-Bright Remote Monitor is equipped with a 7-inch wide-gamut touchscreen with a brightness of up to 1,500 nits. It comes standard with a tempered glass screen protector and professional monitor hood to deliver rich, true-to-life colours, even in strong lighting conditions. With a 1920×1200 resolution, the screen displays a non-intrusive interface (OSD), with visible details like shooting parameters to ensure easily accessible information and seamless monitoring.

Extensive video Tools

The remote monitor comes with supportive tools like safe zone, frame guide, zebra stripes, false colour, peaking, and waveform for precise composition, exposure, and focusing.

Independent Recording and Playback

The remote monitor also features a microSD card slot and allows for recording and playback of a 1080p/60fps H.264 live feed, as well as simultaneous access to video time-codes, making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.

Built-In Motion Controller

The High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.

Compatible with Ronin 4D Hand Grips

The High-Bright Remote Monitor comes with an expansion-protective frame. When using with Ronin 4D Hand Grips, the joystick can control the Ronin 2 or RS 3 Pro gimbal, and the focus wheel can control focusing and the adjustment of camera parameters like aperture, shutter, and ISO, while the record button controls start/stop of recording, making the RS 3 Pro user experience similar to that of Ronin 4D.

Compatible with DJI Master Wheels and DJI Force Pro

When used with the  or DJI Force Pro, the remote monitor allows users to achieve more advanced gimbal control when using Ronin 2 or RS 3 Pro. In this scenario, the original equipment will transmit control signals directly through DJI Transmission, no longer utilizing the wireless signals from DJI Master Wheels or DJI Force Pro. This boosts the transmission performance by three times and enhances signal range, stability, and anti-interference capabilities.

Mirror Control Mode

When RS 3 Pro is mounted to jibs, cable cams, and vehicles, with Mirror Control mode, you can remotely control the menu of Sony mirrorless cameras from anywhere on set.

Ports and Power Supply

4D Video Transmitter Port

• 3G-SDI Loop Out Port supports output of 1080p/60fps videos.
• 3G-SDI Input Port supports input of 1080p/60fps videos.
• HDMI 1.4 Type-A Input Port supports input of 1080p/60fps videos.

High-Bright Remote Monitor Ports

• 3.5mm Stereo Jack monitors audio in real time.

microSD Card Slot

• Internal recording and playback on the monitor with a

HDMI 2.0 Type-A Input Port

• Supports input of 4K/60fps videos.

USB Type-C port For firmware updates.

Power Input Port

• 6.8 V to 17.6 V power input (including CAN input and output, and connection with DJI Master Wheels and DJI Force Pro).

HDMI 1.4 Type-A Output Port

• Supports output of 1080p/60fps videos.

3G-SDI Output Port

• Supports output of 1080p/60fps videos.

Direct Power Supply by Gimbal

DJI Transmission can pair with Ronin 2 or  for a customised shooting solution. The Video Transmitter can be mounted directly to the cold shoe on the bottom of the gimbal and powered by it directly without additional batteries.

Further Power Supply Solutions

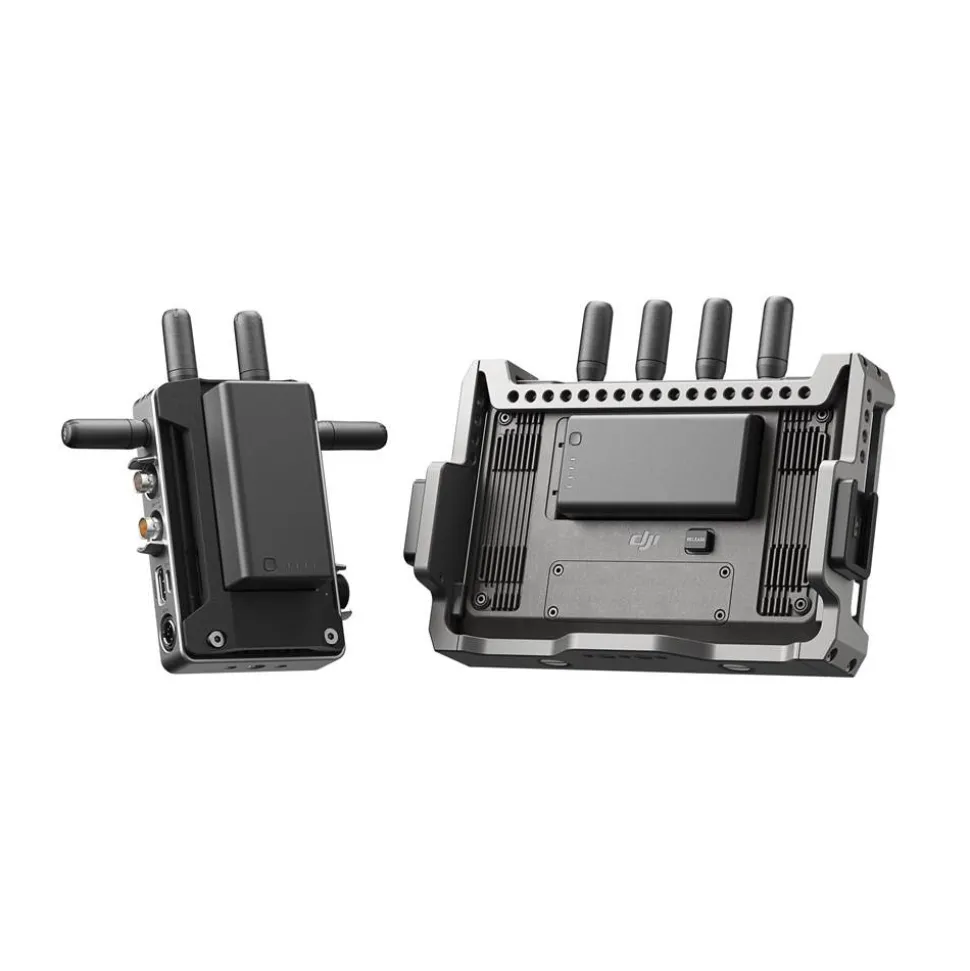

The Video Transmitter and High-Bright Remote Monitor are all compatible with the DJI WB37 Battery and can also use the included NP-F Battery Adapter for universal batteries.

Third-party V-mount battery adapters can also be used to provide power to the video transmitter and remote monitor using V-mount batteries. Pogo pins can be found on the front and rear of the video transmitter to mount the specialised V-mount battery adapter to a camera for integrated power supply of the camera and the video transmitter.

For a continuous power supply, a P-TAP to DC-in power cable can be used to connect to an external power source.

Notes:

• Measured in Control mode with FCC compliance in a standard, interference-free environment.
• Sold separately.
• Requires a camera control cable. Check the camera compatibility list for detailed information on supported camera models.
• Items sold separately.
• Check the official spec sheet for compatible camera models.
• Using these functions requires additional accessories that are sold separately.

What’s in the box

• DJI Video Transmitter x1
• Ronin Video Transmission Antenna x4
• WB37 Battery Adapter (TX) x1
• NP-F Battery Adapter (TX) x1
• USB-C Cable x1
• SDI Cable x1
• DJI DC Power Cable x1
• DC to P-TAP Power Cable x1
• USB-C to LEMO Power Cable x1
• RS Gimbal Mounting Plate x1
• Installation Toolkit x1
