- Broad focal range of 27-206mm equivalent for a host of subjects
- Part of Fujifilm’s new weather-resistant range – Sealant added in over 20 places.
- 5-axis Optical image stabilisation allows for fantastic anti-shake when using handheld.
- Another member of the renowned Fuji X-mount lens collection

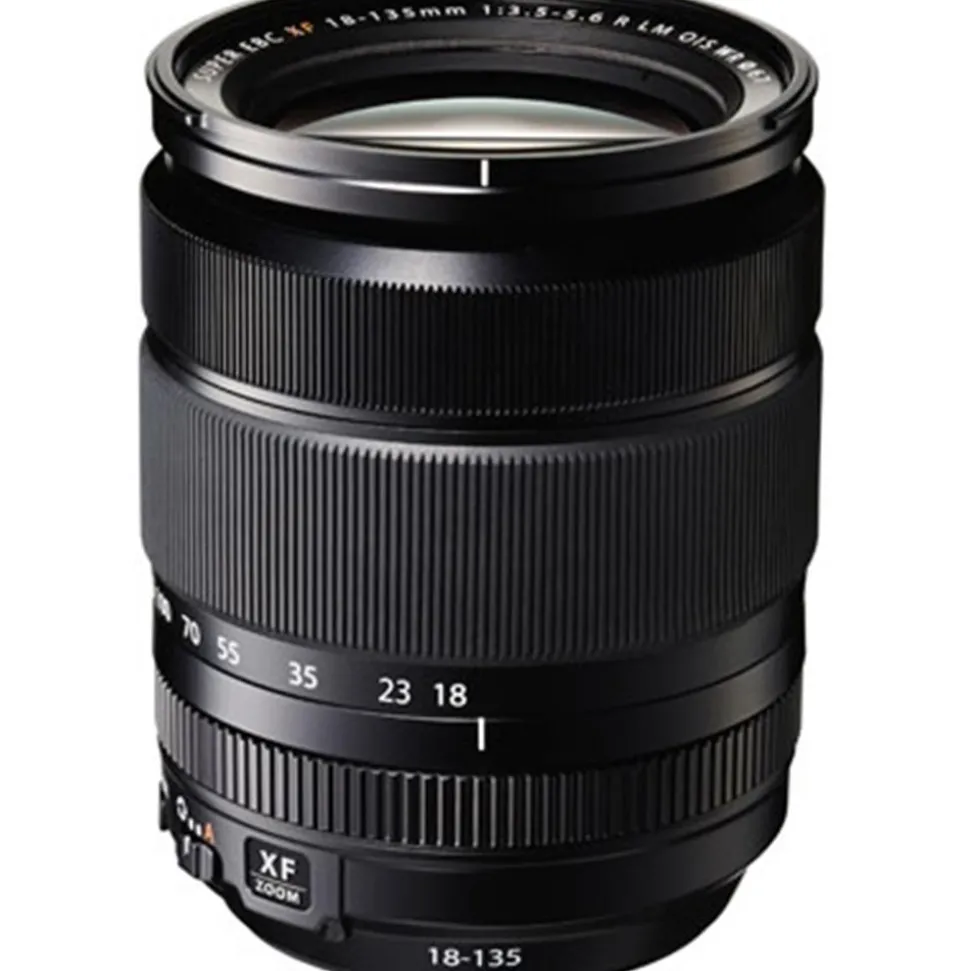

Fujifilm XF 18-135mm f3.5-5.6 R OIS WR Summary
This 18-135mm versatile zoom lens allows for a 35mm equivalent of 27-206mm. As part of the new weather resistant range by Fujifilm, come rain or shine you can ensure you will capture the perfect images.
The lens can be used for many subjects in various shooting scenes as it covers frequently used angles of view. These include wide angle, often used for shooting landscapes and architecture with an excellent sense of perspective (27mm*), a normal angle of view that naturally captures the image as is (35mm*, 40mm*, 50mm*), and telephoto, which symbolically cuts out portraits and sports scenes (85mm*, 135mm*, 200mm* with its 7.5x zoom.
In order to realise high descriptive performance with sharpness and rich contrast from wide angle to telephoto, high-performance glass materials including 4 aspherical glass lenses and 2 ED glass lenses are used. Multi-layer coating HT-EBC, which has high permeability (99.8%) and low reflectance (0.2%), is applied to the entire lens to effectively reduce lens flare and ghosting, which often occur in backlight conditions. Utilising the wide zoom range of the lens, there is more freedom in composition and selecting angles.
Weather resistant structure
A weather resistant structure with applied sealing on 20 areas on the lens barrel is tough against various changes that occur in a natural environment, such as sudden rain, dust, and splashes of water.
Users can focus more on shooting by using the lens together with the premium mirrorless camera FUJIFILM X-T1, which has a weather resistant structure, as well as with the dedicated vertical grip “VG-XT1”.
In order to improve the feel when adjusting zoom, a ventilator is placed in the interior of the bottom of the lens barrel. The structure effectively prevents dust particles and moisture from getting into the lens to allow for smooth operation.
Fast autofocus (max. 0.10 sec.)**, silent operation
The XF18-135mmF3.5-5.6 R LM OIS WR utilises an inner focus mechanism*** for rapid autofocusing speeds. This was enabled by making the focus lens lighter and installing a linear motor. By combining this lens with the X-series camera body*4 which is compatible with phase detection AF, smooth photography is offered with faster AF.
Linear motor technology which directly drives the focus lens creates low noise for silent operation when shooting movies.
World’s most advanced 5.0-stop image stabilisation function
In order to realise the world’s most advanced 5.0-stop image stabilisation performance, performance to detect movement in the low-frequency band was improved, and an algorithm to accurately sense blur from the detected signal was developed. Correction performance improved by 2 times in the low-speed shutter range. This helps to support a lightly-equipped shooting style without the use of a tripod.
The newly adopted high-precision gyro sensor is installed with quartz oscillators which detect movement from high frequency to low frequency bandwidth.
- 35mm equivalent: – 27-206mm
- Part of Fujifilm’s new weather-resistant range – Sealant added in over 20 places.
- 5-axis Optical image stabilisation allows for fantastic anti-shake when using handheld.
- Another member of the renowned Fuji X-mount lens collection
FUJIFILM XF 18-135MM F3.5-5.6 R LM OIS WR ZOOM LENS SPECIFICATIONS
| Type | FUJINON XF 18-135mm f/3.5-5.6 R LM OIS WR | |
| Lens configuration | 16 elements in 12 groups (4 aspherical elements and 2 anomalous dispersion lenses) | |
| Focal length | 18-135mm (27-206mm in 35mm format equivalent) | |
| Angle of view | 76.5° – 12° | |
| Max. aperture | F3.5 – F5.6 | |
| Min. aperture | F22 | |
| Aperture control | ||
| Â | Number of blades | 7(rounded diaphragm opening) |
| Â | Step size | 1/3EV (17 steps) |
| Focus range | ||
|  | Normal | 0.6m – ∞ |
|  | Macro | 0.45m – ∞ |
| Max. magnification | 0.27x (Telephoto) | |
| External dimensions : Diameter x Length*1 (approx.) | ø75.7mm x 97.8mm(Wide) / 158mm(Telephoto) | |
| Weight*2 (approx.) | 490g | |
| Filter size | ø67mm | |
| Offers: N/A |
| Offer Category: Camera Lenses |
| Offer Product Type: Fujifilm Lenses X mount |
| Autofocus: Yes |
| Aperture ring: Yes |
| Constant Aperture: N/A |
| Lens CIPA Image stabilization rating: N/A |
| Colour: N/A |
| Diameter (mm): 76 |
| Length (mm): 98 |
| Weight (g): 490 |
| Distance scale: N/A |
| DoF scale: N/A |
| Elements: 16 |
| Environmental Sealing: N/A |
| Focus distance limiter: N/A |
| Focal length: 18 – 135 mm |
| Focus method: N/A |
| Filter Thread: N/A |
| Full time manual: Yes |
| Groups: 12 |
| Hood supplied: Yes |
| Lens Image stabilization: Yes |
| Lens mount: N/A |
| Lens Materials: N/A |
| Maximum focal length: 135 |
| Maximum magnification: 0.27 |
| Maximum aperture (number): 3.5 |
| Maximum aperture (text): N/A |
| Max Format size: N/A |
| Minimum focal length: 18 |
| Lens Minimum focus distance (m): 0.45 |
| Minimum aperture (number): 22 |
| Minimum aperture (text): N/A |
| Motor type: N/A |
| Number of diaphragm blades: 7 |
| Power zoom: N/A |
| Special elements / coatings: 4 aspherical elements, 2 ED glass elements |
| Tripod collar: N/A |
| Lens type: N/A |
| Wide/Tele: N/A |
| Lens Level: N/A |
| Best For: N/A |
| Best For Holiday and Landscape: Yes |
| Best For Interior and Architecture: N/A |
| Best For Fashion and Portrait: Yes |
| Best For Macro and Still Life: Yes |
| Best For Astro: N/A |
| Best For Street: Yes |
| Best For Wildlife and Sport: N/A |
| Zoom lock: N/A |
| Zoom method: N/A |
| Notes: N/A |
