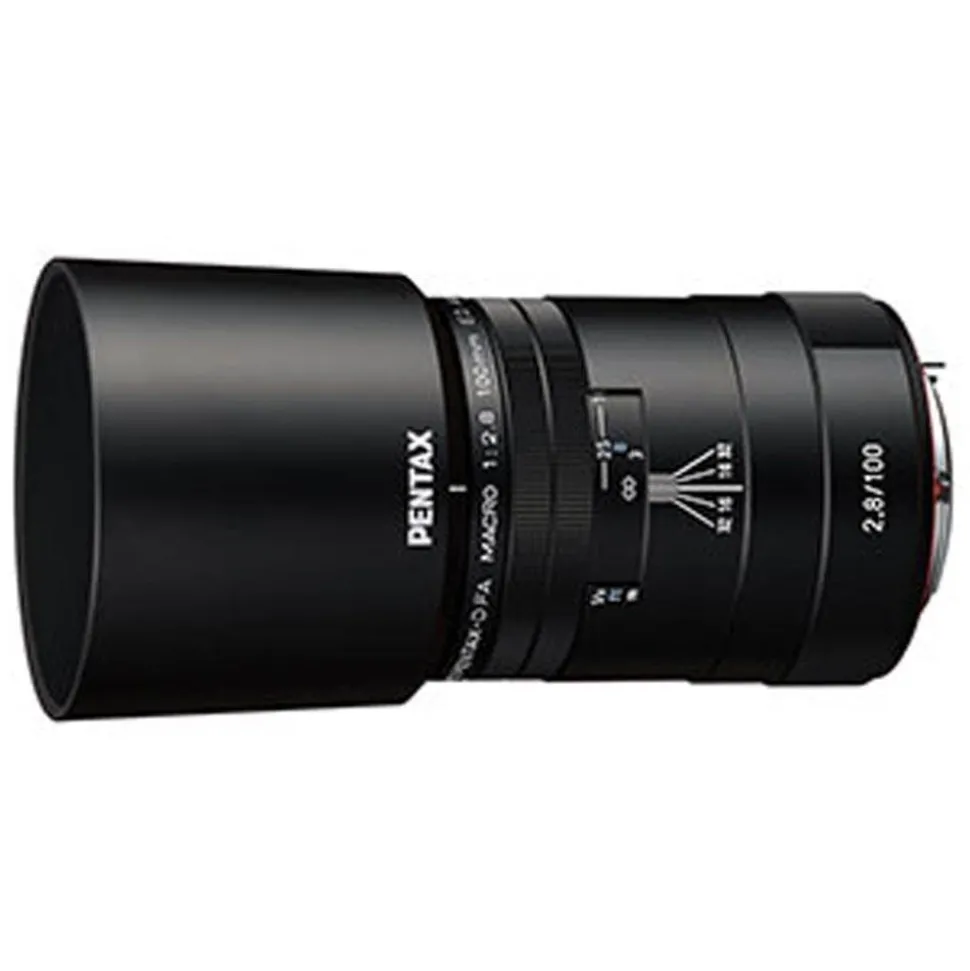

HD Pentax-D FA Macro 100mm f/2.8 ED AW Lens Black

The HD Pentax-D FA Macro 100mm f/2.8 ED AW Lens in Black combines a new optical design with all weather construction for brilliant close-up images from a compact, lightweight design with excellent usability.



HD Pentax-D FA Macro 100mm f/2.8 ED AW Lens Black Summary

Exceptional imaging performance made possible by the latest optical design technologies

The lens incorporates one ED (Extra-low Dispersion) glass optical element and two Anomalous Dispersion glass optical elements to compensate for various aberrations and minimize the generation of the unwanted purple fringe effect. This is coupled with the high-grade, multi-layer HD (High Definition) Coating, which reduces average reflectance in the visible ray spectrum to less than 50 percent compared to conventional models, and the innovative FREE (Fixed Rear Element Extension) focusing system. All together, these technologies effectively reduce the generation of flare and ghost images to a minimum over the entire focus range — from minimum focusing distance to infinity — and deliver clear, high-quality images. The lens also provides life-size magnification in close-range shooting to capture dramatic, fine-detailed close-up images.

Dustproof, weather-resistant AW construction for exceptional outdoor shooting reliability

Ready for diverse outdoor shooting conditions, the lens features dustproof, weather-resistant AW (All Weather) construction for the first time in a PENTAX macro lens. This dependable construction prevents the intrusion of dust and moisture into the interior, using six sealing parts to optimize airtight performance. When mounted on a dustproof, weather-resistant PENTAX digital SLR camera body, it creates a highly dependable, durable imaging system that performs superbly in demanding shooting settings —in rain or mist, or in locations prone to splashing or spraying water.

Exclusive exterior design and outstanding operability

The lens has an attractive, stylish appearance, thanks to its metallic exterior parts meticulously machined from high-grade aluminum. Its focus ring features the PENTAX-original Quick-Shift Focus System, which allows the photographer to instantly shift the focus mode from auto to manual after the subject has been captured in focus by the camera’s autofocus system. This single-action operation assures a smooth, comfortable focus-mode switching maneuver during manual-focus shooting, for dramatically improved operability.

Compact, lightweight design for superb maneuverability

Despite the greatly improved imaging power made possible by the new optical design and outstanding dust-proof, weather-resistant performance, the lens is designed to be nearly as compact and lightweight as the smc PENTAX-D FA MACRO 100mm F2.8 WR (launched in December 2009), assuring outstanding maneuverability.

Other features

• A working distance of 13 centimeters (at life-size magnification) to facilitate the shooting of unapproachable subjects, such as insects
• Individual serial number assigned to each lens: black models starting at 0000001, the silver model at 1000001
• Circular diaphragm to produce a natural, beautiful bokeh (defocus) effect from open aperture to F5.6, while minimizing the streaking effect of point light sources.
• SP(Super Protect)Coating applied to the front optical element, to keep the front surface free of dust or stains

HD Pentax-D FA Macro 100mm f/2.8 ED AW Lens Specifications

Focal Length	100mm
	Equivalent to 153mm in 35mm format (when attached to PENTAX APS-C size DSLR cameras)
Maximum Aperture	F2.8
Minimum Aperture	F32
Lens Construction	10 elements in 8 groups
Angle of View (Diagonal)	24.5°
	16° (when attached to PENTAX APS-C size DSLR cameras)
Mount	KAF
Minimum Focusing Distance	0.303 m (1.0 ft.)
Maximum Magnification	1.00x
Filter Diameter	49 mm
Diaphragm Control	Fully automatic
Number of Diaphragm Blades	8
	Rounded diaphragm (100mm:F2.8-F5.6)
Aperture Ring	N/A
Tripod Mount	N/A
Lens Hood	PH-RBE49 (included)
Lens Cap	O-LC49 (included)
Lens Case	S80-120 (included)
Maximum Diameter x Length	approx. 65 mm x 80.5 mm (approx. 2.6 in. x 3.2 in.)
Weight	approx. 348 g /with Lens Hood approx. 387 g (approx. 12.3 oz. / with Lens Hood approx. 13.7 oz)
Temperature	-10°C~40°C (14°F~104°F)
Humidity	85% or less (no condensation)
Included Accessories	Lens Hood PH-RBE49, Lens Cap O-LC49, Lens Mount Cap K, Lens Case S80-120
Others	HD Coating
	SP (Super Protect) Coating
	AW (All Weather)
	Quick-shift Focus System (QFS/A)

Offers: Price Drop

Offer Category: N/A

Offer Product Type: N/A

Autofocus: Yes

Aperture ring: N/A

Constant Aperture: Yes

Lens CIPA Image stabilization rating: N/A

Colour: N/A

Diameter (mm): N/A

Length (mm): N/A

Weight (g): N/A

Distance scale: Yes

DoF scale: Yes

Elements: 10

Environmental Sealing: N/A

Focus distance limiter: N/A

Focal length: 100 mm

Focus method: N/A

Filter Thread: N/A

Full time manual: N/A

Groups: 8

Hood supplied: Yes

Lens Image stabilization: N/A

Lens mount: N/A

Lens Materials: N/A

Maximum focal length: 100

Maximum magnification: 1

Maximum aperture (number): 2.8

Maximum aperture (text): N/A

Max Format size: N/A

Minimum focal length: 100

Lens Minimum focus distance (m): 0.13

Minimum aperture (number): 32

Minimum aperture (text): N/A

Motor type: N/A

Number of diaphragm blades: 8

Power zoom: N/A

Special elements / coatings: N/A

Tripod collar: N/A

Lens type: N/A

Wide/Tele: N/A

Lens Level: N/A

Best For: N/A

Best For Holiday and Landscape: Yes

Best For Interior and Architecture: N/A

Best For Fashion and Portrait: Yes

Best For Macro and Still Life: Yes

Best For Astro: N/A

Best For Street: N/A

Best For Wildlife and Sport: N/A

Zoom lock: N/A

Zoom method: N/A

Notes: N/A
