- High quality ultra wide angle zoom lens with bright constant aperture throughout the range
- Excellent build quality with weather sealing and freeze-proof construction for harsh environments
- Complex optical design renders excellent detail and resolution across the entire frame
- Advanced lens coatings enhance image quality with well controlled flare and ghosting
- Nine-blade diaphragm renders soft out of focus areas thanks to a close minimum focus distance
Key Features
- Pentax HD Coating
- SP (Super Protect) Coating
- AW (All Weather Resistant)
- Quick-shift Focus System (QFS/M)
- DC (DC Motor)
- Focus Clamp Function
- Weather resistant structure
- Nine-blade diaphragm
- 16 elements in 11 groups

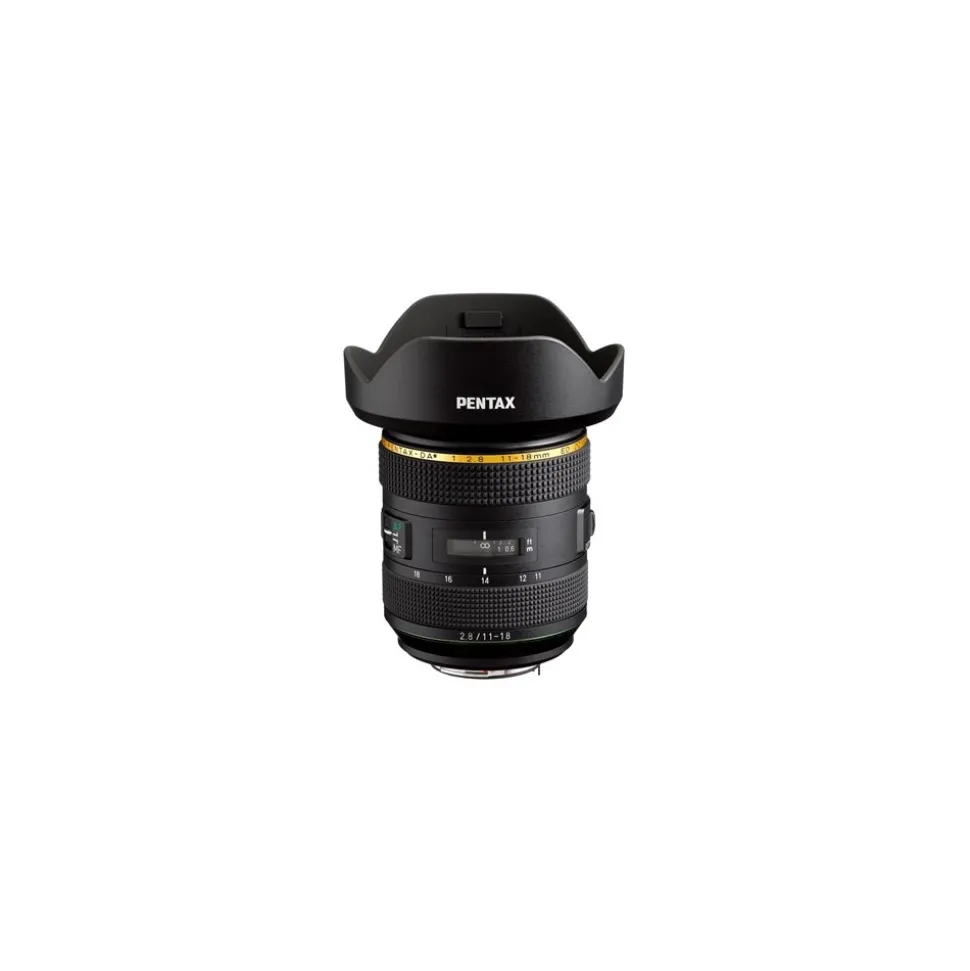

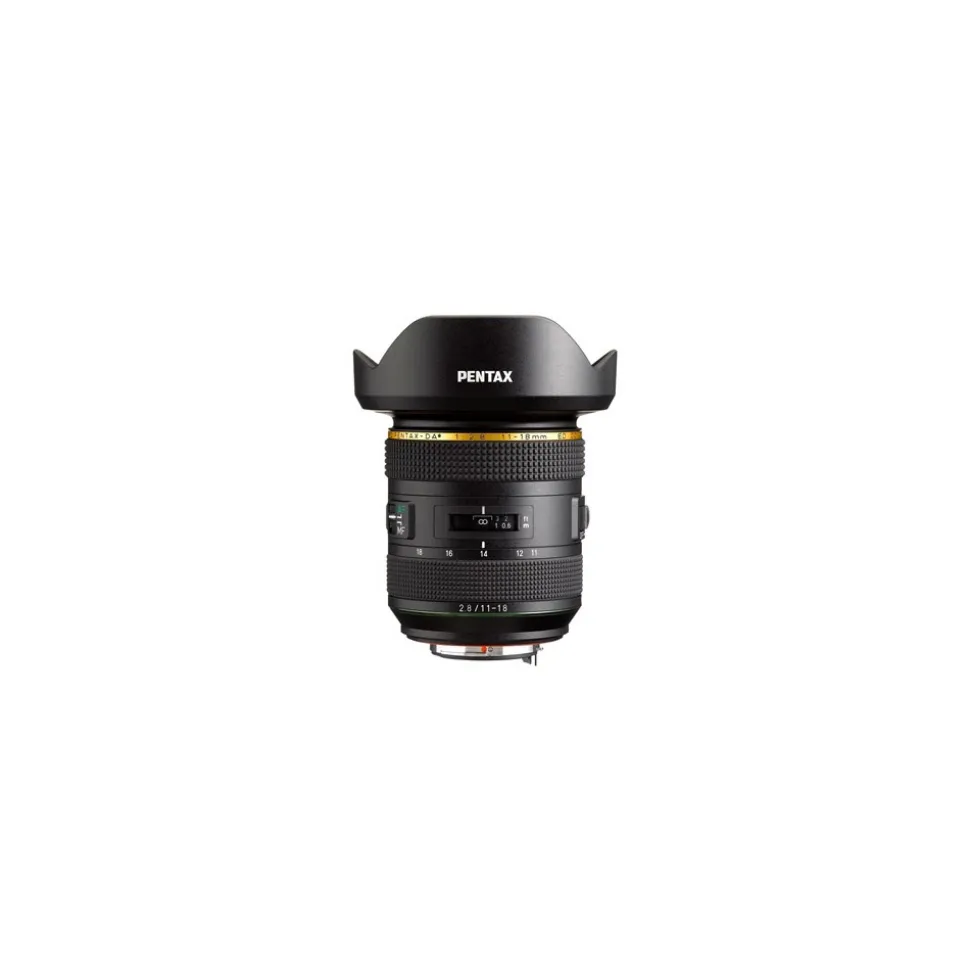

HD Pentax-DA 11-18mm f/2.8 ED DC AW Lens Summary
The new-generation Star series HD Pentax-DA 11-18mm F/2.8 ED DC AW Lens is an ultra wide angle zoom for crop sensor APS-C format . The lens delivers exceptional optical performance with a large f/2.8 aperture throughout the entire zoom range. This allows you to shoot at wide apertures in low light situations as well as separating subjects from their background with a shallow depth of field. With an equivalent focal range of 17mm to 27.5mm in 35mm format this lens excels at subjects including landscapes, architecture, astro photography and interiors amongst others.
As a Star series model, this joins other high end  designed to be future-proof with existing and future high resolution sensors. It includes high-end features designed to maximise image quality including HD and Super Protect coatings, a DC focus motor and nine-bladed aperture diaphragm.
HD Pentax-DA 11-18mm F/2.8 ED DC AW Lens In More Detail
Large f/2.8 maximum aperture
This ultra-wide-angle zoom lens provides a focal length of 11-18 millimetres (equivalent to 17mm to 27.5mm in 35mm format) produce magnificent, dynamic images despite its small size. With its maximum constant F2.8 aperture over the entire zoom range, the lens delivers sharp, bright astro, aurora and star images. A minimum focusing distance of just 0.3 meters allows the photographer to capture true-to-life close-up images by emphasising the depth of field with an effectively defocused background.
Enhance imaging power with HD Coating
This lens features high-grade, multi-layer HD Coating which reduces the average reflectance in the visible ray spectrum to less than 50% of conventional multi-layer coatings. It effectively minimises flare and ghosting in images even during demanding lighting conditions such as backlighting.
Optimised for landscapes and star photography
The unique Focus Clamp Mechanism allows the photographer to lock the lens’s focal point, even when the focus ring is rotated. This improves the lens’s operability in photographing such subjects as landscapes and star-lit scenes, which demand high-precision focusing during extended exposures. It also has special features for improved operability and versatility in outdoor shooting, such as a space for wrapping heating wires around the lens barrel to prevent dew condensation, without affecting focus-ring operation; and a metallic frame structure to more effectively transmit the heat of the heating device to the lens.
Dust-proof, weather-resistant and -10 ? cold-resistant construction
Developed as an All Weather (AW) model, this 11-18mm zoom lens features a dust-proof, weather-resistant construction to prevent water and dust particle intrusion into the lens interior. By pairing it with a weather-resistant digital SLR camera body like the , this assures a highly durable, reliable digital imaging system that performs superbly in demanding shooting settings — even in rain or mist, or at locations prone to water splashes. Anticipating use in cold locations, this lens assures solid, trouble-free operation even at freezing temperatures.
HD Pentax-DA 11-18mm F/2.8 ED DC AW Lens Specifications
| FOCAL LENGTH EQUIVALENT TO 35 MM FORMAT | Equivalent to 17-27.5mm in 35mm format (when attached to PENTAX APS-C size DSLR cameras) |
| MAXIMUM APERTURE | F2.8 |
| MINIMUM APERTURE | F22 |
| NUMBER OF DIAPHRAGM BLADES | 9 Rounded diaphragm |
| ANGLE OF VIEW | 104-76° on crop sensor cameras |
| CONSTRUCTION | 16 elements in 11 groups |
| FOCUSING RANGE | 0.3m |
| SMALLEST OBJECT DISTANCE/MAGNIFICATION | 0.14m |
| MAGNIFICATION | 0.10x |
| FILTER SIZE | 82mm |
| WEIGHT | approx. 704g |
| DIMENSIONS (LENGTH X DIAMETER) | approx. 90mm x 100mm |
What’s in the Box
- HD Pentax-DA 11-18mm F/2.8 ED DC AW Lens K Mount
- Lens Hood: PH-RBF82
- Lens Cap: O-LC82
- Lens Case: S120-150
- Lens Mount Cap K
| Offers: Price Drop |
| Offer Category: Camera Lenses |
| Offer Product Type: Pentax Lenses K mount |
| Autofocus: Yes |
| Aperture ring: N/A |
| Constant Aperture: Yes |
| Lens CIPA Image stabilization rating: N/A |
| Colour: N/A |
| Diameter (mm): N/A |
| Length (mm): N/A |
| Weight (g): N/A |
| Distance scale: Yes |
| DoF scale: N/A |
| Elements: N/A |
| Environmental Sealing: N/A |
| Focus distance limiter: N/A |
| Focal length: 11 – 18 mm |
| Focus method: N/A |
| Filter Thread: N/A |
| Full time manual: Yes |
| Groups: N/A |
| Hood supplied: Yes |
| Lens Image stabilization: N/A |
| Lens mount: N/A |
| Lens Materials: N/A |
| Maximum focal length: 18 |
| Maximum magnification: N/A |
| Maximum aperture (number): 2.8 |
| Maximum aperture (text): N/A |
| Max Format size: N/A |
| Minimum focal length: 11 |
| Lens Minimum focus distance (m): N/A |
| Minimum aperture (number): N/A |
| Minimum aperture (text): N/A |
| Motor type: N/A |
| Number of diaphragm blades: N/A |
| Power zoom: N/A |
| Special elements / coatings: N/A |
| Tripod collar: N/A |
| Lens type: N/A |
| Wide/Tele: N/A |
| Lens Level: N/A |
| Best For: N/A |
| Best For Holiday and Landscape: Yes |
| Best For Interior and Architecture: Yes |
| Best For Fashion and Portrait: N/A |
| Best For Macro and Still Life: Yes |
| Best For Astro: Yes |
| Best For Street: Yes |
| Best For Wildlife and Sport: N/A |
| Zoom lock: N/A |
| Zoom method: N/A |
| Notes: N/A |
