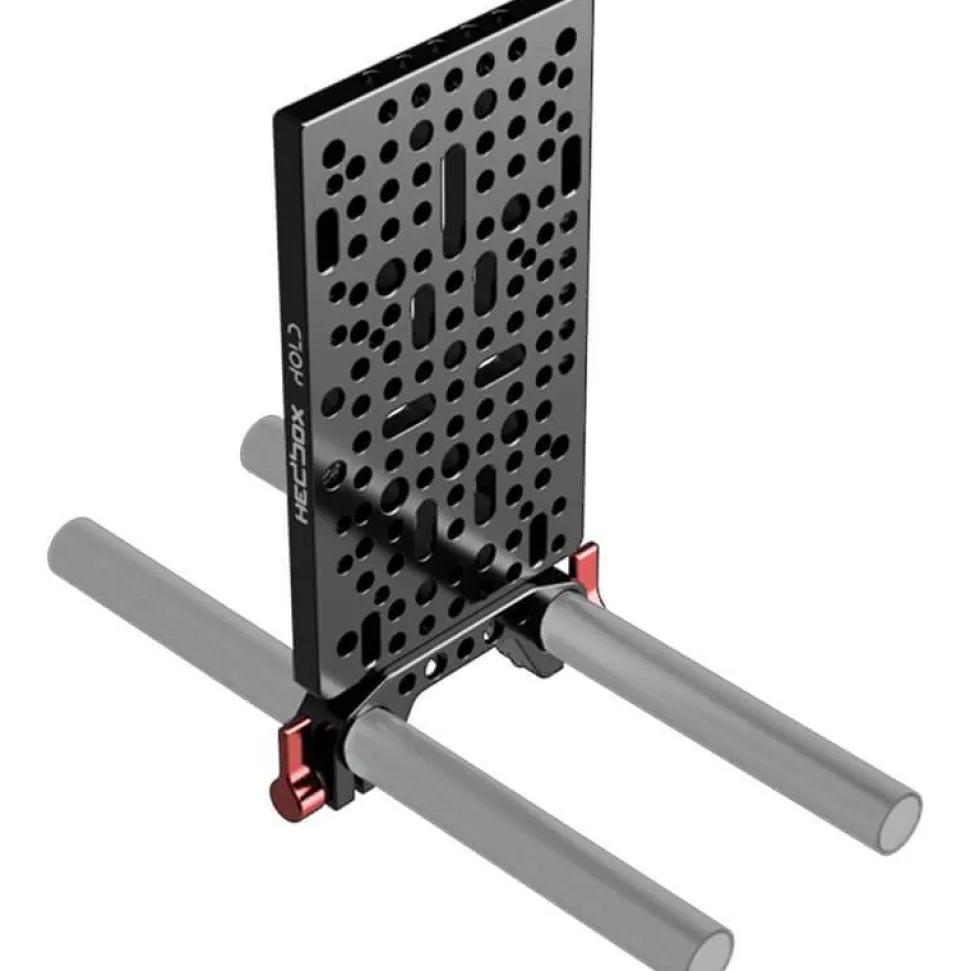

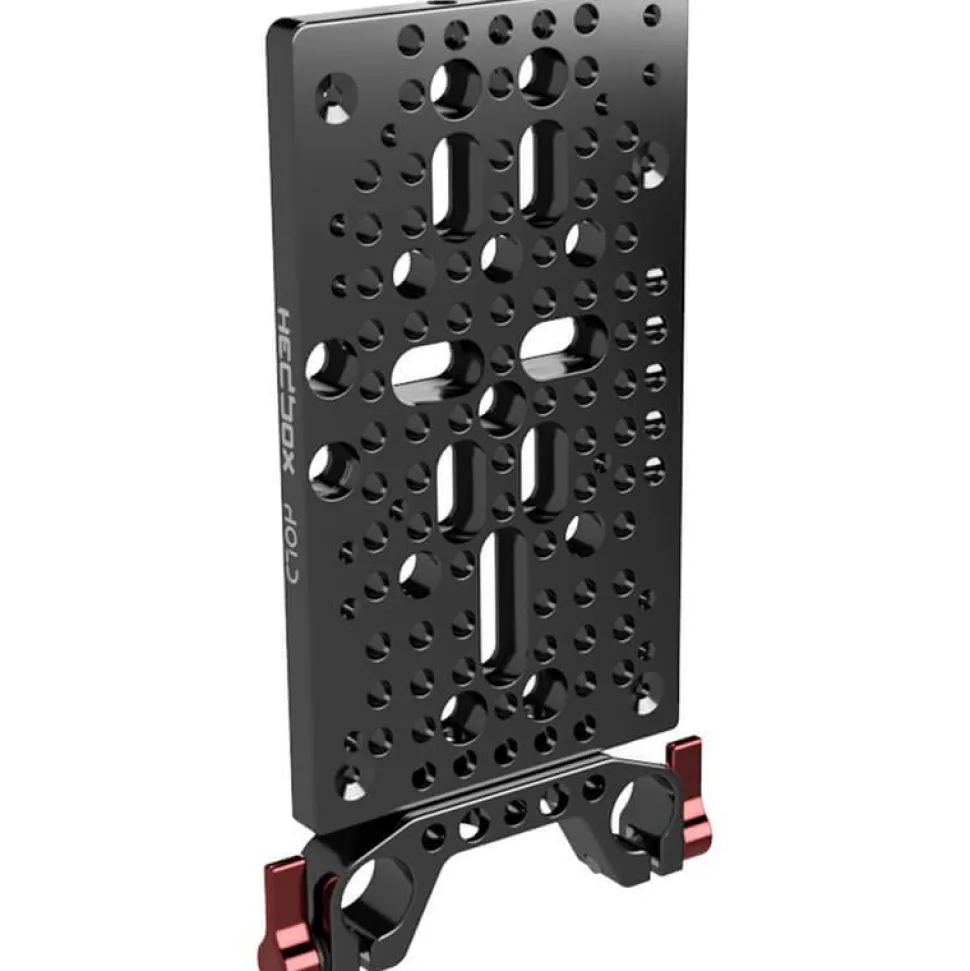

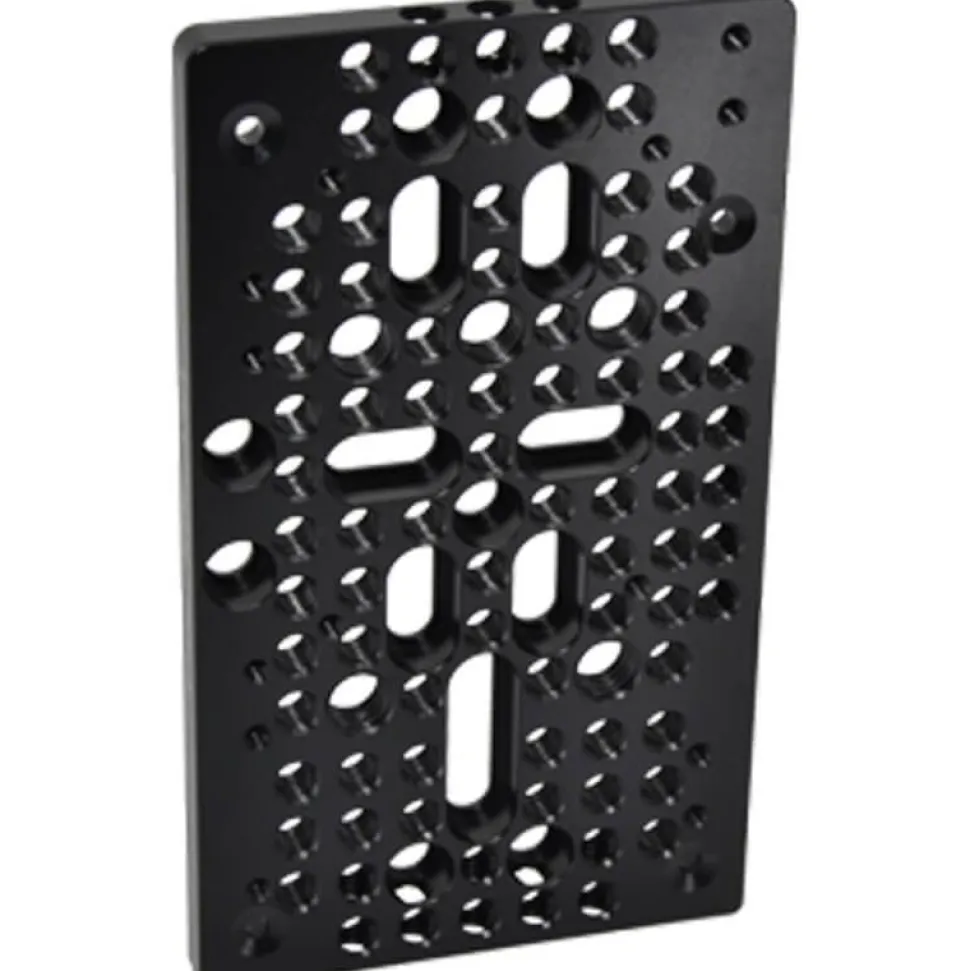

Hedbox 15mm Rod Cheese Plate

The HOLD System 15mm Rod Cheese Plate is a multi-purpose anodized precision-machined aluminium camera accessory mounting plate.



Hedbox 15mm Rod Cheese Plate

Constructed from dur-aluminium alloy, HOLD enables you to mount a separately available battery plate on the back of your camera.

HOLD is specially designed for UNIX family battery plates. The plate is 8mm (5/16″) thick and features 120 threaded holes for accessories to be screwed into.

Thanks to various threaded hole positions, this frame-style cheese plate is compatible with – Anton Bauer, IDX, Ikan, Shape, FXLion, Cinegears, Generay, Swit, Blueshape, Bebop, Dynacord, Hakwoods, Switronix and many others.

15mm Rod Cheese Plate
Constructed from dur-aluminium alloy

• 120 various threaded holes – Mounting Threads
• HEDBOX HOLD II provides an option for mounting various support products onto your camera rig’s 15mm LWS rod system
• 95x – 1/4″-20 threaded holes
• 5x – 3/8″-16 threaded holes
• 7x – Fly Holes
• 13x – 1/4″-20 Side Mounting threaded holes
• Incorporating multiple hole threads, the HOLD II is the perfect solution for your camera rig
• Multiple 1/4″- 20 Side Mounting Threads
• HEDBOX HOLD provides an option for mounting various Camera accessories on the side of the plate, thanks to multiple 1/4″- 20 Mounting Threads incorporated on the side of the plate
• Bottom & Top 1/4″- 20 Mounting Threads
• With 5 of 1/4″- 20 Mounting Threads on the bottom and 3 on the top HEDBOX HOLD provides an option for mounting a 15mm rod clamp that can be used onto your camera rig’s 15mm LWS rod system

In the Box:

• 1x HOLD II Aluminium Cheese Plate

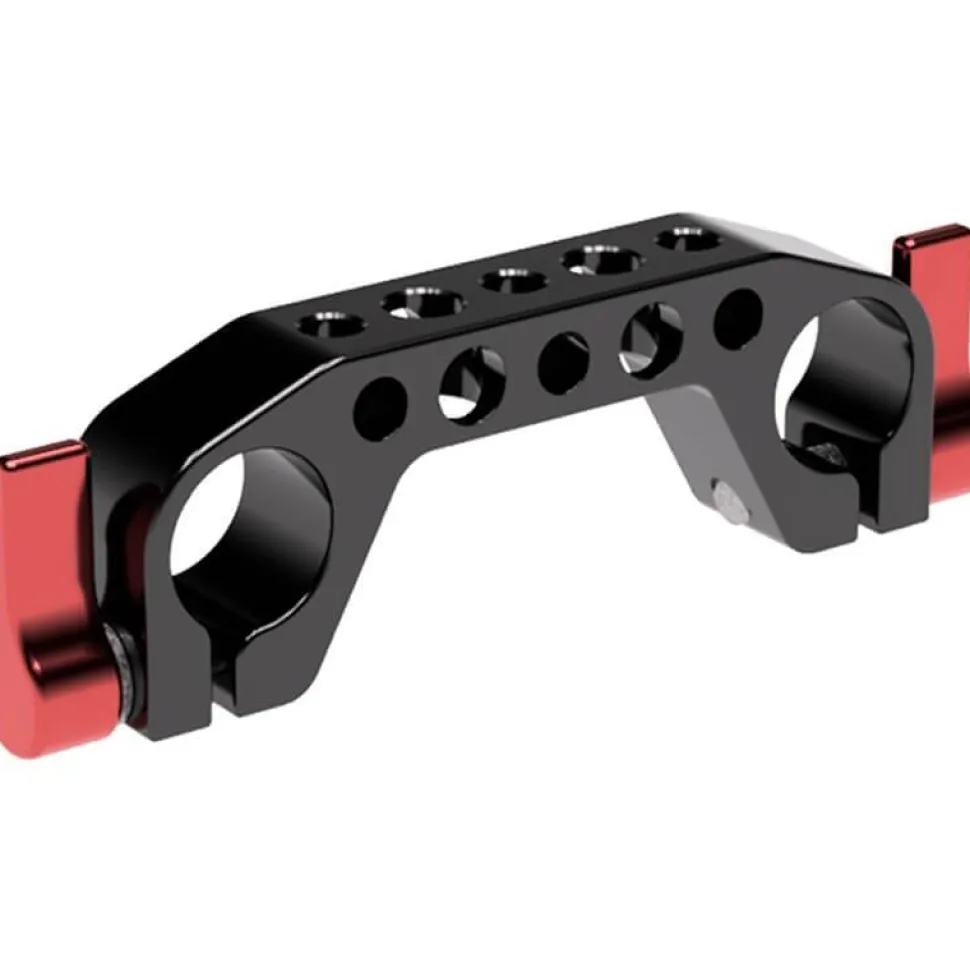

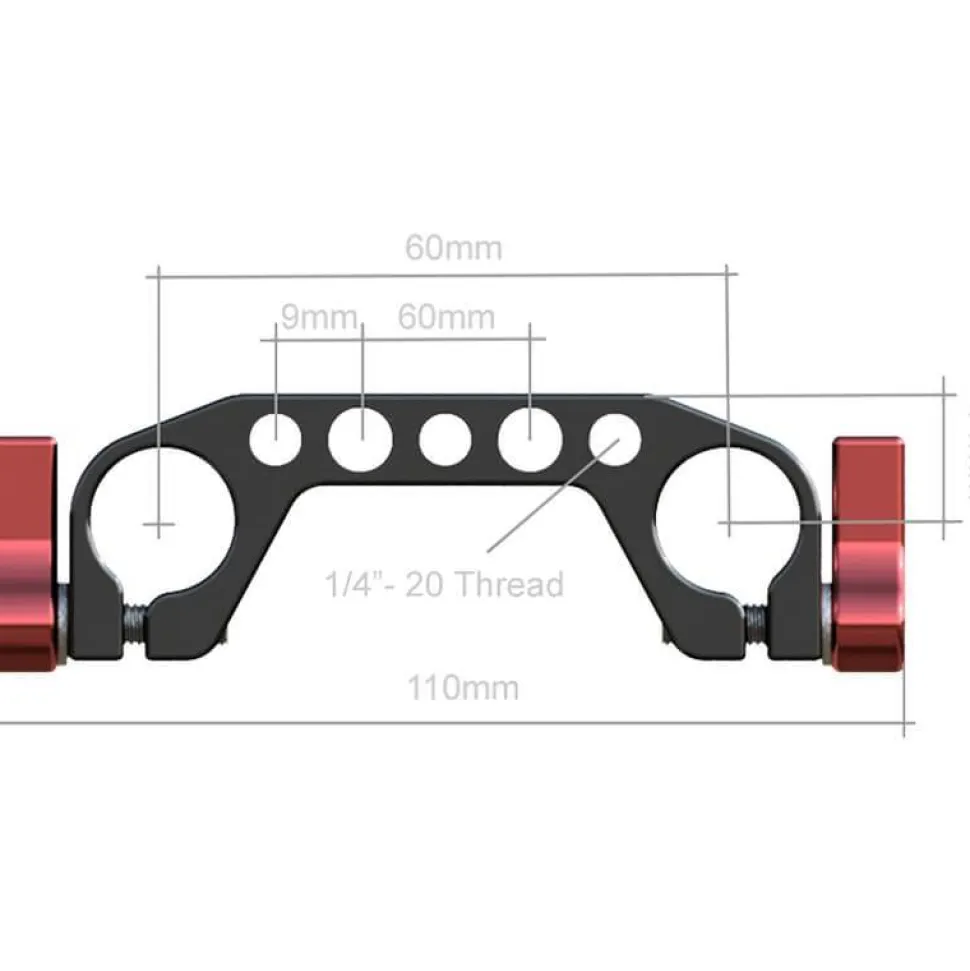

• 1x ROD Clamp
• 2x Red Color Rod Clamp Knobs
• 1x 3/16″ HEX Key
• 2x 1/4″ -20 Screw length 1/4″
• 2x 1/4″ -20 Screw length 3/4″
• 1x M3x12 Set Screw (4pcs)
