Nanlite MixPanel 60 RGBWW LED Panel Light

The Nanlite MixPanel 60 RGBWW LED Panel Light gives you hard or soft diffused light with an extensive and accurate 2700K / 7500K CCT range for ambient light integration along with dimmable settings.



Nanlite MixPanel 60 RGBWW LED Panel Light

The Nanlite MixPanel 60 uniquely combines three LED light sources into one compact housing, giving you the ability to switch between hard light, soft light, and coloured light at the touch of a button. Coupled with ultra-bright light output, 0-100% dimming, a CRI of 98, a TLCI of 95, green/magenta adjustment, 43 gel pre-sets in two light sources (3200K & 5600K), and 9 special effects; MixPanels are some of the most versatile RGBWW LED panels on the market.

Three LED Light Sources in One Compact Panel

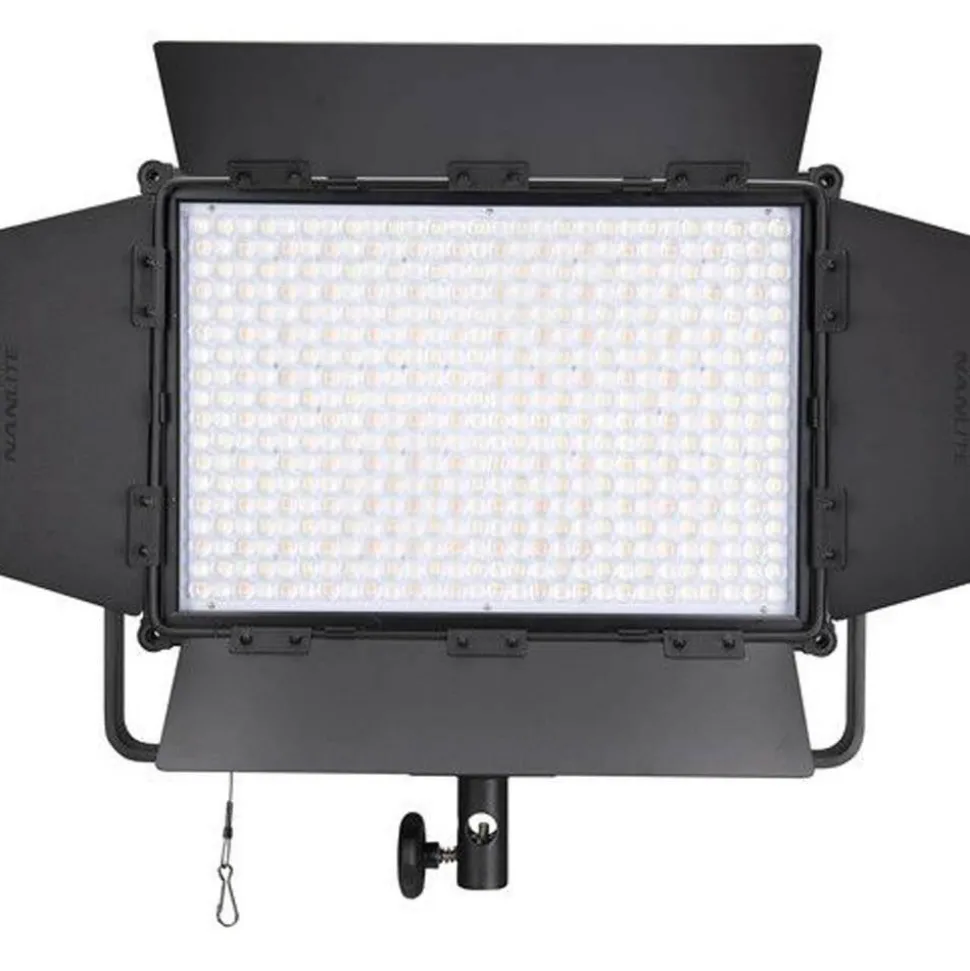

NanLite MixPanels are capable of switching between a “traditional” multi-LED panel for hard light, a diffuse SMD LED panel for soft light and a Tuneable RGB panel for colourful, creative effects at the push of a button.

Now, whether you need hard lighting with more throw, diffused lighting for flattering portraits and up-close work, or coloured light to set moods and express emotions, you can do it all in one unit with no additional accessories.

Ultra-Bright Output

When using the hard light fixture in normal mode, the MixPanel 60 emits an impressive 4980 Lux@1m 5600K. When shifted into boost mode the output climbs even higher to 6600 Lux at 1m. Plus with dimming from 100% down to 1%, you can quickly adapt the MixPanel 60 to any scene without adding ND gel or diffusion.

Colour Perfection

The brightness of a light is important, but without colour accuracy, a ton of time and money will be lost in post-production. The MixPanel 60 features a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode, meaning you can shoot with confidence knowing the colour reproduction will be precise.

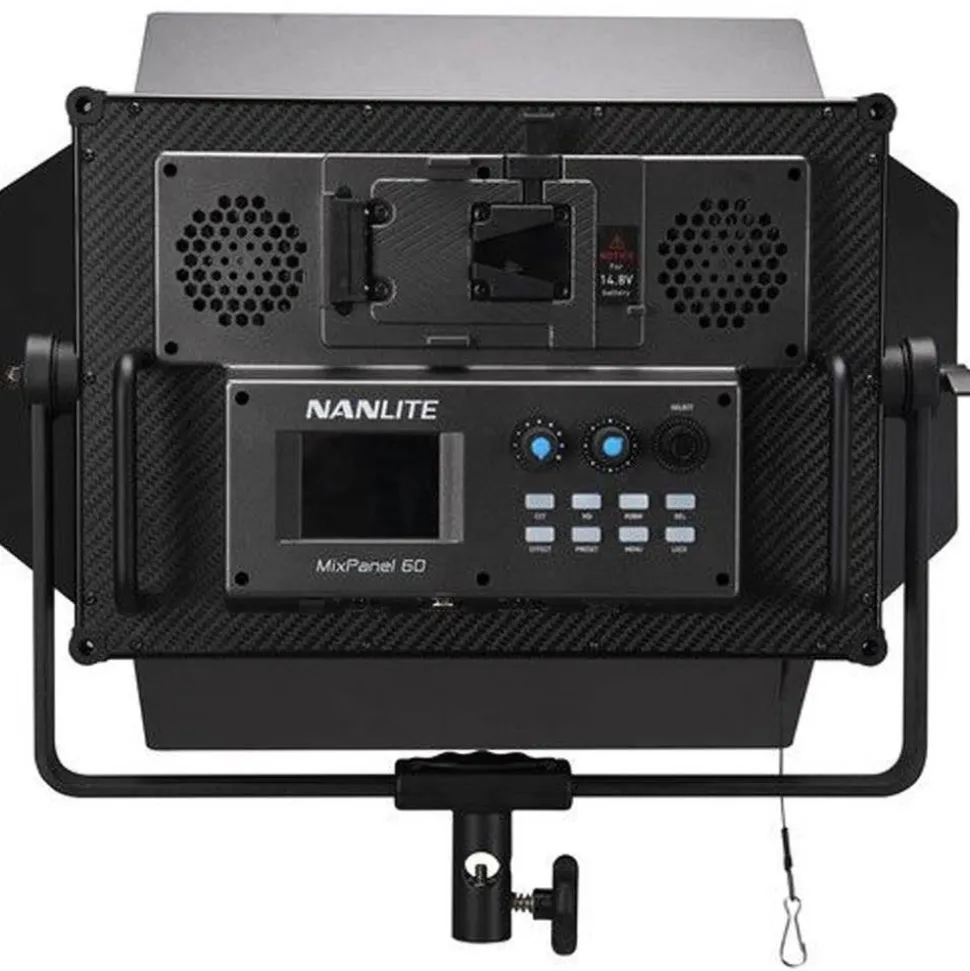

Intuitive User Interface

If there is one thing an RGBWW LED panel can not be it’s cumbersome to use on set. That is why the MixPanel 60’s operating system has been developed from the ground up to be efficient and intuitive to use. What’s more, you can save your settings as presets to make your lighting consistent and repeatable.

Gel Emulation and Practical Effects

The MixPanel’s gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor. Also, with 9 pre-programmed and adjustable special effects, the MixPanel makes it possible to imitate lighting scenarios that can otherwise be tricky to recreate such as hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.

In the Box:

• MixPanel 60 *1
• AC Power adapter *1
• Barn door *1
• Carrying bag*1

Specifications:

Power Consumption:60W*5
Power Supply:DC15V/6A,100-240V AC
CRI/TLCI:98/95
Color Temperature:2700K-7500K
Dimming:0 to 100 % continuous
Control:Dimming, 2.4G wireless control,Wifi control,DMX
Dimensions:350*425.9*81.6mm/13.8*16.7*3.2”
Weight(Light):3.3kg/7.3lb
Weight(Adapter):0.45kg/0.99lb
Weight(Carrying bag):1.5kg/3.3.lb

Brightness :
2700K:1m-4633lux/431fc, 2m-1291lux/120fc, 3m-605lux/56fc
7500k:1m-5814lux/541fc, 2m-1653lux/154fc,3m-761ux/701fc
RED:1m-1672lux/156fc, 2m-472lux/44fc, 3m-219lux/20fc
GREEN:1m-3553lux/331fc, 2m-967lux/90fc, 3m-450ux/42fc
BLUE:1m-650lux/60fc, 2m-180lux/17fc, 3m-83lux/8fc
