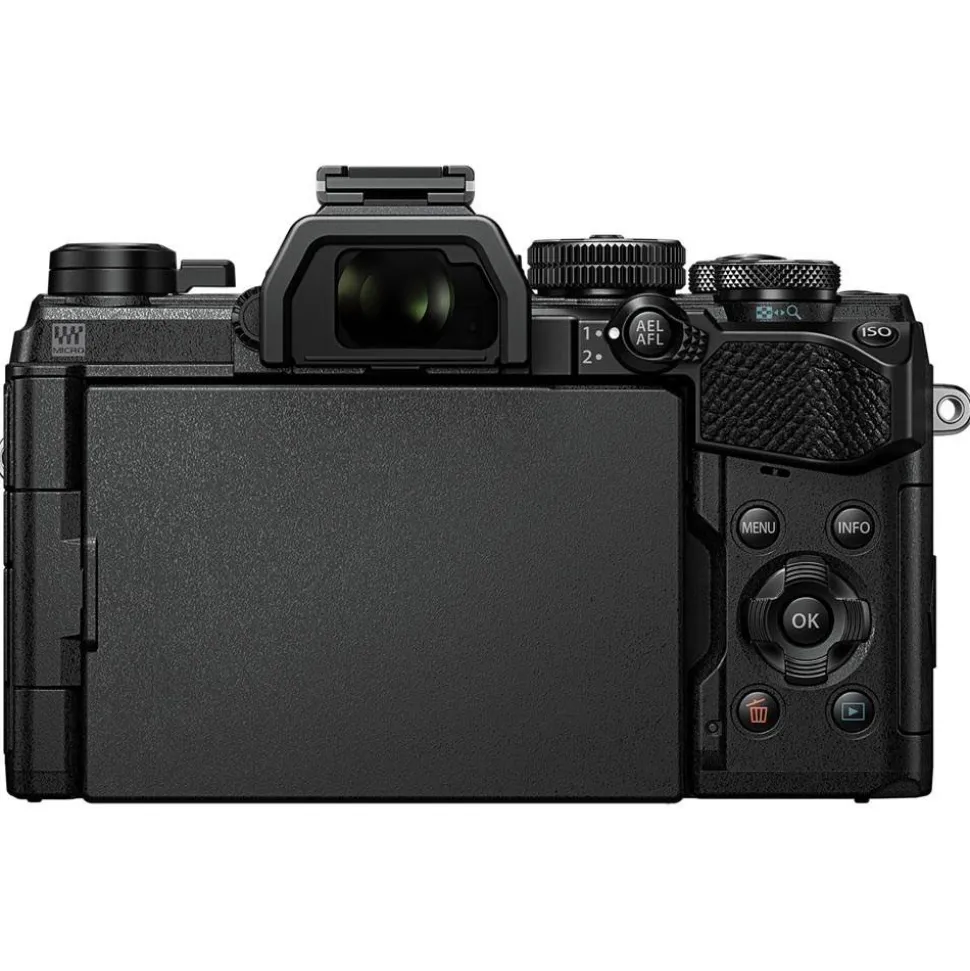

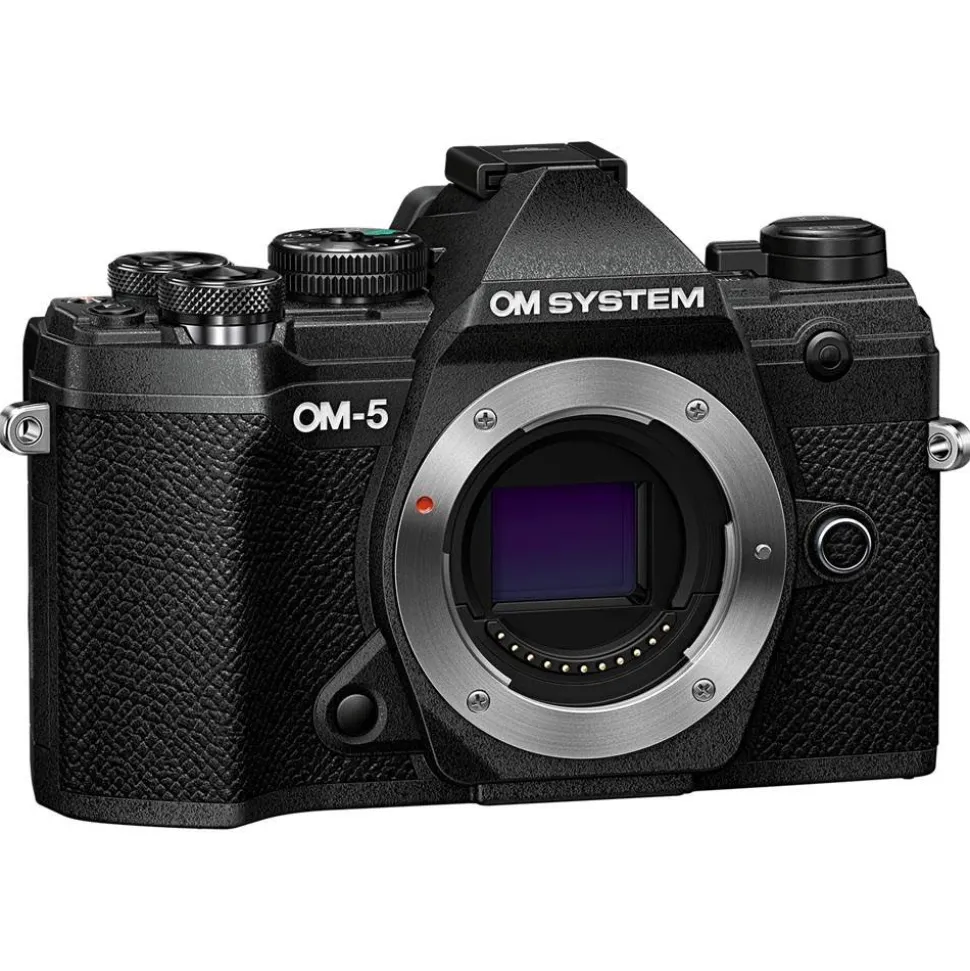

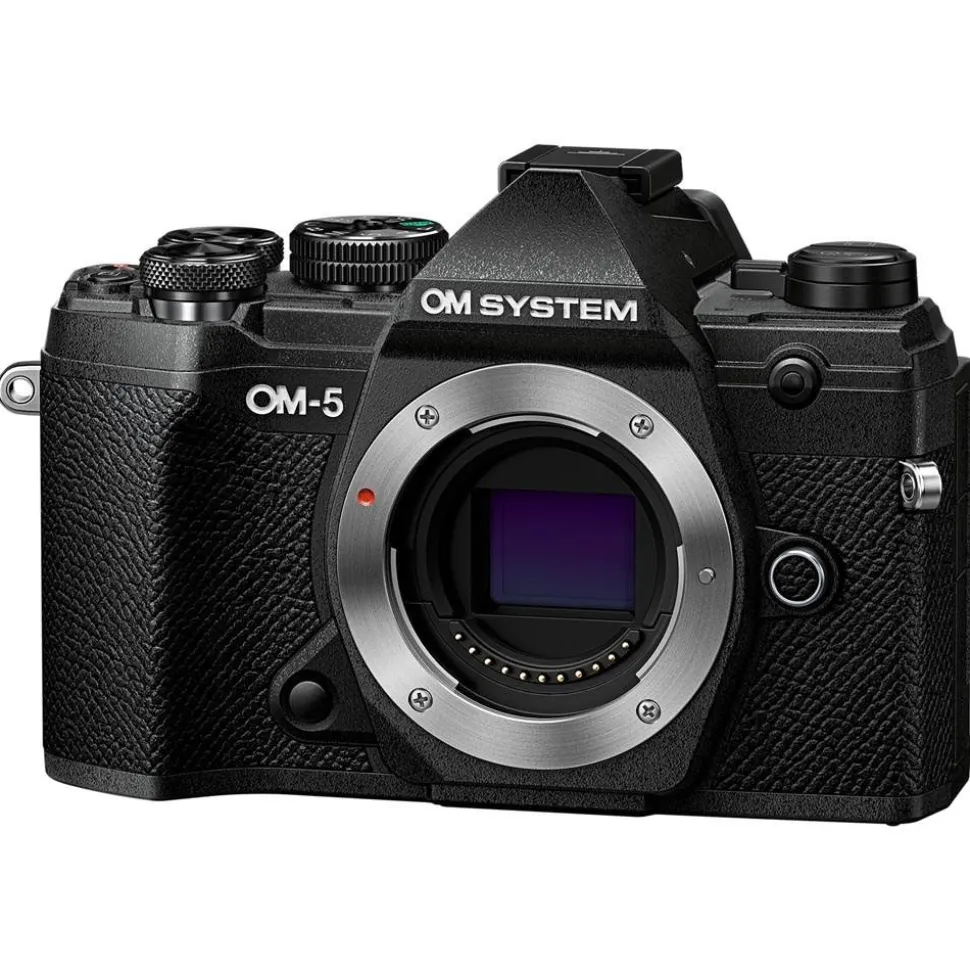

OM System OM-5 Digital Camera Body Black

• OM System’s second MFT camera, which comes packed with upgrades and new technology for action-packed content creation
• Improved 5-axis body stabilisation with 6.5-stops and up to 7.5-stops compensation when using compatible M.Zuiko lenses
• 20 megapixel Live MOS sensor which is compatible with phase detection AF for improved Face / Eye detection and tracking
• Blisteringly quick 30fps RAW, 50 megapixel handheld shots, Starry Sky AF and a host of other advanced features
• Record unlimited 4K 30p videos, 120fps in Full HD and capture a wide dynamic range with OM-Log400 picture profile

Key Features

• 20.4 megapixel Live MOS micro four thirds sensor with TruePic IX processor
• Class leading 5-axis body stabilisation up to 7.5-stops combined lens IS
• IP53 weather sealing designed for the outdoors
• Up to 30fps ProCapture high speed shooting
• Improved Face / Eye detection and tracking AF
• 50 megapixel handheld high-res shot and 80MP tripod mounted
• Starry Sky AF mode
• Live composites, B Mode and Live ND filter for long exposures
• No record limit 4K 30p video and new vertical video mode
• Up to 120fps high speed recording in full HD
• Flip screen for selfies and vlogging
• OM-Log400 profile with wide dynamic range
• Use as a web cam when connected through USB

OM System OM-5 Digital Camera Body Black Summary

Arriving as the second hybrid model to join the  is the adventure-ready OM System OM-5 Digital Camera Body (Black). It boasts a 20.4 megapixel Live MOS sensor, which is compatible with on-chip phase detection AF, for greatly improved Face and Eye AF. The camera offers class-leading 5-axis body stabilisation with up to 6.5-stops and 7.5-stops when using compatible  (Sync-IS), along with a host of new technology for your adventures.

AT ITS core is the fast TruePic IX image processor, which delivers advanced computational photography to process no limit 4K 30p video, vertical videos for social media, 50 megapixel handheld high-res shots, Live Compositing and up to 30fps RAW in ProCapture mode.

OM System has extended the OM-5’s versatility for any type of content creator with a new Starry Sky AF feature, wide dynamic range OM-Log400 profile and built-in web cam capabilities for creators to tell their story. The body is also weather sealed with an IP53 rating to help keep the camera dust-proof, splash-proof and freeze-proof. A built-in Live ND16 filter helps capture long exposures in-camera without needing an external ND filter, perfect for landscapes and city shots.

OM System OM-5 Digital Camera Body Black in More Detail

Compact, lightweight body with 5-axis Image Stabilisation

The OM SYSTEM OM-5 (black) packs 5-axis Image Stabilisation (IS) into a compact body that measures 125.3 x 85.2 x 49.7 mm and weighs just 366g (body only). IBIS delivers up to 6.5 stops of image stabilisation, which extends to 7.5 stops when combined with a compatible lens, thanks to 5-axis sync IS.

This powerful image stabilisation lets you shoot at slower shutter speeds, which is particularly beneficial where a tripod cannot be used and when travelling. Thanks to the renowned 20.37 million effective pixel Live MOS sensor and the high-performance TruePic IX image processing engine, the OM-5 delivers natural gradations in images with lower noise and high image quality, even at high ISO settings.

The OM-5 is also equipped with a 121-point all cross-type On-chip Phase Detection AF sensor, in order to be able to focus at various locations across the frame. This provides greater freedom for framing your shots and high-precision focusing. Starry Sky AF delivers accurate auto focusing to make it easier to capture astrophotography, which was previously difficult to achieve.

IP53 weather sealing

The OM-5 shares IP53 protection class dust-proof and splash-proof performance and freeze-proof protection to -10°C, for the same high level of weather resistance as the flagship OM-1. This allows you to focus on photo opportunities, even during punishing conditions without worrying about ruining equipment due to rain showers, snow or water droplets.

The camera is also equipped with Supersonic Wave Filter (SSWF), which significantly reduces issues with dust and dirt on the image sensor when changing lenses, perfect for those who need to change lenses outdoors. The compact BLS-50 battery and bundled USB-AC adapter can be used to charge the battery while it’s still in the camera.

Computational photography

Computational photography features helps to more easily capture photos that typically require specialist equipment or advanced . The OM SYSTEM OM-5 is packed with convenient, versatile computational photography features that provide inspiration for creative shooting, including High Res Shot and Live ND.

High-Res Shot

This model supports Handheld High-Res Shot, which merges multiple images to create approximately 50 Megapixel high-resolution images. With this feature you can enjoy handheld shooting from nearly any angle, while still being able to capture high-resolution images. Merging multiple images not only improves resolution, but also minimises noise for cleaner results. The popular Tripod High-Res Shot is also included on this model, which increases image resolution to around 80 megapixels for large sized printing and high levels of detail, while mounted on a .

Live ND

Achieve slow shutter speed effects up to ND16 (4 stops), similar to using an . This feature delivers long exposure effects even on ultra-wide-angle lenses, which cannot usually accommodate an ND filter without special mounting brackets. The effects can be viewed before capturing the image, using the viewfinder or on the LCD when LV Simulation is activated.

Pro Capture

Never miss a moment with Pro Capture, which begins recording once the shutter button is pressed halfway and records previous frames from the moment the shutter button is pressed fully. Pro Capture delivers high-speed sequential shooting up to 30 fps (AF/AE locked), up to 14 previous frames can be captured.

Focus Stacking

Focus Stacking captures eight shots at different focal positions in the frame and automatically generates a single image. This enables you to incorporate background defocusing effects without excessively stopping down the aperture to control depth of field that matches the subject. This feature is useful for macro shooting and landscapes.

Live Composite

With the Live Composite feature, users can easily capture beautiful shots while watching the image build on the Live View screen. This works even in situations where exposure is difficult to achieve, such as when shooting a city against a starry sky at night.

Keystone Compensation

Get straight verticals similar to shooting with a shift lens while viewing the effects in the Live View screen, while using vertical/horizontal simultaneous trapezoidal compensation and perspective enhancement. This is a great features for capturing buildings or other subjects while tilting the camera, which normally causes ‘lean’ in vertical lines.

Other useful content features include:

• Live Bulb
• Interval Shooting/Time Lapse Movie
• Focus Bracketing
• HDR
• Colour Creator
• Art Filter
• Fisheye Compensation

High-quality handheld 4K video and vertical video recording

Powerful 5-axis image stabilisation is compatible with video recording in the OM-5. When combined with dedicated video electronic stabilisation, it enables you to capture stable, hand-held 4K movies with no recording time limit. The camera utilises On-chip Phase Detection AF sensor for video focusing control, which delivers smooth focusing. OM-Log is LSO supported for a greater level of freedom when colour grading, to capture highlights and shadows without overexposing or underexposing shots.

Vertical video is recorded in vertical orientation on the camera and saved as vertical files, making it far easier to post on social media without special editing software. Users can also connect the high-res  to capture high-quality audio and the Slate Tone feature is available for easy audio data synchronisation while editing your movies.

Other features

• Supports UVC (USB Video Class)/UAC (USB Audio Class) for use as a high-quality web camera simply by connecting it to a computer via USB.
• Equipped with AF Target mode, which offers freedom over AF areas depending on subject movement and position, with selection of any odd number of points from 11 vertical and 11 horizontal points. Select from three levels of vertical and horizontal AF area movement steps.
• Equipped with exposure equalisation processing for coping with sudden changes in exposure between frames during interval shooting.

Huge range of compatible M.Zuiko MFT Lenses

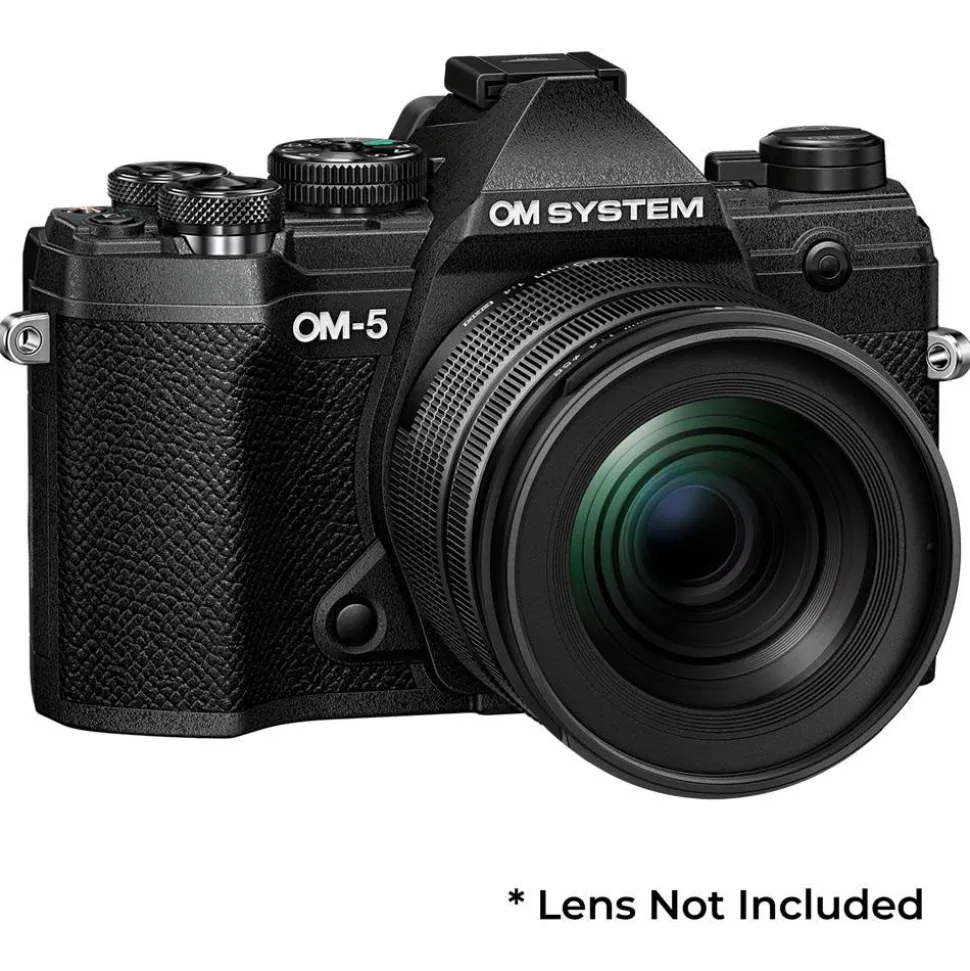

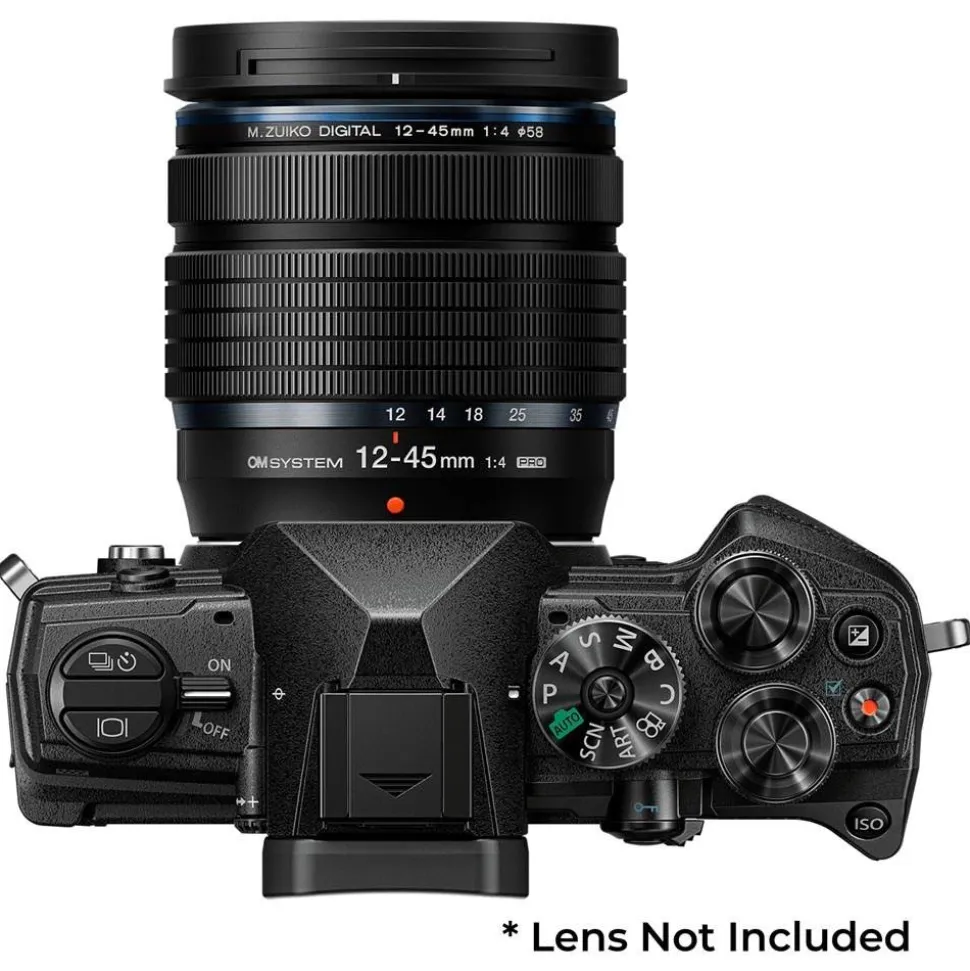

This OM System camera is available with a lens, in the  and you can also choose from huge range of  to complement the body. Whichever style of photography, video and hybrid shooting you enjoy there are endless possibilities from wide aperture zooms such as the  to all-in-one lenses including the . You’ll also discover a variety of compact primes, specialist macro lenses and third party options from Laowa, Sigma, Samyang, Tamron and Voigtlander. Read more about the body and kits in our .

Wide range of accessories

With such a wide range of  anyone new to the MFT system can instantly add essentials for even better content, while existing system users can employ many of their current accessories. To complement this body, choose from:

OM System OM-5 Sample photos

With  @85mm. Camera settings: 1/400sec. f/9. ISO 64

With  @40mm. Camera settings: 1/160sec. f/8. ISO 100

With  @117mm. Camera settings: 1/250sec. f/4. ISO 200

With  @117mm. Camera settings: 1/500sec. f/8. ISO 500

What’s in the Box

• OM System OM-5 MFT Digital Camera Body Black
• F-5AC USB-AC adapter
• BLS-50 Li-ion battery
• Eyecup
• USB Connection Cable
• USB-AC Adapter
• Shoulder strap
• Manual
• Warranty
