- Pro 4K camcorder featuring a built-in ultra wide to super telephoto 20x zoom lens with combined electronic and OIS
- Features a 1.0-type MOS Sensor with 15-megapixel effective resolution to capture up to 4K60p (HEVC) video
- Numerous features for solo filmmakers including built-in WiFi, two XLR inputs, USB-C 3.1 and Triple manual rings
- Capture professional 24bit PCM audio, use convenient built-in ND filters and enjoy extended battery life
- New Face detection AF/AE and 4K high-precision AF capture and track subjects across the frame
Key Features
- 1.0-type MOS sensor with 15-megapixel effective resolution
- Built-in wide angle Panasonic lens with 20x optical zoom (24.5-490mm full-frame equivalent)
- New Face detection AF/AE and 4K high-precision AF
- Stabilisation from 5-Axis hybrid OIS
- Capture 4K60p (HEVC) with 4K60p 4.2.0-10bit, 4K30p 4.2.2-10bit and 120 Slow 2-60 fps VFR
- Extensive connectivity through USB-C 3.1, built-in WiFi and a new Mic Holder
- Pro 24bit PCM audio with 2x XLR IN
- Built-in 1/4, 1/16, 1/64 ND filter
- Live-streaming in H.264/MPEG-4 AVC FHD

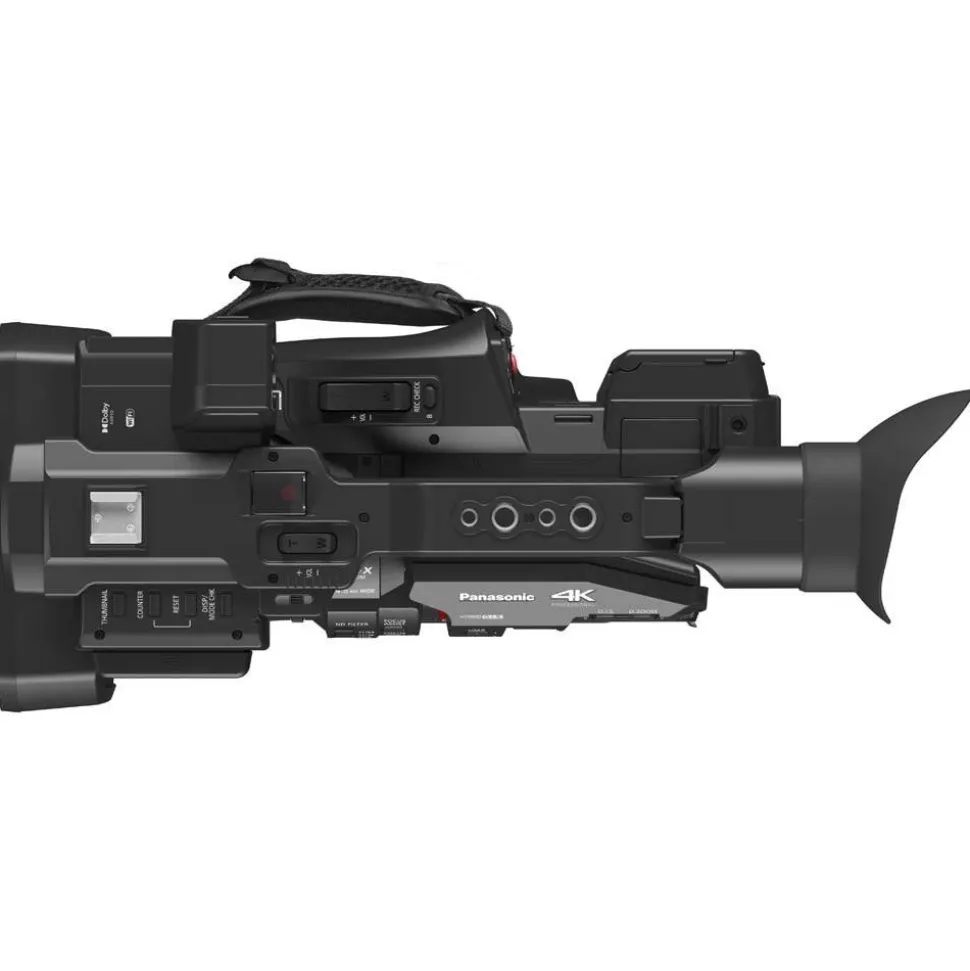

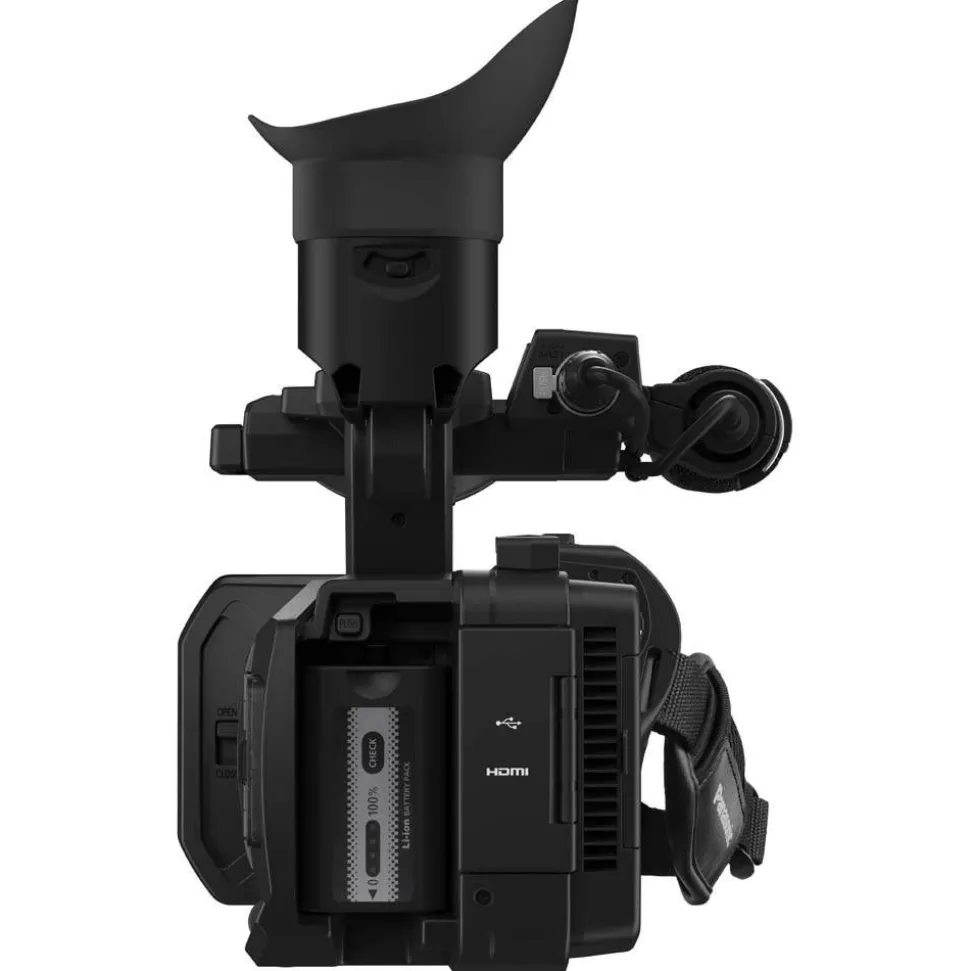

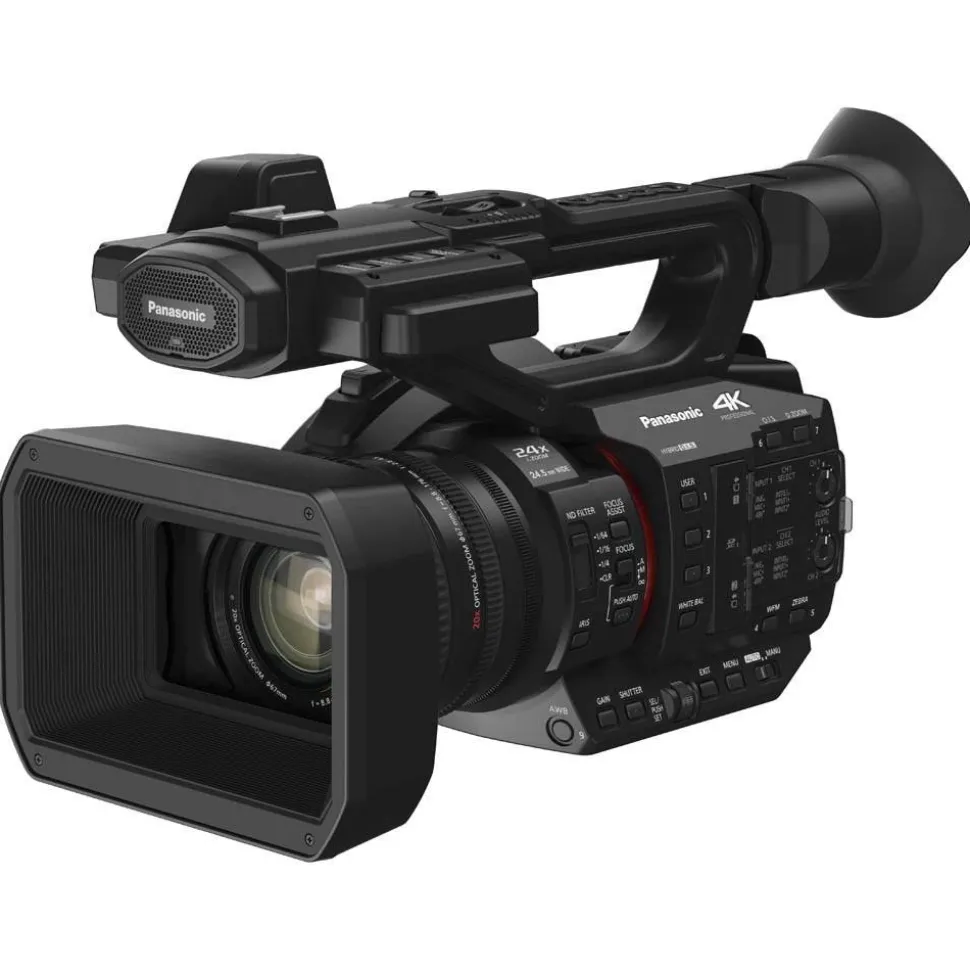

Panasonic HC-X20 Camcorder Summary
Designed for solo filmmakers and broadcast professionals, the Panasonic HC-X20 Camcorder captures stabilised 4K60p (HEVC) video with numerous features and upgrades. A built-in high-quality Panasonic lens provides a 35mm equivalent 20x optical zoom from ultra wide 24.5mm through to 490mm super telephoto range.
A variety of recording formats can be selected for different situations including 4K60p 4.2.0-10bit and 4K30p 4.2.2-10bit as well as 120 Super Slow 2-60 fps VFR. Panasonic added Face detection AF/AE, which acquires and tracks subjects using 4K high-precision AF. Professional audio I can be recorded in 24bit PCM audio using two XLR inputs, and built-in ND filters provide convenient adjustments in different ambient environments. The Panasonic HC-X20 Camcorder also offers exceptional battery performance, with up to 8h 50min. recording from an optional .
Panasonic HC-X20 UHD 4K Professional Camcorder in More Detail
Integrated 20x optical zoom lens
This HC-X20 and the simultaneously released , feature an integrated wide angle 24.5mm lens with 20x optical zoom, which provides an equivalent 24.5-490mm range. You can zoom to a maximum of approx. 32x FHD (24x UHD), while maintaining high-definition image quality.
5-Axis Hybrid O.I.S.
Electronic Image Stabilisation operates iIn addition to Optical Image Stabilisation in both UHD/FHD modes, detecting and correcting handshake in 5-axis, including rotational blurring. This provides powerful correction in a variety of unstable shooting conditions including when capturing low-angle and high-angle shots. Drive wear is reduced through the use of a Ball O.I.S. System which is designed to reduce the effects of minor movements.
Choose from:
- NORMAL (standard)
- STABLE (effective for fixed-frame shooting)
- PAN/TILT (effective in panning and tilting)
High-Speed, high-precision 4K AF technology
Panasonic AF performance is accurate and quick even in various 4K recording situations with great tracking performance and stability. Face detection AF quickly captures subjects even when they first enter the frame and subjects stay in focus even when obstacles pass across.
High-quality and versatile recording formats
The HC-X20 Camcorder offers numerous recording modes and formats including 422 LongGOP, 4:2:2 10Bit 30p and 4:2:0 10Bit 60p.
Super slow-motion recording VFR (2-60fps)
Record from 2 to 60 fps with 10-step VFR (Variable Frame Rate) to create slow-motion effects and quick motion effects. HD mode delivers a super-slow motion effect with a maximum 120 fps (59.94 Hz) or 100 fps (50 Hz). It supports high-quality 10-bit recording in FHD mode using the full sensor area, even at high frame rates.
ND filter and triple manual rings
The Panasonic HC-X20 Camcorder features triple manual rings on the lens barrel for Zoom, Focusand Iriscontrol. These manual functions ensure professional operation with fast and intuitive camera work.
You can also set focus ring operation and movement with Linear and Non Linear adjustment, and rotation angle when Linear is set.
Convenient built-in 1/4, 1/16, 1/64, or clear ND filters allow you to adjust according to shooting conditions.
Two SD memory card slots
With two  slots unlimited relay recording is achieved by changing SD cards, and provides various recording systems for high reliability. Images can be recorded simultaneously in 4K/UHD + FHD (50 M) or FHD (100 M or higher) + FHD (8 M) for an efficient workflow. Data can be recorded continuously by automatically switching from Slot 1 to Slot 2. Options include:
- Unlimited Relay Recording
- Simultaneous Recording
- Background Recording
Shoot in darkness using IR (Infrared)
Capture night scapes, animals and events in darkness using a built-in IR Cut Filter, which can be turned ON/OFF. Panasonic recommends 850-nm wavelength light.
Supports professional workflows
A number of features are included to support uninterrupted shooting such as a cable clamp on the hand belt, which prevents cable catching. Camera settings can be saved onto SD card to restore settings and multi-cam set-ups. An included new mic holder supports one-touch opening and closing while a fast zoom lever on the grip changes speed according to your input.
48kHz/24-bit high resolution PCM audio
2 x XLR Audio Inputs offer switchable 48-V phantom power supply/MIC/LINE with high resolution sound from 24-bit linear PCM recording in MOV mode. There are also two volume controls catering for each channel, an OSD level meter and headphone jack.
Longer battery life
Enjoy longer recording times up to approximately 8h 50min minutes from a single  and compatibility with:
Pro video assist functions
Panasonic has included a number of assist functions which can be displayed on a sub screen of the LCD. These include Waveform Monitor (WFM), Vector Scope and Zebra Patterns. High precision Flash Band Correction, Luminance adjustment and level horizon gauge.
Versatile Network Functionality
Live Streaming
- Connect directly to Facebook or YouTube Live with support for RTMP (Real Time Messaging Protocol)
- Supports streaming distribution of RTMP-compatible content, such as live video distribution services
- Recording onto SD cards in the camera is also possible while streaming with modes below FHD
- Perfect for shooting sports events, concerts or ENG
Learn more about the  here.
Panasonic HC-X20 Camcorder Specifications
| SENSOR SECTION | Â |
| Image Sensor | 1.0-type MOS Sensor (For Europe) – 1.0-inch MOS Sensor (For North America / Asia) |
| Effective Pixels | 15.03 megapixels |
| Latitude | 13 stops (V-log) |
| LENS SECTION | Â |
| F Value | F2.8 ? 4.5 |
| Optical Zoom | 20x |
| Focal Length | 8.8 ? 176 mm |
| 35 mm Film Camera Equivalent | 24.5 ? 490 mm |
| Filter Diameter | 67 mm |
| Lens Brand | Panasonic Lens |
| CAMERA SECTION | Â |
| Minimum Illumination | 0.6 lx (F2.8, Super Gain +, when shutter speed is 1/30 sec.) |
| Focus | Auto / Manual |
| Zoom | Â |
| i.Zoom OFF | 20x |
| i.Zoom ON | Max. 32x (UHD 24x) |
| Digital Zoom | 2x / 5x / 10x |
| ND Filter | 1/4, 1/16, 1/64, OFF |
| IR Filter | Incorporates the ON/OFF control function |
| White Balance | Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed |
| Recording Media | SDHC/SDXC Memory Card, UHS-I compatible |
| Recording Format | MOV, MP4, AVCHD |
| System Frequency | 59.94Hz / 50.00Hz |
| LIVE STREAMING | Â |
| Video Compression Format | H.264/MPEG-4 AVC Main Profile, High Profile |
| Video Resolution | 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 |
| Streaming Method | Unicast, Multicast |
| Frame Rate | System frequency = 59.94 Hz: 60 fps, 30 fps, 24 fps – System frequency = 50.00 Hz: 50 fps, 25 fps |
| Bit Rate | 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps |
| Audio Compression Format | AAC-LC, 48 kHz/16 bit, 2ch |
| Network Protocol | RTSP/RTP/RTMP/RTMPS |
| STILL IMAGE SECTION | Â |
| Recording Format | JPEG (DCF/Exif2.2) |
| Recording Image Size* | Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9) |
| Power Supply | 7.28V (Battery) / 12V (AC Adaptor) |
| Power Consumption | 18.5W (LCD Monitor) |
| Dimensions (W x H x D) | Approx. 171 x 195 x 343 mm (6.74 x 7.68 x 13.51 inch) |
| LCD Monitor | 8.88 cm (3.5-inch) Wide LCDÂ monitor (About 2,760,000 dots) (For Europe) – .5-inch Wide LCDÂ monitor (About 2,760,000 dots) (For North America / Asia) |
| Viewfinder | 1.0 cm (0.39-inch) Wide OLED EVF (About 1,770,000 dots) (For Europe) – 0.39-inch Wide OLED EVF (About 1,770,000 dots) (For North America / Asia) |
| Manual Ring | Focus / Zoom / Iris |
| Accessory Shoe | Yes |
What’s in the Box
- Panasonic HC-X20 UHD 4K Professional Camcorder
- AC Adaptor
- AC Cable
- Rechargeable Battery Pack (5,900mAh)
- Battery Charger
- Microphone Holder
- Microphone Holder Screws
- Input Terminal Cap
- Eye Cup
- Lens Hood
