Panasonic Lumix S5 II X Camera with S PRO 24-70mm f/2.8 Lens Kit

The versatile Panasonic Lumix S5 II X Camera with S PRO 24-70mm f/2.8 Lens Kit is a professional hybrid setup for a range of everyday subjects including portraits, landscapes and video content.

Key Features

Camera

• 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording
• Supports Apple Pro Res RAW video output to Atomos recorders like the
• Support for wired and wireless IP streaming and USB tethering
• Newly developed 24 megapixel full-frame CMOS sensor with phase-detection AF
• Hybrid Phase Detection Autofocus with 779-area metering
• High-speed imaging engine co-developed with Leica in the L2 Technology partnership
• 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps internal
• HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps
• 14+ stop V-Log/V-Gamut and new REAL TIME LUT function
• Newly added Waveform Monitor, Vectorscope and Zebra Pattern
• Improved 48kHz/24-bit audio and high-resolution 96kHz/24-bit recording with external and XLR microphones
• Dual UHS-II SD card slots support Relay, Backupand Allocation
• Up to 9fps with mechanical shutter and 30fps with electronic shutter (up to 300 images)
• 96 megapixel High Resolution Mode
• Dual Native ISO sensitivity
• Improved image stabilisation with new Active I.S. for smoother video recording
• Upgraded useability with new 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder
• Full-sized HDMI Type A terminal, high-speed USB 3.2 Gen 2 and Wi-Fi 5GHz connectivity
• Improved cooling for unlimited recording in key video modes
• Robust body with magnesium alloy die-cast front and rear frames and splash and dust resistant construction

Lens

• Large aperture standard zoom lens
• Constant F/2.8 high-speed maximum aperture
• Ultra-High Refractive Index
• Dust/splash-resistant

Panasonic Lumix S5 II X Camera with S PRO 24-70mm f/2.8 Lens Kit Summary

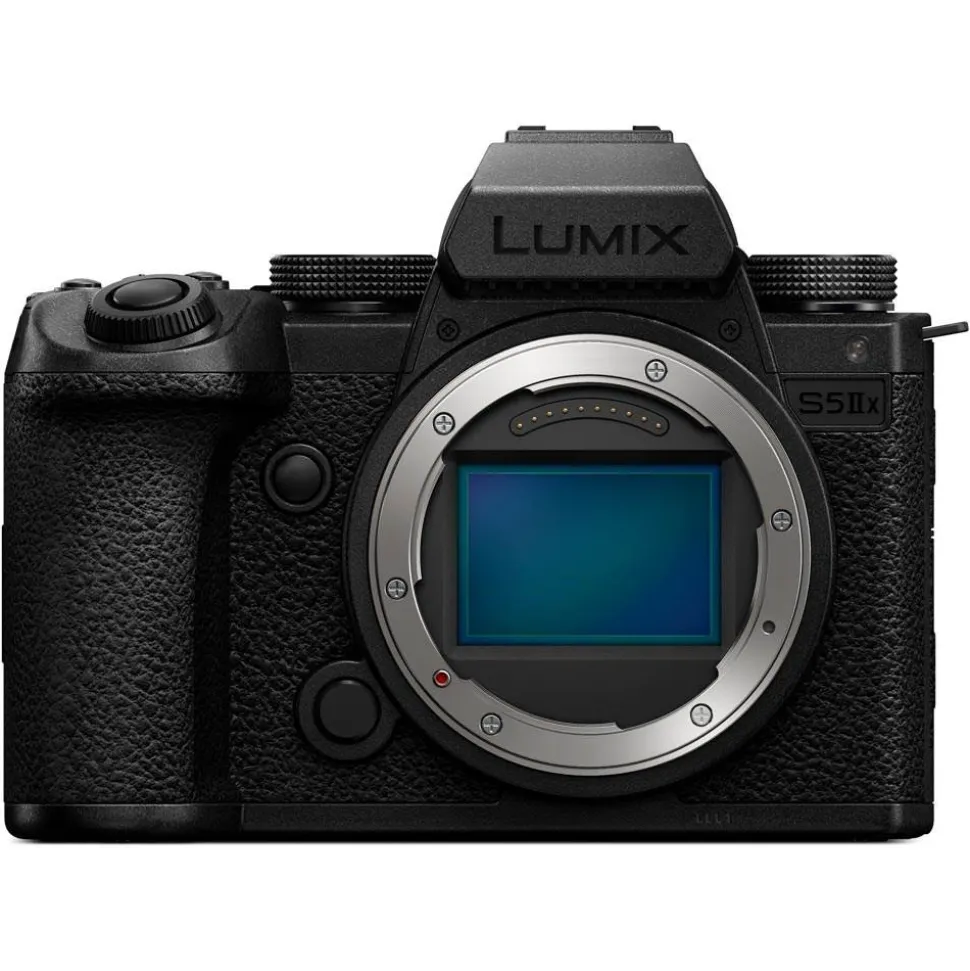

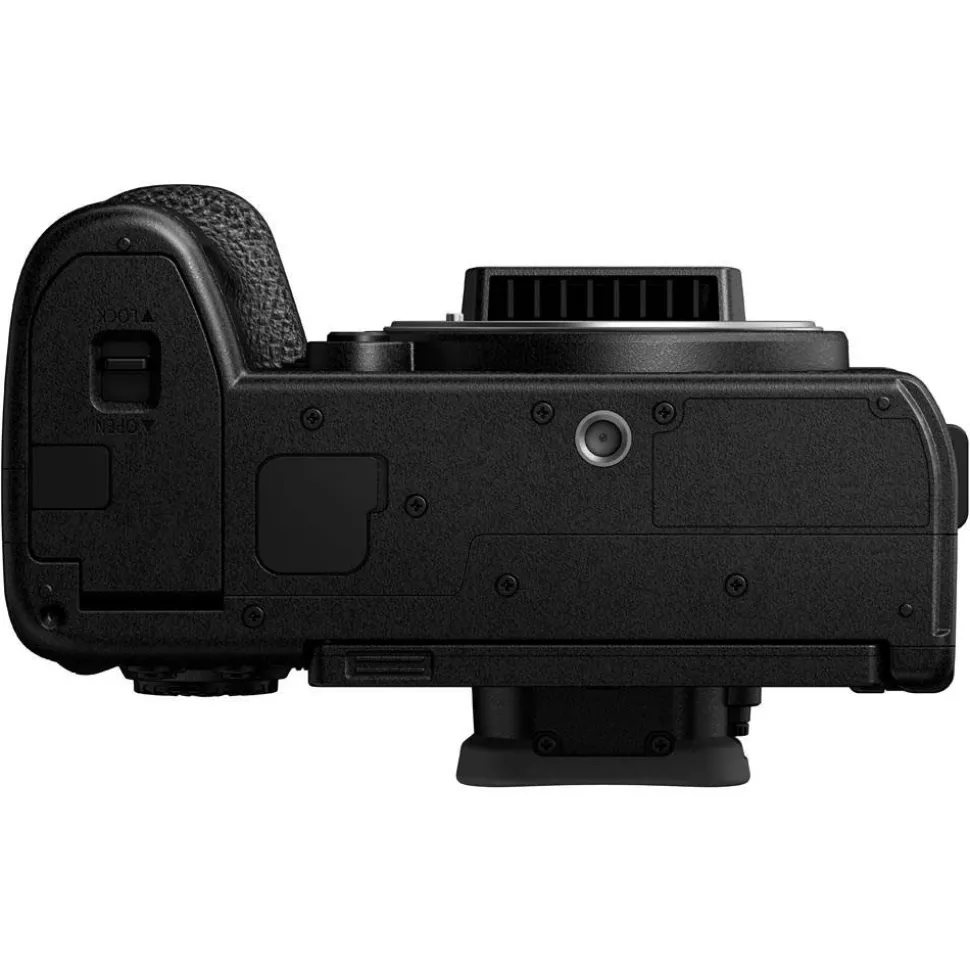

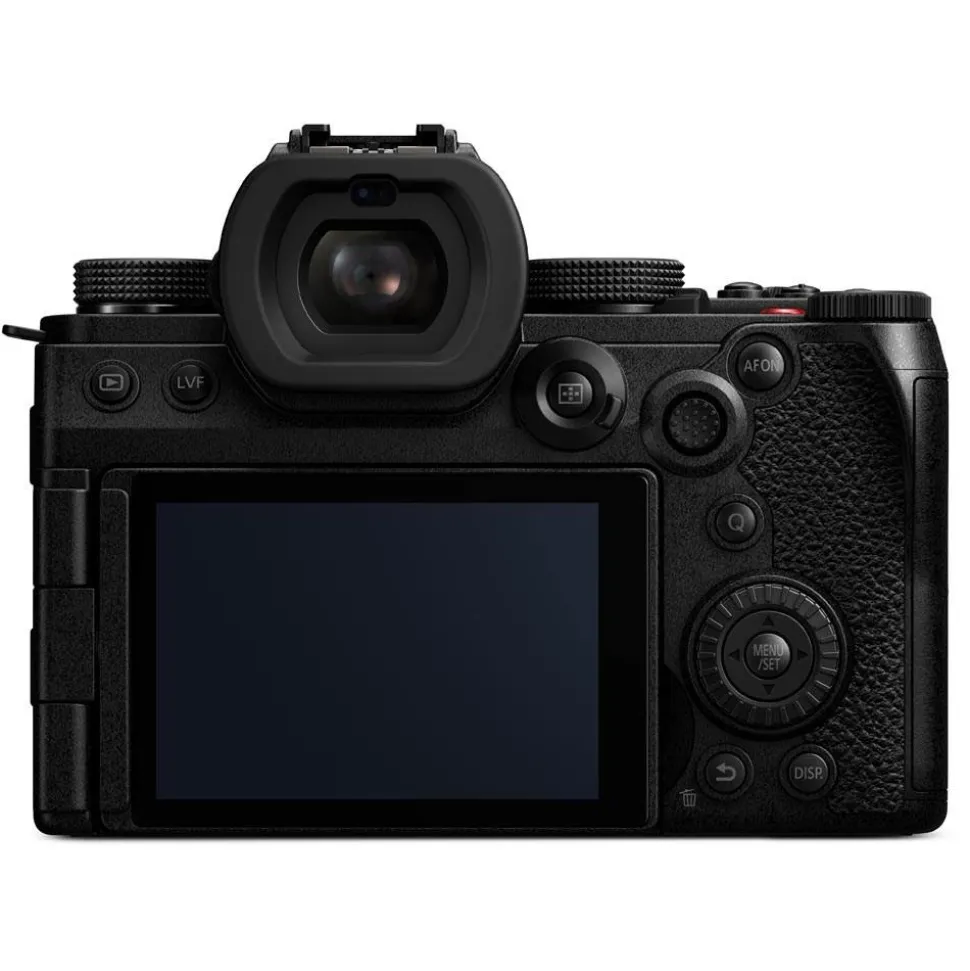

Panasonic Lumix S5 II X Black Video Edition L-Mount Camera Body

Boasting a sleek matte black design and powerful new capabilities for hybrid content creators, the Panasonic Lumix S5 II X Black Video Edition L-Mount Camera Body adds the ability to output Apple Pro Res RAW over HDMI. It also offers ALL-Intra Recording, IP streaming (wired and wireless) as well as USB tethering, opening up a range of high-quality streaming options, directly from the camera body.

The camera excels for video capture, with internal recording options as well as output over full-sized HDMI. These include 6K recording in 4:2:0 10-bit (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps, with a new fan removing any recording limits when using key video modes.

Joining the range of  alongside the second generation standard edition , the S5 II X Black provides a host of upgrades to the body, software and internal hardwear. These include a newly developed 24 megapixel full-frame CMOS sensor with fast readout speeds and reduced rolling shutter, along with a new high-speed processor, co-developed with Leica in the L2 Alliance technology alliance. This combination powers the first ever Hybrid Phase Detection Autofocus for Lumix cameras, which greatly improves AF capabilities from 779-area metering, as well as providing blistering burst shooting speeds of 9fps in mechanical shutter and 30fps when using electronic shutter.

Panasonic Lumix S5 II X Black Camera Body in More Detail

Features update May 9th, 2023

In addition to ProRes RAW, Blackmagic RAW is now available for the Panasonic Lumix S5 II X and there is also additional support for  and , on top of existing support for the Ninja V+. Please note that firmware updates to the external recorders may be required in order to achieve these recording modes. This could be the perfect time to  and update to the enhanced Lumix S5 II X.

All recording mode can be set as follows:

					59.94Hz	50.00Hz
Full-frame	5.9K	16:9	5888×3312	12-bit	29.97p 23.98p	25.00p
APS-C	4.1K	17:9	4128×2176	12-bit	59.94p 29.97p 23.98p	50.00p 25.00p
	3.5K	4:3	3536×2656	12-bit	29.97p 23.98p	50.00p 25.00p

*Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.

*Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same colour grading as V-Log/V-Gamut

https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/

*Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.

*DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840×2160.

*All functions may not be available depending on the situation.

Best ever AF performance

The L2 Technology partnership between LEICA and Lumix has resulted in a newly developed imaging engine, along with a new 24-megapixel full-frame CMOS sensor. This lead to the release of the S5 II X alongside the original Lumix S5 II, which are the first  to offer Hybrid Phase Detection Autofocus (PDAF).

The camera employs a new Phase Hybrid AF system, which combines PDAF with Contrast Detect AF for fast and dependable autofocus capabilities, while providing 779-area metering and a new Pinpoint AF. This new AF system can detect target subjects in difficult conditions such as low light, or when backlit and once locked on, will continue tracking even with other moving objects in the frame. Continuous AF during zooming1 and AF micro adjustment are also available.

1 Conventional zoom lenses require firmware update to use Continuous AF during zooming.

Powerful video capabilities

The LUMIX S5IIX is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. Additionally, the S5II X can support Apple Pro Res RAW video output to Atomos. It also supports wired2 and wireless IP streaming and USB tethering.

The S5 II X new engine presents a range of video recording capabilities, including internal:

• 6K 4:2:0 10-bit (3:2) at 30fps
• 5.9K (16:9) at 30fps
• C4K and 4K 4:2:2 at up to 60fps

A new low-profile heat management system has also been developed, which ensures unlimited recording times1 without increasing the size of the camera body. The Lumix S5 II X camera body also support HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.

A range of picture profiles provide the ability to record 14+ stops of dynamic range when using V-Log/V-Gamut, as well as a new REAL TIME LUTfunction. This allows you to upload colour grading LUTs from an  which are directly applied in-camera, rather than after recording in post-production.

Features such as Waveform Monitor, Vectorscopeand Zebra Patternhave also been added in response to requests from professional users, along with System Frequency (24.00Hz) and Synchro Scan, amongst other pro features.

Audio capabilities have also been enhanced, with clear and realistic 48kHz/24-bit audio, which can be recorded via the built-in mic, or an . High-resolution 96kHz/24-bit recording is also possible when using external and XLR microphones, bringing the S5 II X closer in-line with audio capabilities first introduced on the , simply add the  for XLR audio capabilities.

1When the camera is used at recommended operating temperature 0-40 degrees C. 6K and 5.9K at 30p/25p video recording stops once when continuous recording time exceeds 30 minutes if [Thermal Management] is set to [STANDARD].

2Requires USB-LAN adapter, sold separately.

Pro-level photo and video

Thanks to a series of new and improved features the Lumix S5 II X is capable of delivering truly stunning photo and video performance. Capture all the action with high-speed burst shooting at up to 9fps with mechanical shutter and 30fps when using electronic shutter, for up to 300 images.

High Resolution Mode is available for RAW and JPEG to create astounding 96-megapixel stitched shots, while Dual Native ISO sensitivity minimises noise and provides a maximum ISO of 51200 (up to 204800 when extended).

Better image stabilisation

The Lumix S5 II X also boasts an upgraded 5-axis image stabilisation system, to improve handheld shooting across a wide range of conditions and situations. New Active I.S. delivers highly stable video recording by optimising horizontal, verticaland rotationalcorrection, with up to 200%2 improvement compared to conventional stabilisation. Active I.S. is especially effective in what would typically be challenging conditions for handheld shooting, such as recording while using telephoto lenses or while walking.

1Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used. Firmware must be updated to the latest version.

2Compared with Lumix S5. Focal length 20mm, when using S-R2060.

Advanced operation for solo creators

A highly refined shooting experience allows creators to achieve excellent results with a more streamlined workflow thanks to features such as AWB Lock, MF Assist(available for both video1 and photo) and a new Live Cropfunction, which records video footage using the entire sensor surface enabling the user to crop 4K and FHD images afterwards.

A new easy-to-operate 8-way joystick further enhances usability as does the expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.

1Up to 60p. Does not work in Variable Frame Rate mode.

Improved reliability and connectivity

The camera is built to robust standards for demanding use in the field, with magnesium alloy die-cast front and rear frames plus a splash and dust resistant1 construction.

Connectivity has been improved over the previous model, with the LUMIX S5 II X featuring a full-size HDMI Type A terminal, high-speed USB 3.2 Gen 2 and a cable lock holder to prevent unwanted unplugging. Wireless connectivity has been improved too, adding Wi-Fi 5GHz2 to 2.4GHz, which provides a fast, stable connection with smartphones and tablets. Dual card slots (both UHS-II) support Relay Recording, Backup Recording and Allocation Recording and the 2200 mAh high-capacity battery can be recharged via AC or USB.

1 Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

Huge range L-Mount lenses

Along with a diverse range of accessories, users can enjoy building an extensive collection of  from Panasonic, Leica, Sigma and third party manufactures such as Laowa. Options include the , which launched at the same time as the camera and numerous other focal lengths, suitable for stills and video.

Diverse range of camera accessories

Discover a wide range of  to extend your creative potential, and if you’ve upgraded from the first generation body you can continue using the same batteries, grip, memory cards and other accessories.

• as well as third party mics including the  and , amongst many more.
• The camera is compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed C,  and .
• Add a spare  (same as S5), which also fits the compatible

Firmware updates for enhanced functionality

Panasonic is well known for enhancing camera performance through regular firmware updates and have already announced a pending update, which will add new functions including RAW data output and Live View Composite.

Discover more

Alongside this video-centric matte black camera, Panasonic has released lens kits and a standard body, which you can learn more about in our . Options include:

• Lumix S5 II X Black Camera Body Only

Panasonic Lumix S Pro 24-70mm f/2.8 Lens for L-Mount

The Lumix S Pro 24-70mm f/2.8 Lens from Panasonic is a standard focal width workhorse zoom lens for full frame L-Mount mirrorless cameras. for the LUMIX S Series full-frame mirrorless cameras. Lumix S Pro models are aimed at advanced enthusiast and professional users to obtain the best possible optics available for their work.

LUMIX S PRO 24-70mm F2.8 in Detail

The LUMIX S PRO 24-70mm F2.8 is a large-aperture standard zoom lens that boasts high image quality across the entire zoom range. The optical performance of this LUMIX S PRO lens is remarkably high to ensure it satisfies the stringent certification standards of Leica Camera AG.

Offering a versatile set of focal lengths that are ideal for a wide range of subjects, including landscape, documentary and portraits, the lens features stunningly high resolution and high contrast from its widest to its longest focal lengths. The constant F2.8 high-speed maximum aperture provides smooth defocus transition from the focus peak to out-of-focus areas to achieve beautiful bokeh as well as a three-dimensional effect that makes the subject stand out from the background.

Comprising 18 elements in 16 groups, the LUMIX S PRO 24-70mm F2.8 uses 3 aspherical elements and 4 ED (Extra-low Dispersion) lenses to efficiently suppress both axial and transverse chromatic aberration so images are rendered sharp and coloured fringing is avoided. Astigmatism is also corrected by these aspherical lenses, to produce clear detail right across the image area. Furthermore, the UHR (Ultra-High Refractive Index) lens achieves uniform image quality right to the edges of the image while enabling for a more compact lens unit.

A double focus system combining a linear motor and a stepping motor achieves sensor drive at a maximum speed of 480 fps. This provides fast, high-precision AF to ensure that important photo opportunities are never missed. The adoption of a focus clutch mechanism enables instant AF/MF switching as well as accurate manual focusing. The LUMIX S PRO 24-70mm F2.8 also excels when used for shooting video as it features a design mechanism to suppress focus breathing – a critical issue that affects most interchangeable zoom lenses designed for still photography.

The rugged dust/splash-resistant design will withstand use in harsh conditions down to -10°C, so the lens can be used in a wide range of environments. The lens has an 82mm filter thread and uses an 11-bladed circular aperture diaphragm for smooth reproduction of out-of-focus areas and highlights.

Panasonic Lumix S Pro 24-70mm f/2.8 Lens for L-Mount SPECIFICATIONS

Lens construction	18 elements in 16 groups (3 aspherical lenses, 4 ED lenses, 1 UHR lens)
Mount	L-Mount
Optical image Stabiliser	No
Focal Length	24-70mm
Aperture Type	11 diaphragm blades / Circular aperture diaphragm
Maximum Aperture	f/2.8
Minimum Aperture	f/22
Closest focusing distance	0.37m
Maximum magnification	Approx. 0.25x
Dagonal angle of view	84°(Wide) – 34°(Tele)
Dust and Splash resistant	Yes*
Recommended Operating Temperature	-10oC to 40oC
Filter Size	f82mm
Overall Length	Approx. 140mm
Weight	Approx. 935g

What’s in the Box

• Panasonic Lumix S5 II X Matte Black Video Edition full-frame L-Mount Camera Body
• Body Cap
• Hot Shoe Cover
• Cover for the Battery Grip Connector
• Shoulder Strap
• Battery Pack

Offers: Price Drop

Offer Category: N/A

Offer Product Type: N/A

Model: N/A

AE Bracketing: N/A

Autofocus Modes: N/A

Articulated Screen: N/A

Aperture priority: Yes

Battery: N/A

Built-in flash: N/A

Battery Life (CIPA): 370

Camera CIPA image stabilization rating: N/A

Colour: N/A

Continuous drive (fps): 9

Custom white balance: Yes

Digital zoom: N/A

Effective pixels (megapixels): 24

Environmental Sealing: N/A

Exposure compensation: N/A

External flash: Yes

Flash range (metres): N/A

Focal length (equiv.): N/A

Focal length multiplier: N/A

Flash modes: N/A

GPS: N/A

HDMI Port: N/A

Headphone port: Yes

Height (mm): 102

Length (mm): N/A

Width (mm): 134

Weight (g): N/A

Weight (inc. batteries) (g): 740

Image ratio w:h: N/A

Camera Image stabilization: N/A

ISO: N/A

JPEG quality levels: N/A

Live view: Yes

Camera Lens mount: N/A

Manual exposure mode: Yes

Maximum shutter speed (electronic): N/A

Maximum ISO: N/A

Maximum ISO (boosted): 204800

Max resolution: N/A

Maximum shutter speed (seconds): N/A

Maximum aperture: N/A

Manual focus: N/A

Microphone: N/A

Microphone port: Yes

Camera Minimum focus distance (cm): N/A

Minimum ISO: N/A

Minimum ISO (boosted): 50

Minimum macro focus distance (cm): N/A

Minimum shutter speed (seconds): N/A

Metering modes: N/A

Number of focus points: 779

Number of white balance presets: N/A

Optical zoom multiplier: N/A

Orientation sensor: Yes

Other resolutions: N/A

Processor: N/A

Remote control: N/A

Screen dots: N/A

Screen size: N/A

Screen type: N/A

Self-timer: Yes

Shutter priority: Yes

Speaker: N/A

Sensor photo detectors (megapixels): 25

Sensor size: N/A

Sensor type: N/A

Storage types: N/A

Subject / scene modes: N/A

Timelapse recording: N/A

Touchscreen: Yes

Camera Type: N/A

Uncompressed format: N/A

Camera USB: N/A

USB charging: Yes

Viewfinder coverage: N/A

Viewfinder magnification: N/A

Viewfinder resolution: 4

Viewfinder type: N/A

Video formats: N/A

Video Mode Categories: N/A

Video Modes: N/A

WB Bracketing: Yes

Wireless: N/A

Notes: N/A
