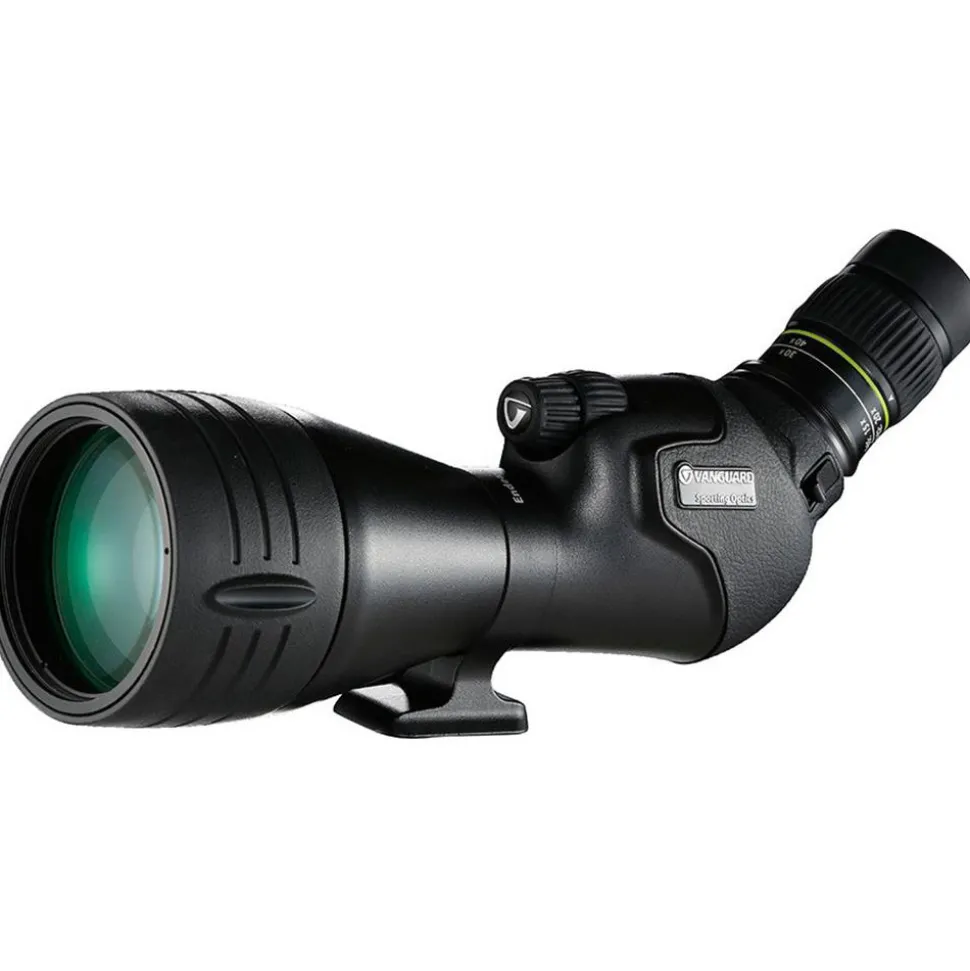

Vanguard Endeavor HD 82A Spotting Scope

The Endeavor HD 82A is an angled spotting scope with an optical system that employs extra-low dispersion glass (ED) to ensure accurate colour rendition and virtually eliminate colour fringing.

• 20-60x Eyepiece Magnification
• 82mm diameter objective lens
• Extra-Low Dispersion Glass Elements
• Fully Multicoated Optics
• Stacked Centre Focus Control, with Fine Focus for delicate adjustments
• Angled View Eyepiece
• Nitrogen-Filled Fogproof / Waterproof
• Magnesium Housing
• Tripod Mounting Shoe
• Rubber Armored Body
• Removable protective cover
• Built-In Sunshield
• Body can be rotated to allow the eyepeice to be moved to the most comfortable viewing position, for example round 90° for use when lying down

The Endeavor HD range can be used for digiscoping with a PA-202 Digiscope Adaptor that can fit a 52/58mm DSLR/Mirrorless Camera lens.

The angled view Endeavor HD 82A Spotting Scope combines a nitrogen-filled magnesium housing and a fully multicoated optical path to create a well-equipped zoom optic for intermediate to long-range observation. Endeavor HD series features an extra-low dispersion (ED) lens system and phase-corrected BaK4 prisms, which maximise light transmission and produce colour faithful images that are rich with contrast.

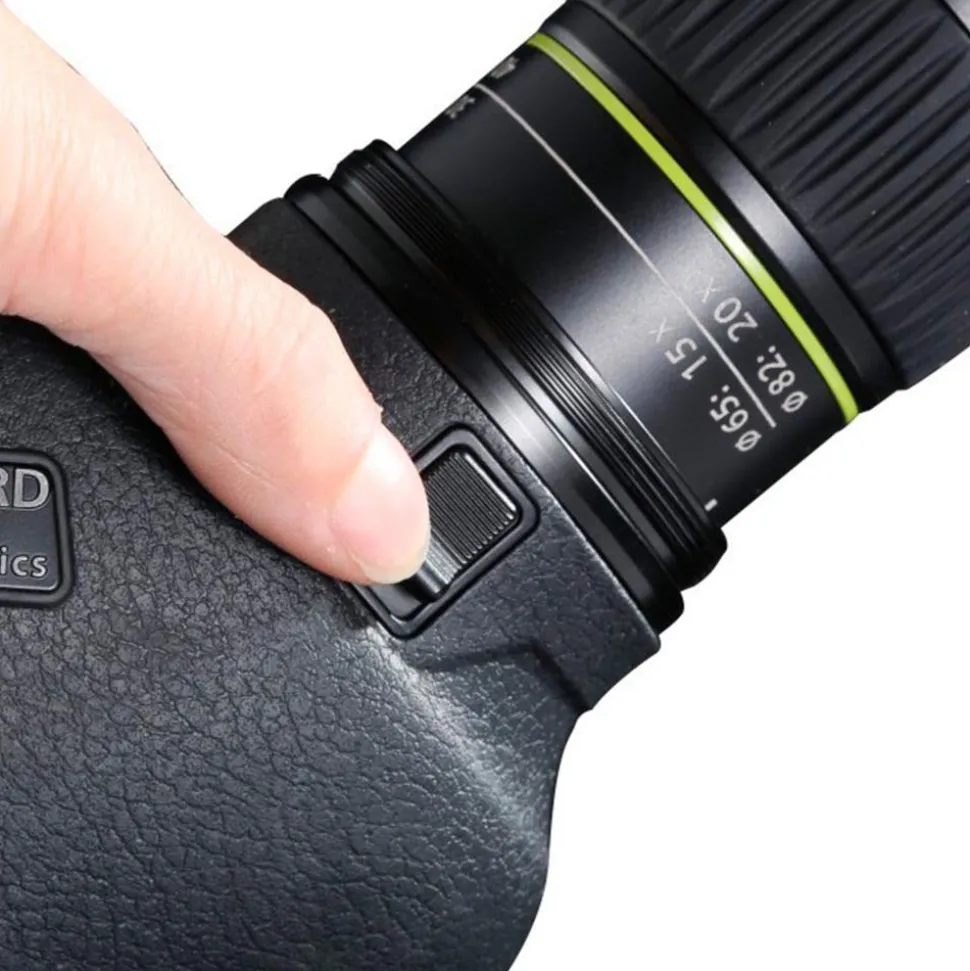

This version of the Endeavor HD spotting scope includes a 20-60x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.1-1.0° angle of view complement the eyepiece’s long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.

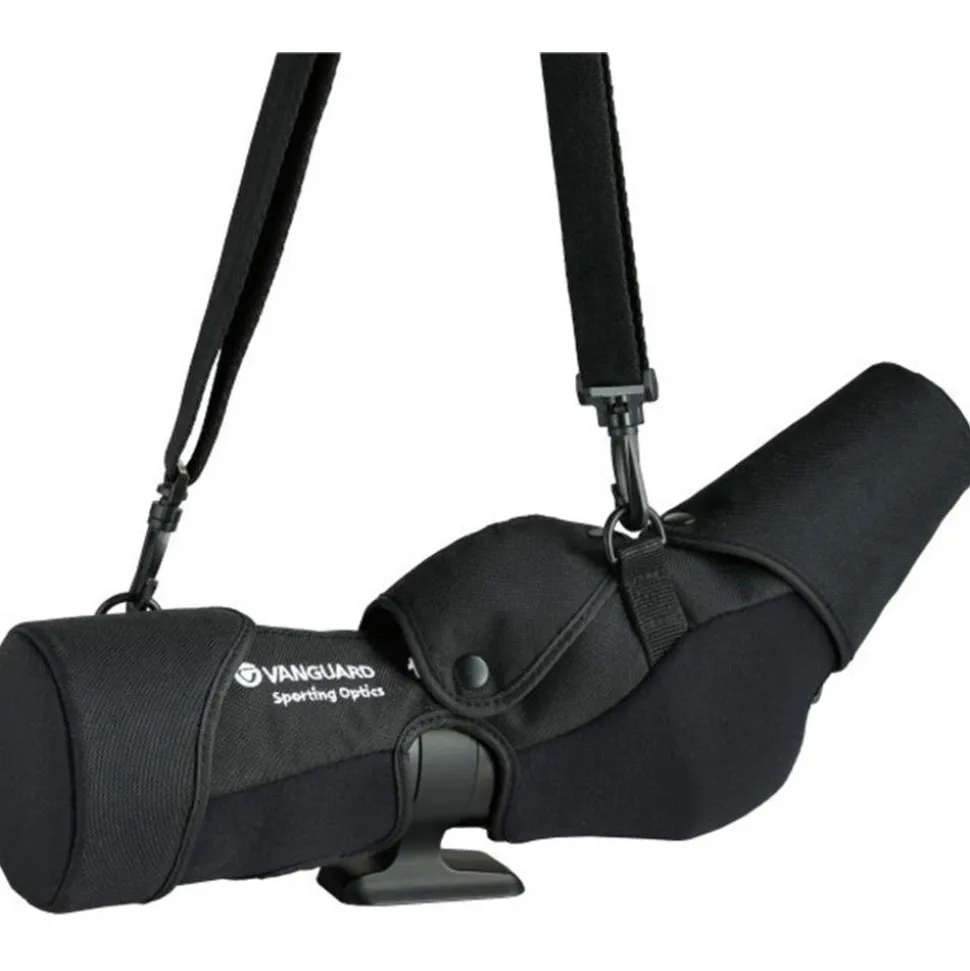

In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope’s functionality. A stacked dual-focus mechanism enables the observer to make fine and coarse focus adjustments. The tripod mounting foot has a standard 1/4″ socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom fit raincoat carrying case help to make the Endeavor HD a full-featured spotting scope for outdoor use.

Optical Performance

• 20-60x magnification, 82mm objective
• Extra-low dispersion glass elements, BaK4 prisms
• Fully multicoated optics
• 2.1-1.0° angle of view
• 19.7 ft close focus distance (at 20x)

Use and Handling

• Angled view eyepiece is inclined 45° from the objective lens

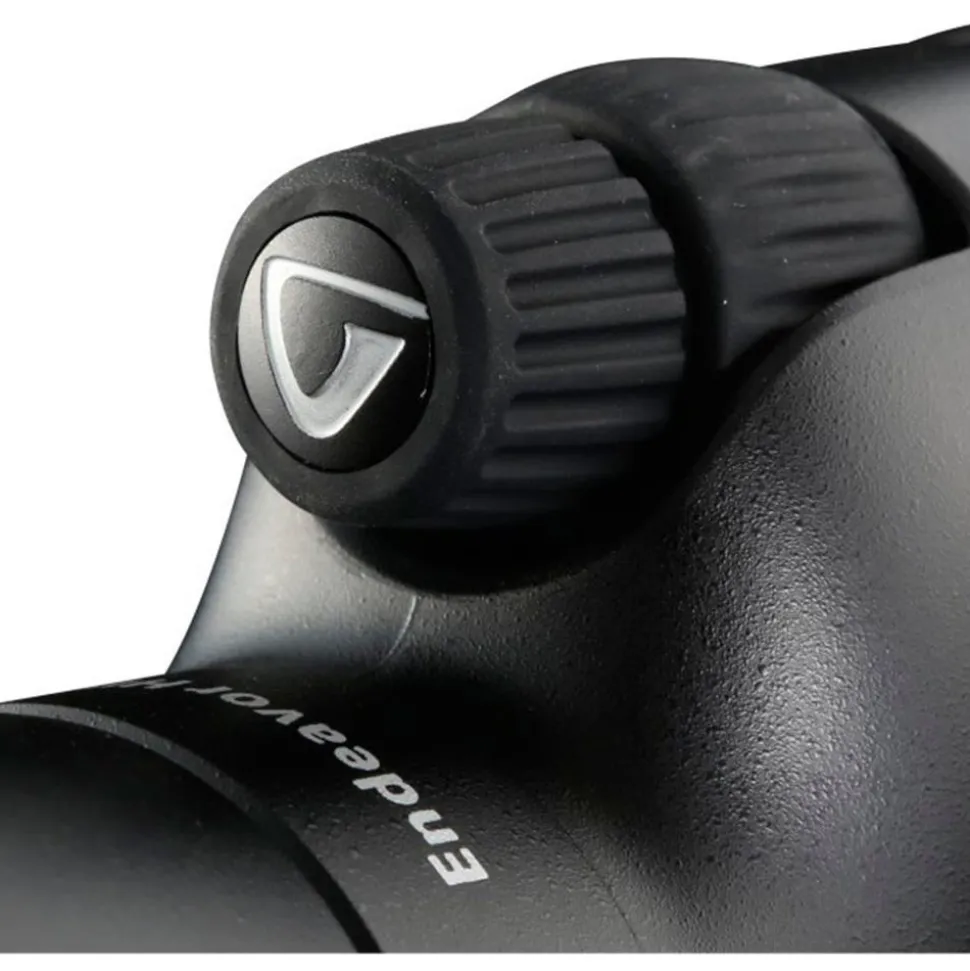

• Separate coarse / fine focus controls

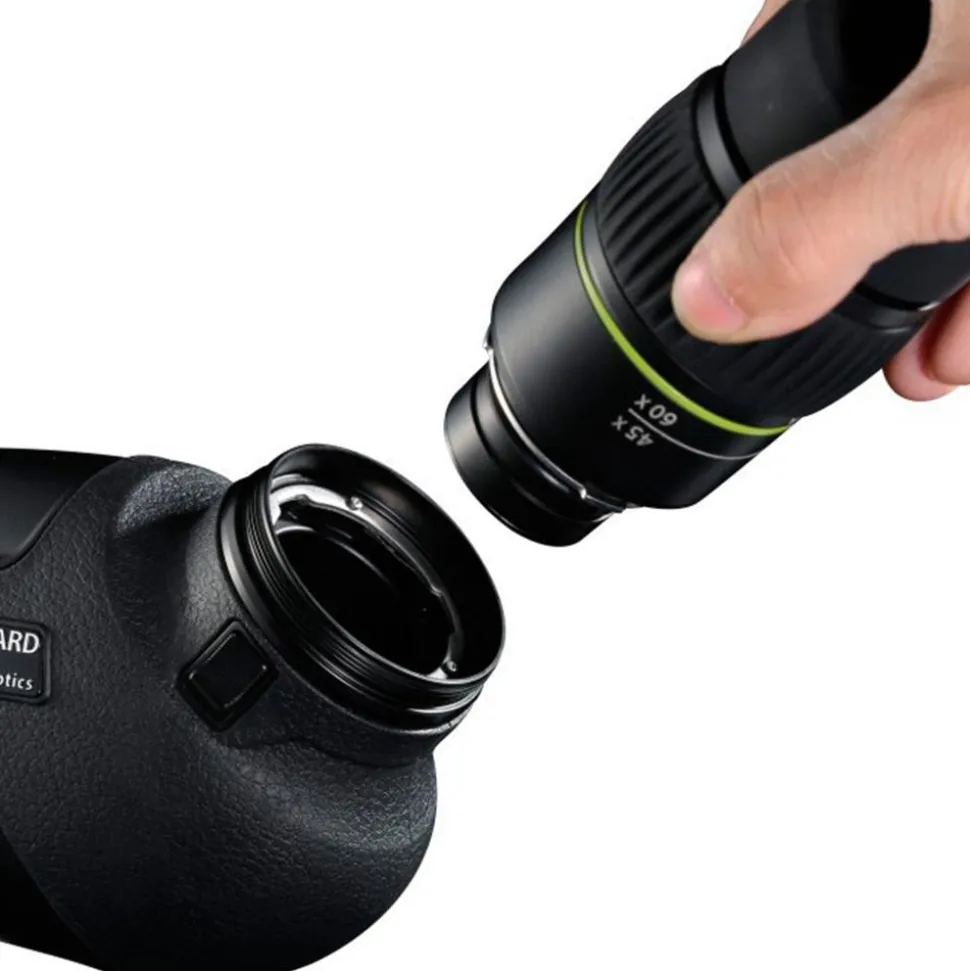

• Interchangeable eyepiece mount
• Tripod mounting foot

Construction Details

• Nitrogen-filled fogproof / waterproof housing
• Magnesium body with textured rubber armor
• Built-in sunshield
