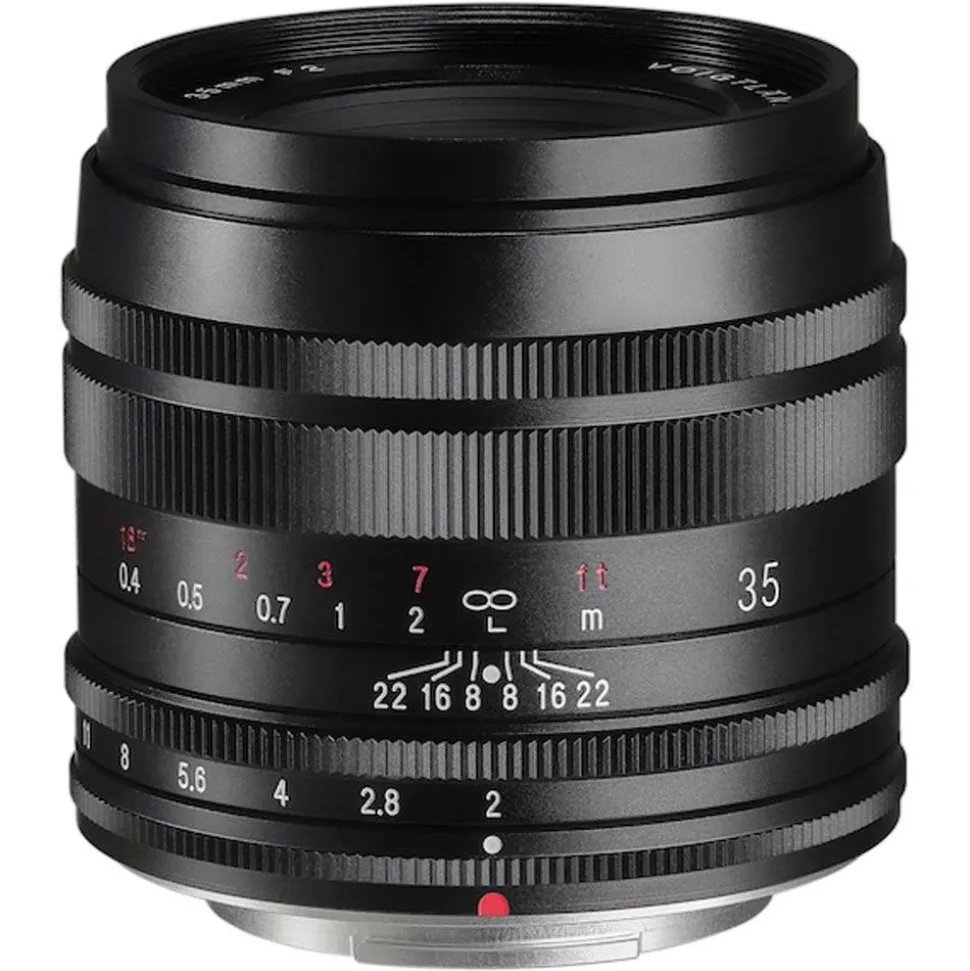

Voigtlander Macro APO-Ultron 35mm f/2 X-mount Lens

The compact Voigtlander Macro APO-Ultron 35mm f/2 X-Mount Lens delivers great results for close-ups and standard shots, a 16.3cm close focus distance and a wide aperture for subject separation and soft backgrounds.



Voigtlander Macro APO-Ultron 35mm f/2 X-Mount Lens Summary

The MACRO APO-ULTRON 35mm F2 X Mount is an interchangeable lens exclusively for the FUJIFILM X mount. It is a manual focus standard macro lens with large aperture covering the APS-C size image circle. This is optimized for the image sensor of FUJIFILM X system cameras.  The lens is also equipped with electronic contacts to ensure reliable communication between the lens and camera body, as provided by FUJIFILM Corporation.

The combination of a lens body that supports electrical communication and the latest firmware enables capturing exif information. Features, such as focus check, and shooting distance-linked display, as well as in-body image stabilization and parallax correction with certain models.  When the camera is attached to a model that does not support electrical contacts, aperture-priority auto shooting is possible by setting the camera’s release without lens to “Permitted”.

The lens configuration consists of nine elements in six groups, with the latest optical system using three elements of abnormal partial-dispersion glass.  In addition to natural color reproduction, without color bleeding because of the apochromatic design, the lens has a maximum aperture of F2, which is an exceptionally large aperture for a macro lens, yet the lens remains compact in size.  For focusing, the lens employs a front-focusing system in which the front four groups of six elements are moved together. This method enables the lens to shorten the extension length which is difficult to achieve within a motor in an auto-focus lens.

The aperture blades consist of 10 elements with a 1/3-step click stop that takes into account the shape of the bokeh. The aperture mechanism uses an aperture ring directly connected to the opening and closing of the aperture blades, similar to the mechanism used in the Voigtländer VM mount and mirrorless mount lenses.  The minimum focusing distance is 16.3 cm (1:2 magnification), and the working distance from the subject is 6 cm with the hood attached.

In addition to the shallow focusing effect in close-up photography, the large bokeh, characteristic of large-aperture macro photography, expands the possibilities for creative image making. Since this lens has image quality that can be used with confidence, regardless of the distance to the subject, it is recommended not only for macro photography, but also for the purpose of a single focal length lens.  A compact, dedicated straight screw-in hood is included.

Features

• Designed exclusively for Fujifilm X mount
• Electronic contacts for communication with the camera body
• All-metal lens barrel for highly rigid and durability
• Manual focus for reliable focusing operation
• Direct mechanical aperture ring operation
• 10-blade iris diaphragm for beautiful bokeh out-of-focus effects
• Maximum magnification of 1:2, minimum focusing distance of 16.3 cm
• Apochromatic design for faithful color reproduction

Macro Apo-Ultron 35mm F2 X-mount

• This product is equipped with electronic contacts, but there are restrictions on the body that can perform electronic communications. Compatible models (X-H1 X-T4 X-S10)
• It is recommended to change the depth of field display to the film standard (the same value as the depth scale engraved on the product) in the body settings.
• If the F / W is less than the stated F / W, the performance may not be exhibited or some functions may be limited, so please use the latest F / W.
• For checking the F / W of the body you are using and obtaining the latest F / W, please check the body instruction manual.
• When using with a model that does not support electronic communications, change the body setting [Release without lens] to “Allow”.
• When using with X-T2, it is possible to display with aperture number by changing the aperture value display setting from TNo to FNo in the settings.

Voigtlander Macro APO-Ultron 35mm f/2 X-Mount Lens Specifications

Focal length	35mm (full size conversion : 52.5mm)
Maximum aperture	1:2
Minimum aperture	F22
Lens configuration	9 elements in 6 groups
Angle of view	42.8 °
Number of diaphragm blades	10
Shortest shooting distance	16.3cm
Maximum shooting magnification	1:2
Maximum diameter x total length	φ60.7 x 54.8 mm
Filter size	φ49mm
Weight	265g
Lens hood	Dedicated screw-in hood included
Aperture ring	Equipped (manual aperture)
Electronic contacts	Available (* 1 * 2 * 3)
Exif information	Correspondence
Focus check	Correspondence
Parallax correction	Correspondence (X-Pro3)
In-body image stabilization	Compatible (limited models)
	Compatible models (X-H1 X-T4 X-S10)
Shooting distance interlocking display	Correspondence
