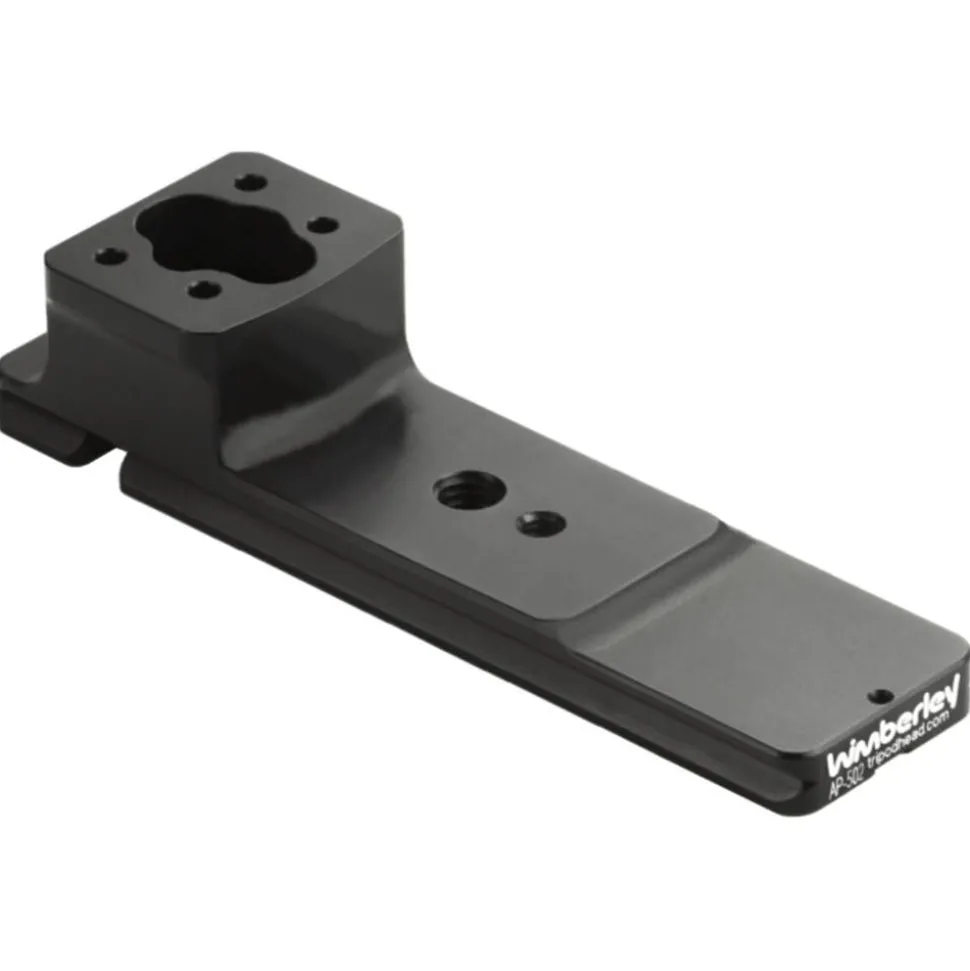

Wimberley AP-502 Lens Replacement Foot

Low Profile Replacement Foot for Nikon Lenses



The AP-502 replaces the stock foot on Nikon Lenses.

The AP-502 is precision machined to slide right into an Arca-Swiss style quick-release clamp.

It also has 1/4″ and 3/8″ tapped holes for mounting to non-quick-release tripod heads and monopods.

All replacement feet feature the same dual safety stops and flash bracket compatibility as our lens plates.

For use on the following Lenses :

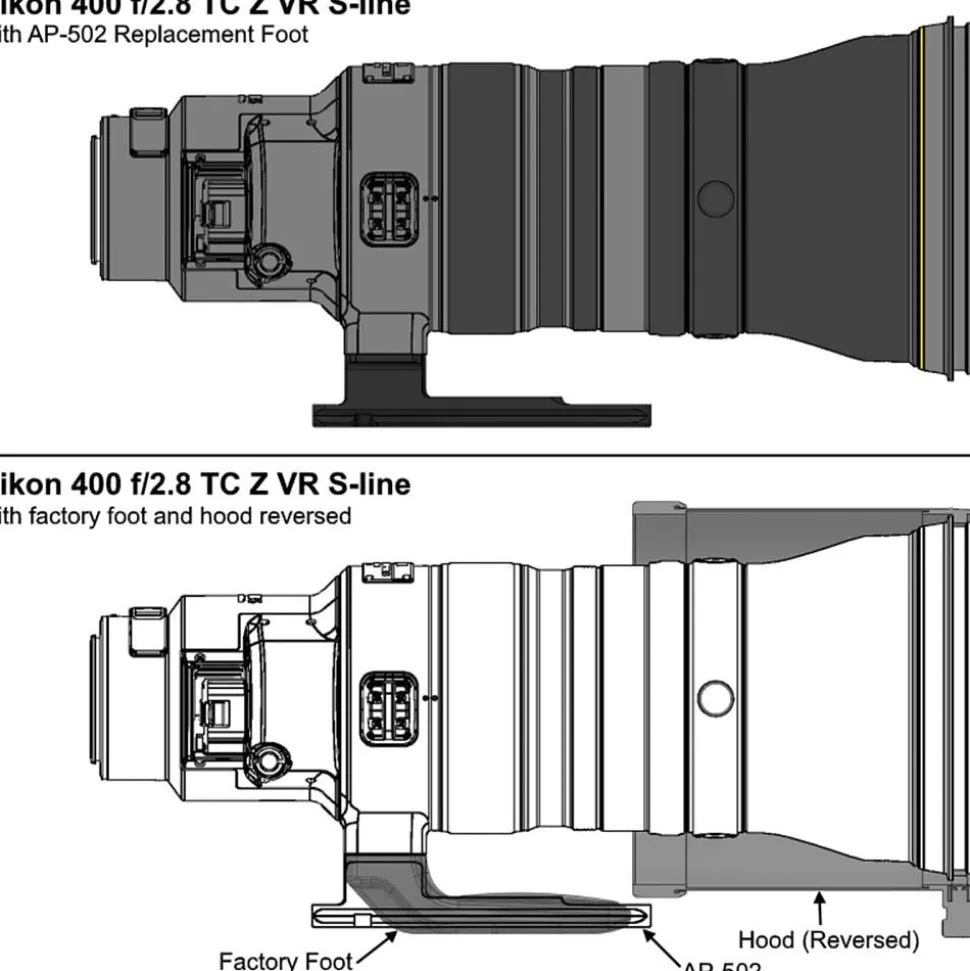

•     400 f/2.8 TC Z VR S

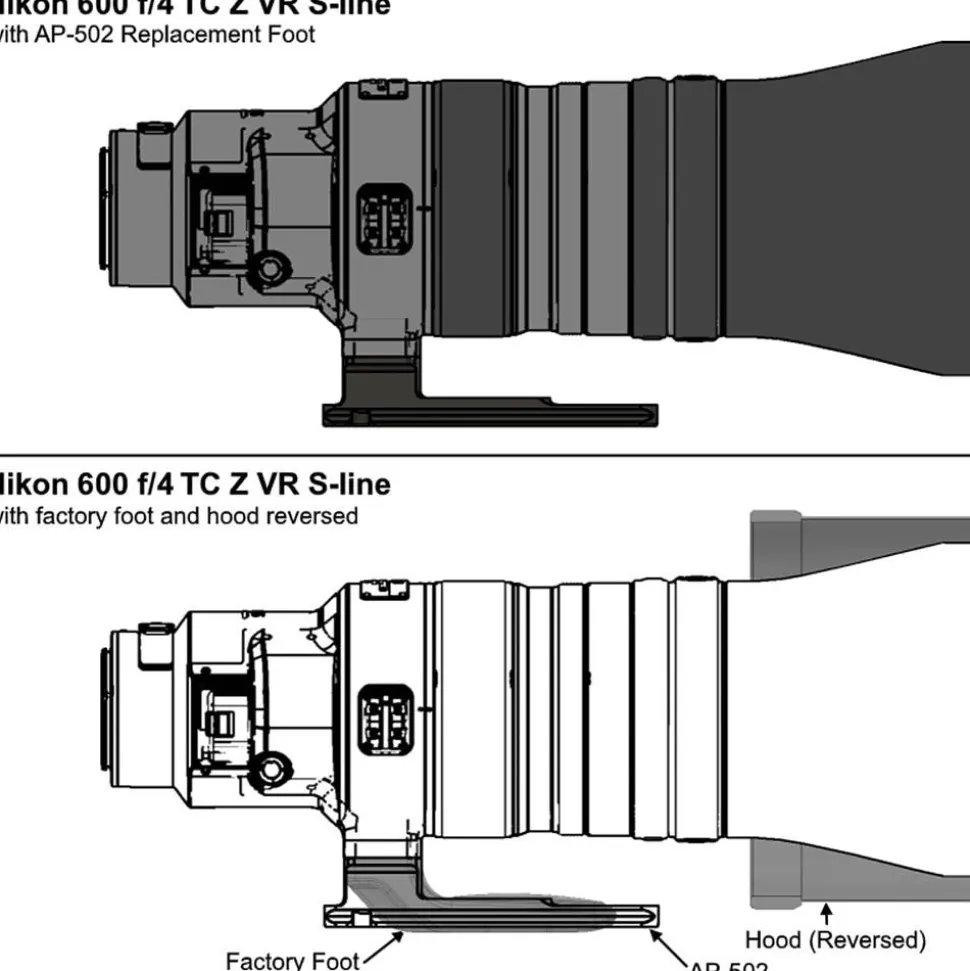

•     600 f/4 TC Z VR S

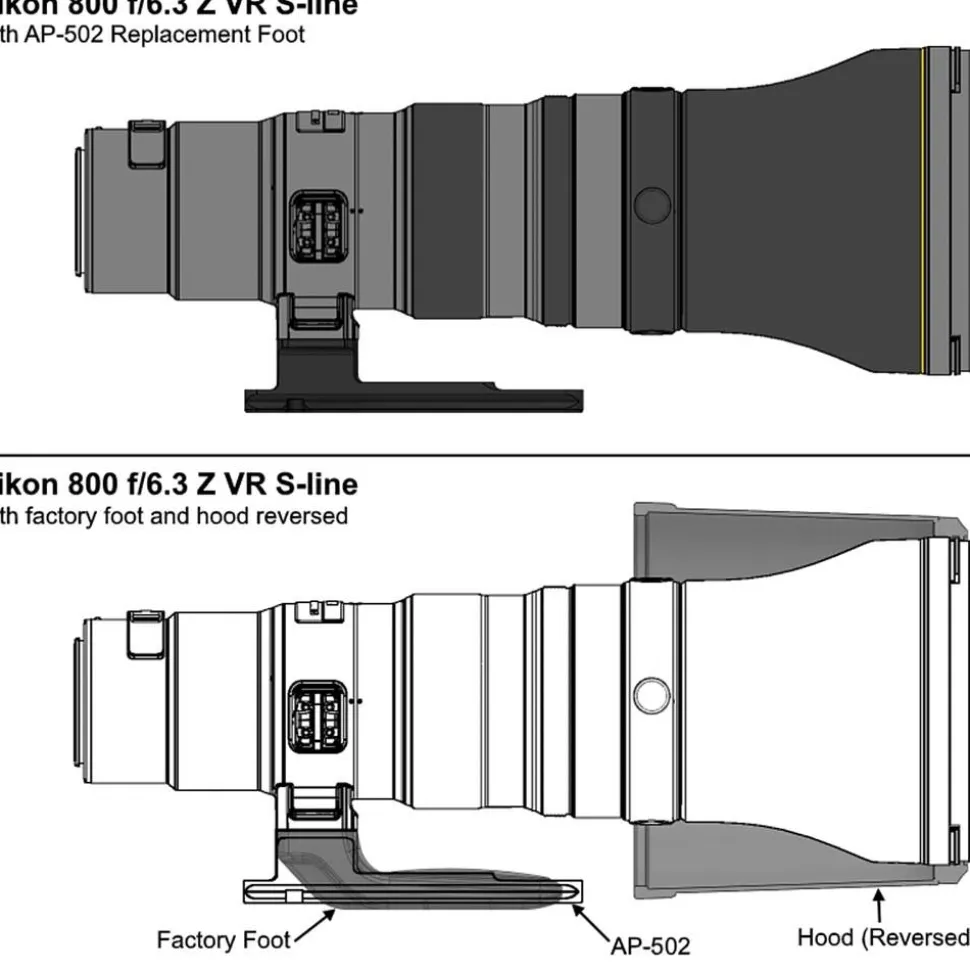

•     800 f/6.3 Z VR S

What’s Included :

• AP-502 Arca-Swiss Style replacement lens foot (Qty 1)
• Mounting Screws – M4 x 10mm Socket Cap Screw (Qty 4)
• Safety Stop Screws – M3 x 6mm Socket Head Cap Screw (Qty 2)
• Hex Key – 3mm T-Handle (Qty 1)
• Hex Key – 2.5mm (Qty 1)


Dimensions (Overall L x W x H): 5.6 x 1.6 x 1.2 in
Weight: 5.7 Oz (plate, mounting screw, safety-stop screws)
Materials: Anodised 6061 Aluminium, Stainless Steel
