Zoom ZSG-1 Camera Shotgun Microphone

Zoom ZSG-1 On-Camera Shotgun Microphone



Zoom ZSG-1 Camera Shotgun Microphone Summary

The ZSG-1 is an on-camera shotgun microphone designed for creators to elevate their audio. It’s lightweight and highly directional, providing great sound in a variety of content capture scenarios.

THE MIC FOR ANY RIG

CAMERA READY

For creators on-the-move, the lightweight ZSG-1 mounts to your camera’s hot shoe. Use the included 3.5 mm (about 0.14 in) cable to connect to your camera and record high-quality audio directly to your video.

PHONE READY, TOO

Phone cameras are great for 4K video, but the on-board microphones leave a lot to be desired. This shotgun mic will give you great sound, instantly elevating the quality of your social content and mobile videos.

OFF-CAMERA

The ZSG-1 can be used off-camera, with a boom pole or pistol grip. Plugged into a recorder, it’s a dynamic solution for capturing audio on location.

FOCUSED SOUND

With off-axis rejection and a tailored frequency response, the mono ZSG-1 is designed for highly directional audio, minimizing background noise. This is perfect for recording dialogue and creating sound effects.

DESIGNED FOR ACTION

FEATHERWEIGHT CONSTRUCTION

Weighing just 3.3 ounces, the ZSG-1 keeps your rig light, helping you to be as mobile as possible.

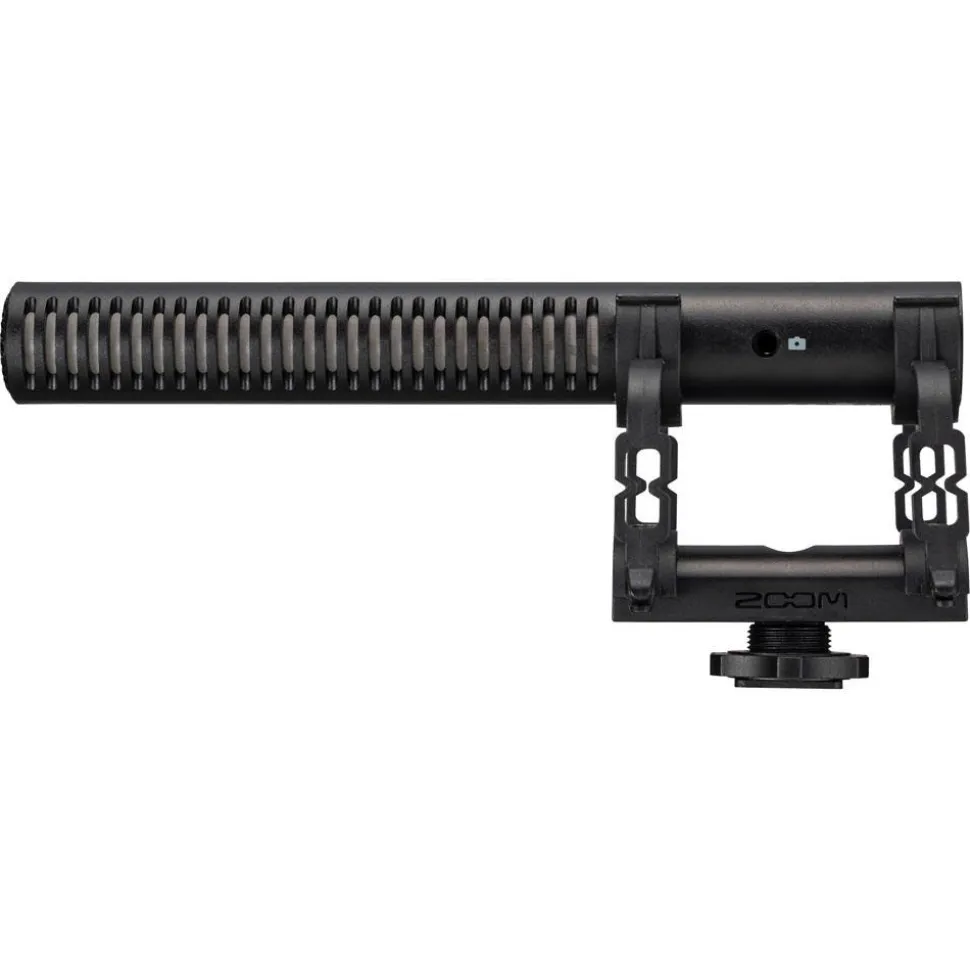

SHOCK MOUNT

Included with the ZSG-1 is a specially designed shock mount made to reduce handling noise and vibration.

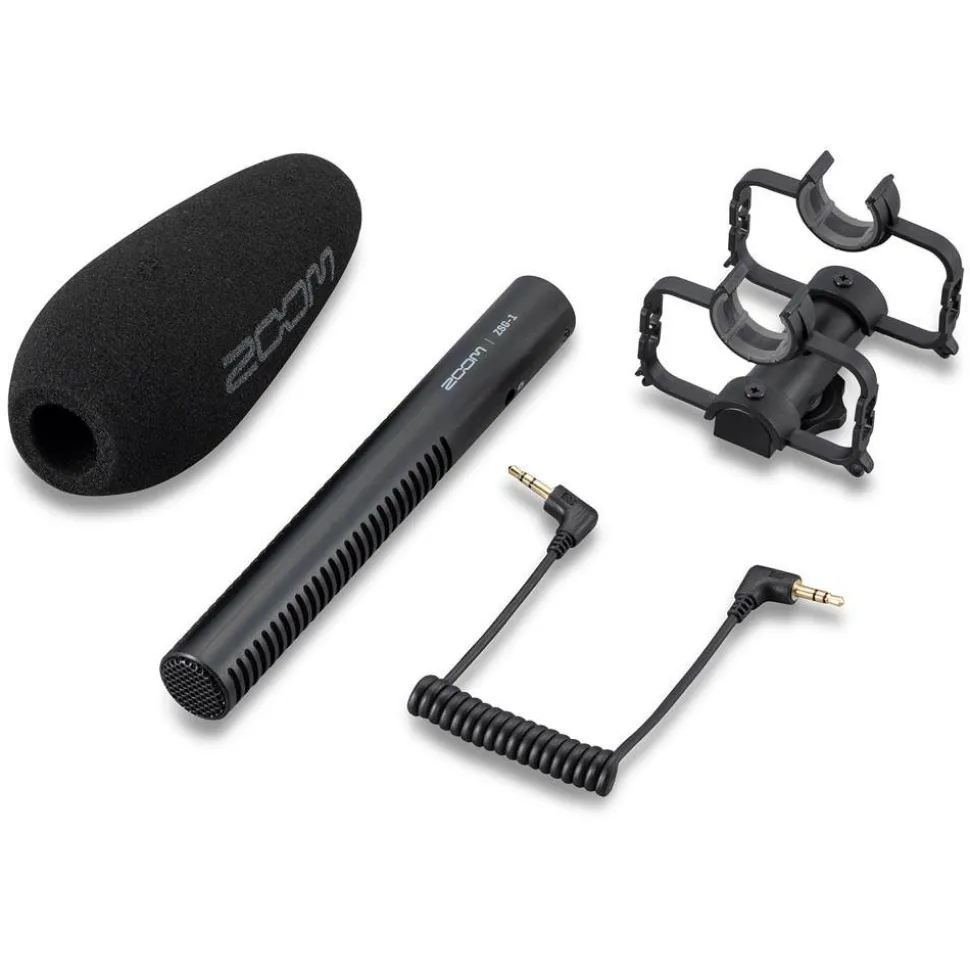

READY TO ROLL

The ZSG-1 comes with everything you need:

• ZSG-1 Shotgun Microphone
• SMM-3 Shock Mount
• WSM-3 Windscreen
• 3.5 mm stereo mini cable

SPECIFICATIONS

• MIC TYPE: Back electret condenser
• POLAR PATTERN: Super-cardioid
• DIAPHRAGM: Ф 14 mm
• FREQUENCY RANGE: 50 Hz – 20 kHz
• SENSITIVITY: -31 ± 2 dBV/Pa
• MAXIMUM SPL: Max. 118 dB SPL (THD ≦ 1%, 1 KHz)
• EIN LEVEL: < 24 dB SPL (A-weighted)
• S/N RATIO: 70 dB
• OUTPUT IMPEDANCE: 2.2 KΩ
• OUTPUT CONNECTOR: Stereo mini
• POWER SUPPLY: Plug-in power (2 – 5 V)
• DIMENSIONS: Φ 22.6 mm × 177 mm
• WEIGHT: 40g
